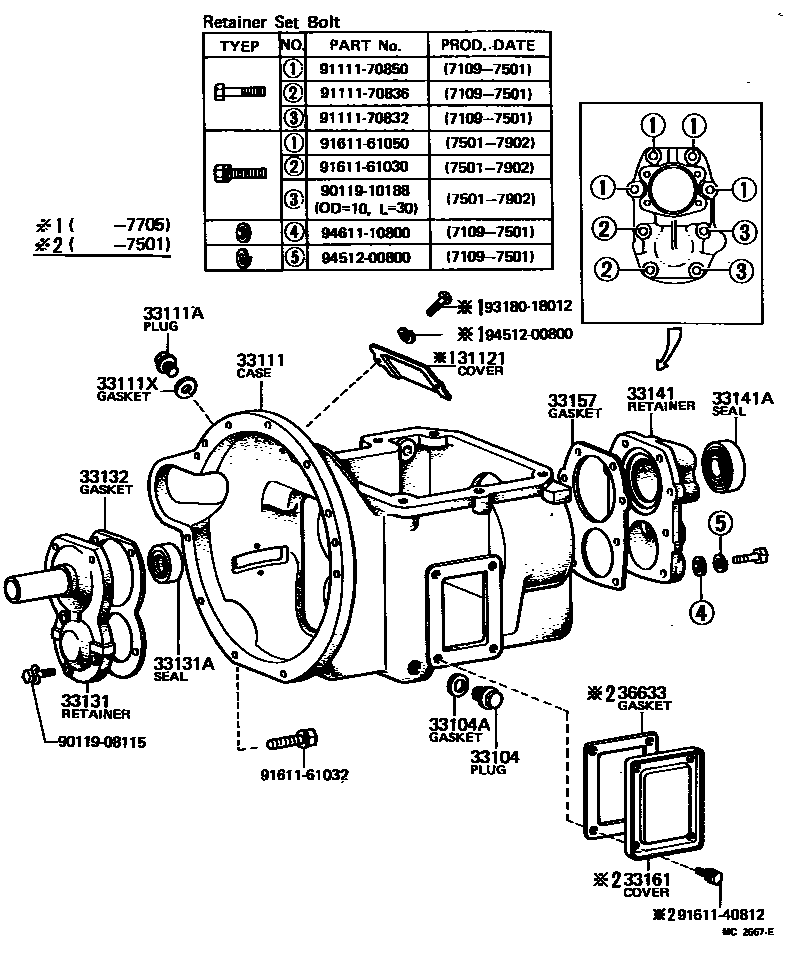

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31121COVER, CLUTCH HOUSING, NO.1

main31121-25010iRY10,12197410-197705

main31121-35010iRY1#197109-197410

main31121-36010iJY16197207-197902

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iJY16197207-197902

main90341-18081iRY1#197109-197902

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iJY16,RY1#197109-197902

33111CASE, MANUAL TRANSMISSION

main33111-25030iRY1#197501-197902

main33111-35010iRY10,12197109-197501

main33111-36010iRY16197207-197501

sub33111-25040

sub91611-41035

sub91611-61032

main33111-36040iJY16197207-197208

main33111-36041iJY16197208-197509

main33111-36042iJY16197509-197901

main33111-36043iJY16197901-197902

sub33101-36021

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iJY16,RY1#197109-197902

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iJY16,RY1#197109-197902

33131RETAINER, BEARING, FRONT(MTM)

main33131-35010iRY1#197109-197501

main33131-35011iRY1#197501-197902

main33131-36020iJY16197207-197208

main33131-36021iJY16197208-197509

main33131-36022iJY16197509-197902

sub33131-36023

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-25001iRY1#197109-197308

main90311-25141iRY1#197308-197501

sub90311-25003

main90311-28003iRY1#197501-197506

main90311-28004iRY1#197506-197902

main90311-32106iJY16197207-197902

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-35010iRY1#197109-197902

sub33132-25010

main33132-36020iJY16197207-197208

main33132-36021iJY16197208-197509

main33132-36022iJY16197509-197902

33141RETAINER, TRANSMISSION BEARING, REAR

main33141-35020iRY1#197109-197501

main33141-35021iRY1#197501-197902

main33141-36030iJY16197207-197708

main33141-36060iJY16197708-197902

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-38093iRY1#197109-197902

main90311-45018iJY16197207-197902

sub90311-45001

33157GASKET, TRANSMISSION CASE, NO.2

main33142-35010iRY1#197109-197501

main33142-35011iRY1#197501-197902

main33142-36020iJY16197207-197902

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-35010iRY1#197109-197501

main33161-36010iJY16197207-197902

36633GASKET, POWER TAKE-OFF

main33162-35010iRY1#197109-197501

main33162-36010iJY16197207-197504

sub33162-96300

main33162-36020iJY16197504-197902

9011908115

main90119-08115

9011910188

main90119-10188

9111170832

main91111-70832

9111170836

main91111-70836

9111170850

main91111-70850

9161140812

main91611-40812

9161161030

main91611-61030

9161161032

main91611-61032

9161161050

main91611-61050

9318018012

main93180-18012

9451200800

main94512-00800

9461110800

main94611-10800

26 parts on this diagram · 3 diagrams in section
