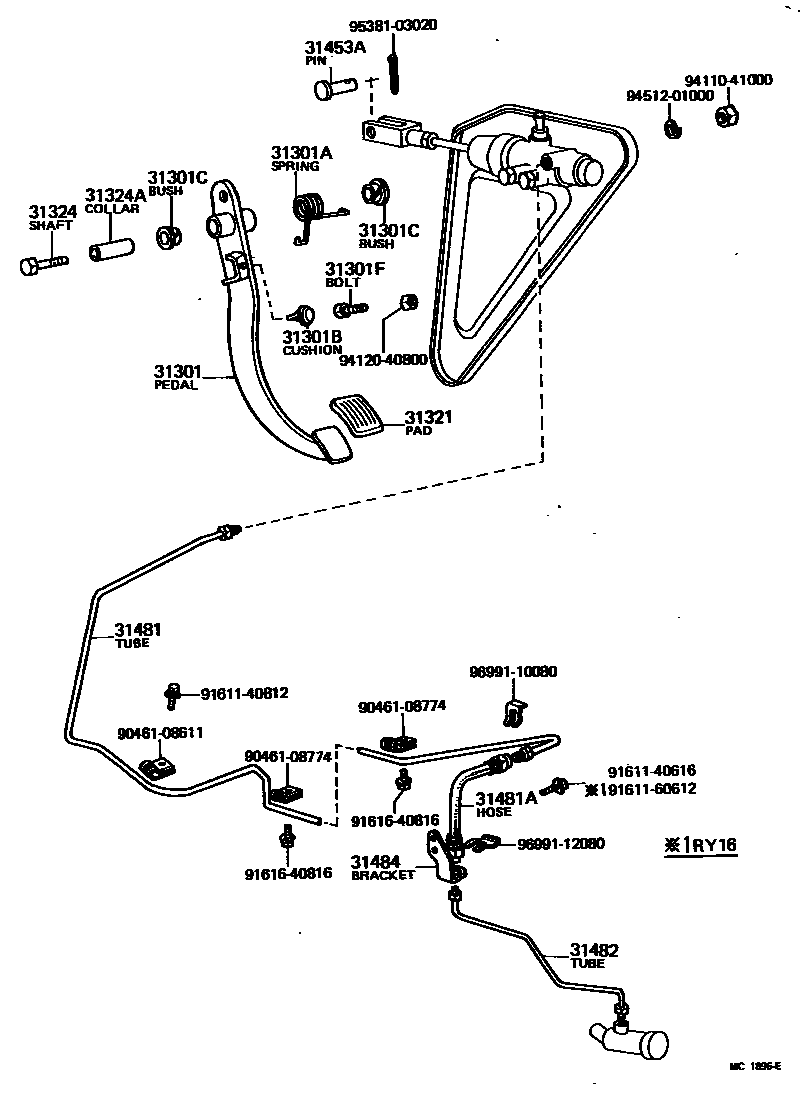

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-25010iJY16,RY1#197109-197902

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35131iJY16,RY1#197109-197902

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iJY16,RY1#197109-197902

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iJY16,RY1#197109-197902

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91131-50835iJY16,RY16197207-197902

8-1.25PX35-34

main91131-50836iRY10,12197109-197902

8-1.25PX36-34

31321PAD, CLUTCH PEDAL

main31321-25020iJY16,RY1#197109-197902

31324SHAFT, CLUTCH PEDAL

main91111-51080iJY16,RY1#197109-197902

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iJY16,RY1#197109-197902

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-10015iJY16,RY1#197109-197902

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-25040iRY1#..RHD197109-197207

main31481-25060iJY16,RY1#..LHD197109-197902

main31481-25070iRY1#..RHD197207-197902

main31481-25080iJY16..RHD197207-197902

31481AHOSE, CLUTCH, NO.1

main90947-02173iRY1#197109-197902

L=280

main96932-31382iJY16197207-197502

L=380

main96932-31384iJY16197502-197902

L=380

main96932-33804iJY16197902-197902

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-25010iRY10,12197109-197902

main31482-25020iJY16197207-197708

main31482-25021iJY16197708-197902

main31482-25030iRY16197207-197902

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-26030iRY16197207-197902

main31484-35040iRY10,12197109-197902

main31487-25020iJY16197207-197708

main31487-25021iJY16197708-197902

9046108611

main90461-08611

9046108774

main90461-08774

9161140616

main91611-40616

9161140812

main91611-40812

9161160612

main91611-60612

9161640816

main91616-40816

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

9538103020

main95381-03020

9699110080

main96991-10080

9699112080

main96991-12080

25 parts on this diagram · 4 diagrams in section
