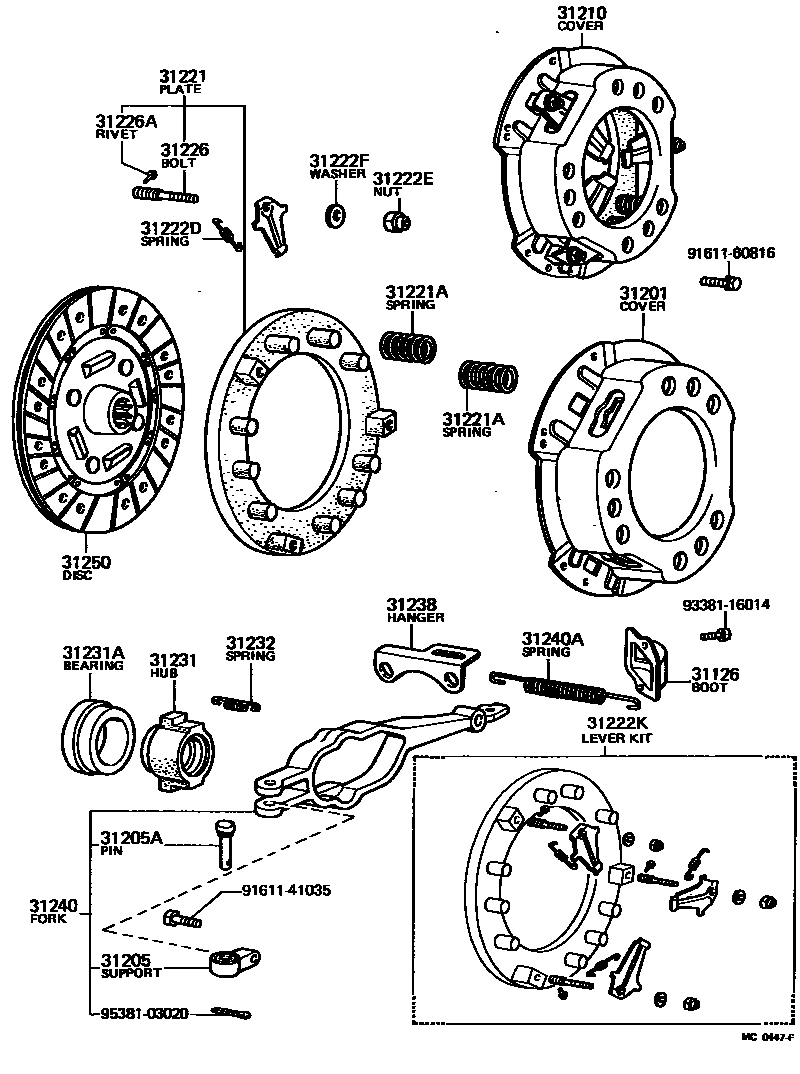

CLUTCH & RELEASE FORK

0001 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-36010iJY16197207-197902

main31126-36020iRY1#197109-197902

31201COVER SUB-ASSY, CLUTCH

main31201-29075iJY16197501-197902

main31201-36010iRY1#197109-197110

main31201-36020iRY1#197110-197511

main31201-39045iRY1#197511-197902

main31211-36032iJY16197207-197501

31205SUPPORT SUB-ASSY, RELEASE FORK

main31205-30010iRY1#197109-197902

31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)

main90245-10072iRY1#197109-197902

31210COVER ASSY, CLUTCH

main31210-25030iRY10,12197110-197305

main31210-26010iRY10,12197305-197511

main31210-35011iRY1#197109-197110

main31210-35040iRY10,12197511-197902

main31210-36025iJY16197207-197501

main31210-36026iJY16197501-197902

main31210-36033iRY16197207-197902

31221PLATE, CLUTCH PRESSURE

main31202-26010iRY10,12197305-197511

main31202-36010iRY10,12197109-197305

main31202-36022iJY16197207-197501

main31202-36031iRY16197207-197902

main31221-39045iRY10,12197511-197902

main31221-39055iJY16197501-197902

31221ASPRING, COMPRESSION(FOR CLUTCH)

main90501-38611×3iRY16197207-197902

WD=3.8,CW=26.8

main90501-40612×6iRY16197511-197902

WD=4.0,CW=27.0

31222DSPRING, TENSION(FOR CLUTCH PRESSURE LEVER)

main90506-10022×3iRY1#197109-197511

main90508-26263×3iJY16197207-197501

31222ENUT(FOR CLUTCH PRESSURE LEVER ADJUST)

main90179-08023×3iRY10,12197109-197305

main90179-10111×3iRY16197207-197305

main90179-12082×3iJY16197207-197501

31222FWASHER(FOR CLUTCH PRESSURE LEVER)

main90201-08058×3iRY10,12197109-197305

main90201-10429×3iRY16197207-197305

31222KLEVER KIT, CLUTCH PRESSURE

main04315-35010iRY10,12197109-197305

main04315-36011iJY16197207-197501

main04315-36021iRY1#197305-197511

31226BOLT, CLUTCH PRESSURE PLATE

main31226-36012×3iJY16197207-197501

main31226-36020×3iRY10,12197109-197305

main90114-10088×3iRY1#197305-197511

31226ARIVET OR PIN(FOR CLUTCH PRESSURE PLATE BOLT LOCK)

main90250-06092×3iJY16197207-197501

main90260-03006×3iRY10,12197109-197305

31231HUB, CLUTCH RELEASE BEARING

main31231-30010iRY1#197109-197501

main31231-35010iRY16197511-197902

main31231-35020iRY10,12197511-197902

main31231-36011iJY16197207-197501

main31231-36050iJY16197501-197902

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-38013iRY1#197109-197501

main90363-40003iJY16,RY10,12197512-197902

main90363-40061iRY16197511-197902

main90363-40078iJY16197501-197511

main90363-45015iJY16197207-197305

main90363-45079iJY16197305-197501

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010×2iRY16197511-197902

main31232-30010×2iJY16197207-197511

main90506-14026iRY1#197109-197501

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-35011iRY1#197109-197902

31240FORK ASSY, CLUTCH RELEASE

main31204-36011iJY16197207-197708

main31204-36040iJY16197708-197902

main31240-35010iRY1#197501-197902

main31240-36011iRY1#197109-197501

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16282iRY1#197109-197902

main90506-16297iJY16197207-197902

31250DISC ASSY, CLUTCH

main31250-25010iRY10,12197305-197501

main31250-25050iRY16197801-197902

main31250-26021iRY10,12197109-197305

main31250-26040iRY10,12197501-197902

main31250-35020iRY16197501-197801

main31250-36051iRY16197207-197501

main31250-36062iJY16197207-197211

main31250-36063iJY16197211-197501

main31250-36064iJY16197501-197802

main31250-36065iJY16197802-197902

9161141035

main91611-41035

9161160816

main91611-60816

9338116014

main93381-16014

9538103020

main95381-03020
