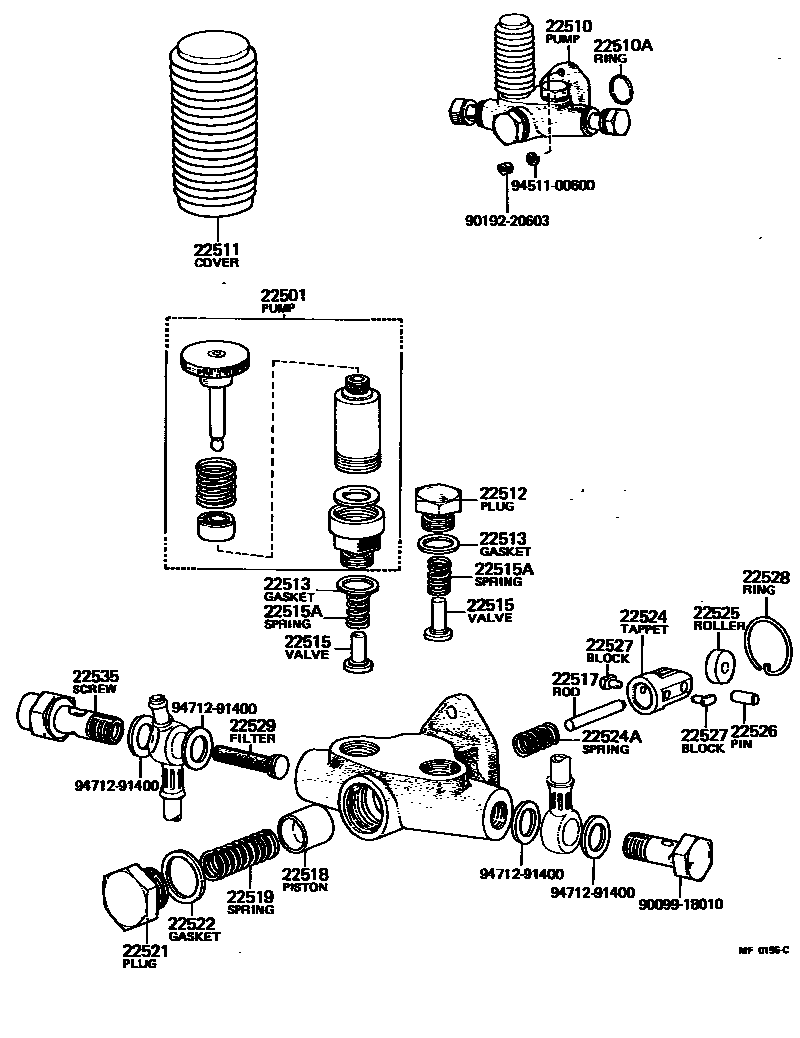

FUEL FEED PUMP

0001 1 0002 1

22501PUMP SUB-ASSY, PRIMING

main22501-77020i2J..JY16197207-197902

22510PUMP ASSY, FUEL FEED

main22510-48010i2J..JY16197207-197708

main22510-77130i2J..JY16197708-197902

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14015i2J..JY16197207-197902

22511COVER, PRIMING PUMP

main22511-77020i2J..JY16197207-197902

22512PLUG, FEED PUMP CHECK VALVE CHAMBER

main22512-77020i2J..JY16197207-197902

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2i2J..JY16197207-197902

22515VALVE, FEED PUMP CHECK

main22515-77020×2i2J..JY16197207-197902

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2i2J..JY16197207-197902

22517ROD, FEED PUMP PUSH

main22517-77020i2J..JY16197207-197708

22518PISTON, FEED PUMP

main22518-77020i2J..JY16197207-197902

BLUE

22519SPRING, FEED PUMP PISTON

main22519-48010i2J..JY16197708-197902

main90501-23132i2J..JY16197207-197708

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77020i2J..JY16197207-197902

22522GASKET, FEED PUMP PISTON PLUG

main22522-77020i2J..JY16197207-197902

22524TAPPET, FEED PUMP

main22524-77010i2J..JY16197708-197902

main22524-77021i2J..JY16197207-197708

22524ASPRING, FEED PUMP TAPPET

main90501-10125i2J..JY16197207-197708

22525ROLLER, FEED PUMP TAPPET

main22525-77020i2J..JY16197207-197902

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i2J..JY16197207-197902

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2i2J..JY16197708-197902

main22527-77021×2i2J..JY16197207-197708

22528RING, FEED PUMP TAPPET SNAP

main22528-77020i2J..JY16197207-197902

22529FILTER, FUEL PUMP

main22529-67010i2J..JY16197708-197902

main22529-76010i2J..JY16197207-197708

22535SCREW, FUEL PIPE FOLLOW

main22535-46010i2J..JY16197207-197902

9009918010

main90099-18010

9019220603

main90192-20603

9451100600

main94511-00600

9471291400

main94712-91400

25 parts on this diagram · 2 diagrams in section
