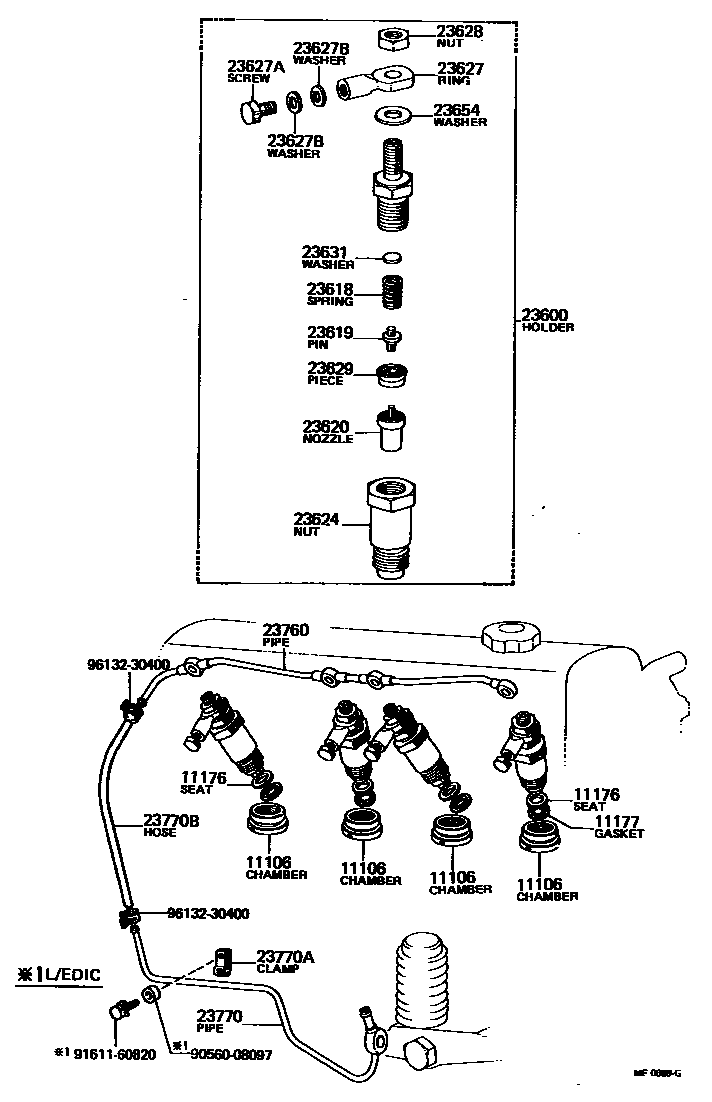

INJECTION NOZZLE
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
23624NUT, NOZZLE RETAINING
23627RING, PACKING, NO.1(FOR NOZZLE)
23627ASCREW, FOLLOW(FOR NOZZLE)
23627BWASHER, COPPER PLATE(FOR NOZZLE)
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.000,T=1.00
T=1.050,T=1.05
T=1.100,T=1.10
T=1.150,T=1.15
T=1.200,T=1.20
T=1.250,T=1.25
T=1.300,T=1.30
T=1.350,T=1.35
T=1.400,T=1.40
T=1.450,T=1.45
T=1.500,T=1.50
T=1.550,T=1.55
T=1.600,T=1.60
T=1.650,T=1.65
T=1.700,T=1.70
T=1.750,T=1.75
T=1.800,T=1.80
T=1.850,T=1.85
T=1.900,T=1.90
T=1.950,T=1.95
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)
23770BHOSE, FUEL
9056008097
main90560-08097
9161160820
main91611-60820
9613230400
main96132-30400
22 parts on this diagram · 1 diagram in section
