CARBURETOR ASSEMBLY

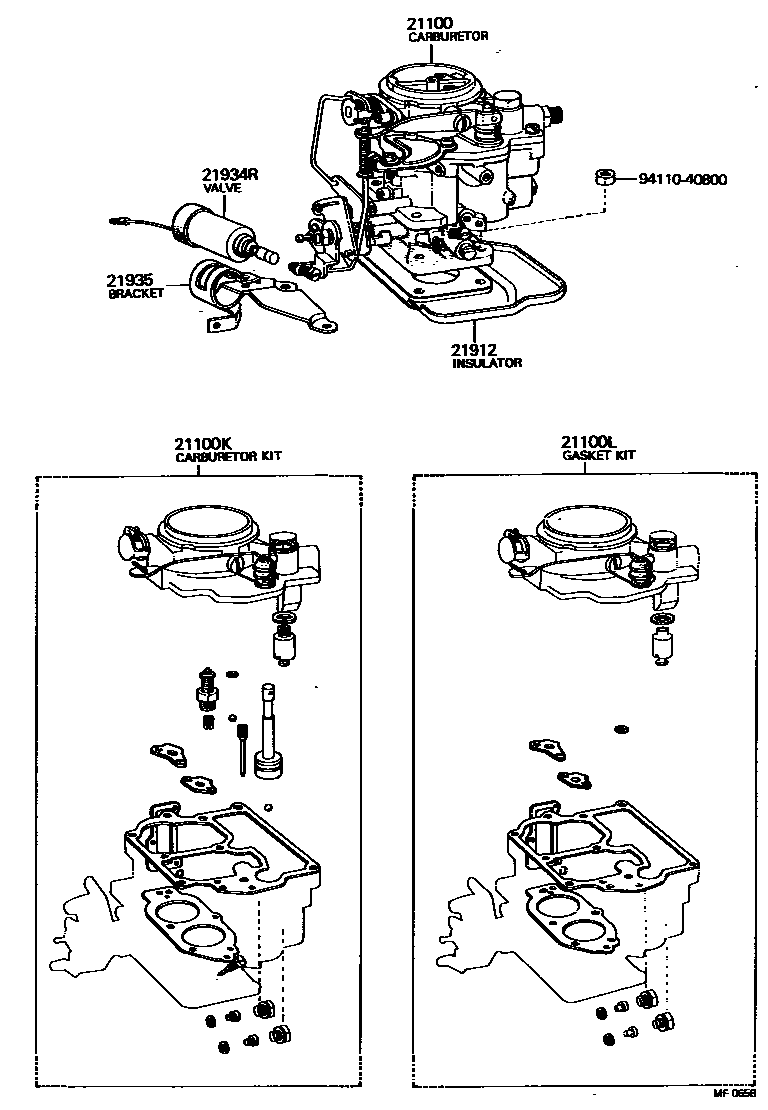

Parts diagram

21100CARBURETOR ASSY

main21100-31200i197109-197206

main21100-31201i197206-197303

main21100-31241i197303-197309

main21100-31290i197309-197511

main21100-31291i197511-197902

main21100-44054i197207-197309

main21100-44122i197309-197512

main21100-44123i197512-197708

main21100-44220i197701-197708

AUSTRALIA

main21100-44270i197708-197902

21100KCARBURETOR KIT

main04211-31110i197109-197206

main04211-31111i197206-197309

main04211-31130i197309-197511

main04211-31170i197511-197612

main04211-31250i197612-197902

main04211-44042i197207-197309

main04211-44051i197309-197708

main04211-44080i197701-197708

AUSTRALIA

main04211-44090i197708-197902

21100LGASKET KIT, CARBURETOR

main04212-31050i197309-197511

main04212-31060i197511-197902

main04212-33021i197109-197206

main04212-33022i197206-197309

main04212-44020i197207-197309

main04212-44030i197309-197512

main04212-44040i197512-197902

21912INSULATOR, CARBURETOR HEAT

main21912-31030i197109-197309

main21912-31040i197309-197511

main21912-31041i197511-197808

main21912-31060i197808-197902

main21912-44010i197207-197308

main21912-44030i197308-197902

21934RVALVE, SOLENOID THROTTLE

main21934-31010i197109-197309

21935BRACKET, THROTTLE VALVE SOLENOID

main21935-31010i197109-197110

main21935-31011i197110-197309

9411040800

main94110-40800

7 parts on this diagram · 4 diagrams in section
