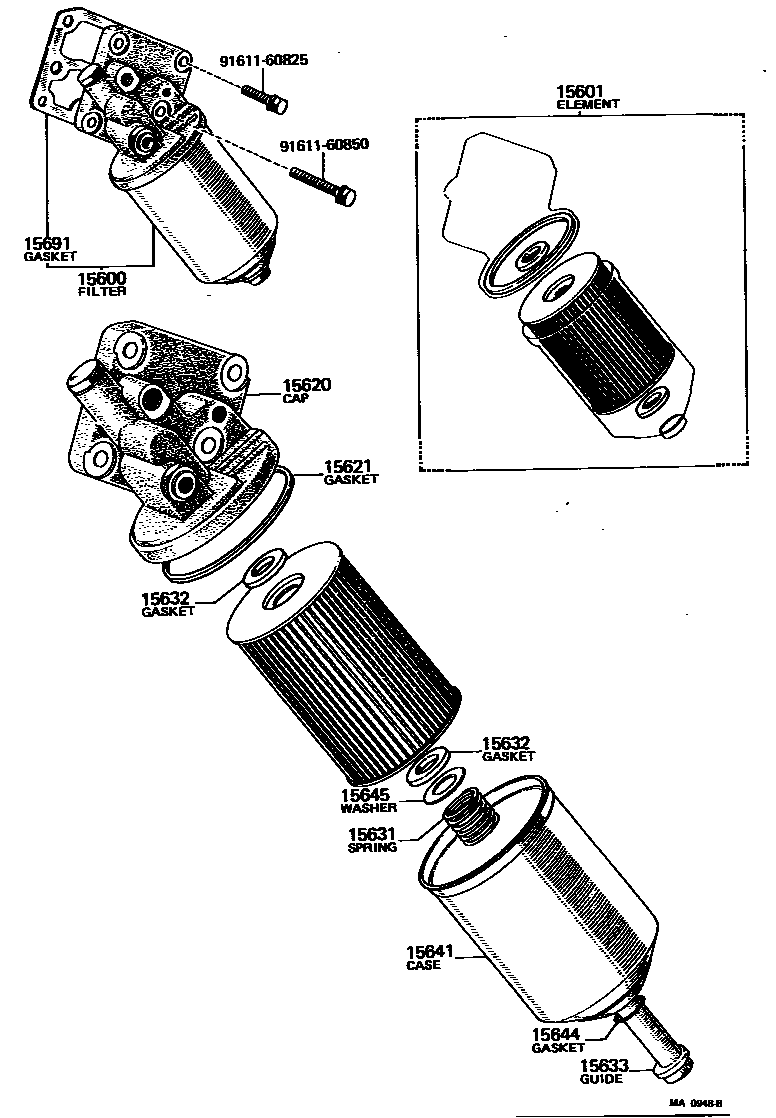

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

15600FILTER ASSY, OIL

main15600-39015i12R..RY10,12197109-197808

sub15601-33020

sub15609-31030

sub15691-31010

main15600-49057i2J..JY16197207-197308

15601FILTER SUB-ASSY, OIL

main04152-31011i12R..RY10,12197109-197808

main04152-46010i2J..JY16197207-197308

sub04152-46011

main15600-25010i5R..RY16197708-197902

sub90915-20003

main15600-41010i2J..JY16197308-197902

sub90915-40002

main15601-33020i12R..RY10,12197808-197902

sub15601-33021

main15601-44010i5R..RY16197207-197708

sub15601-44011

15620CAP ASSY, OIL FILTER

main15620-31012i12R..RY10,12197109-197808

main15620-48022i2J..JY16197207-197308

15621GASKET, OIL FILTER BODY

main15621-31011i12R..RY10,12197109-197808

main15621-41010i2J..JY16197207-197902

main15621-60030i2J..JY16197207-197308

15631SPRING, OIL FILTER ELEMENT SUPPORT

main15631-21010i2J..JY16197109-197808

15632GASKET, OIL FILTER ELEMENT

main15632-40020i12R..RY10,12197109-197808

15633GUIDE, OIL FILTER CARTRIDGE

main15633-21011i12R..RY10,12197109-197808

main15633-48010i2J..JY16197207-197308

sub15633-47040

15641CASE, OIL FILTER

main15641-31012i12R..RY10,12197109-197808

main15641-48010i2J..JY16197207-197308

sub15641-47020

15644GASKET, OIL FILTER CARTRIDGE GUIDE

main15644-60010i12R..RY10,12197109-197808

15645WASHER, OIL FILTER CARTRIDGE GUIDE

main90099-01093i2J..JY16197109-197808

15691GASKET, OIL FILTER

main15691-31010i12R..RY10,12197109-197902

sub15691-31011

main15691-40010i5R..RY16197207-197404

sub15691-40011

main15691-40011i5R..RY16197404-197902

sub15691-40012

main15691-48020i2J..JY16197207-197804

sub15691-48021

main15691-48021i2J..JY16197804-197902

sub15691-48022

9161160825

main91611-60825

9161160850

main91611-60850

13 parts on this diagram · 5 diagrams in section
