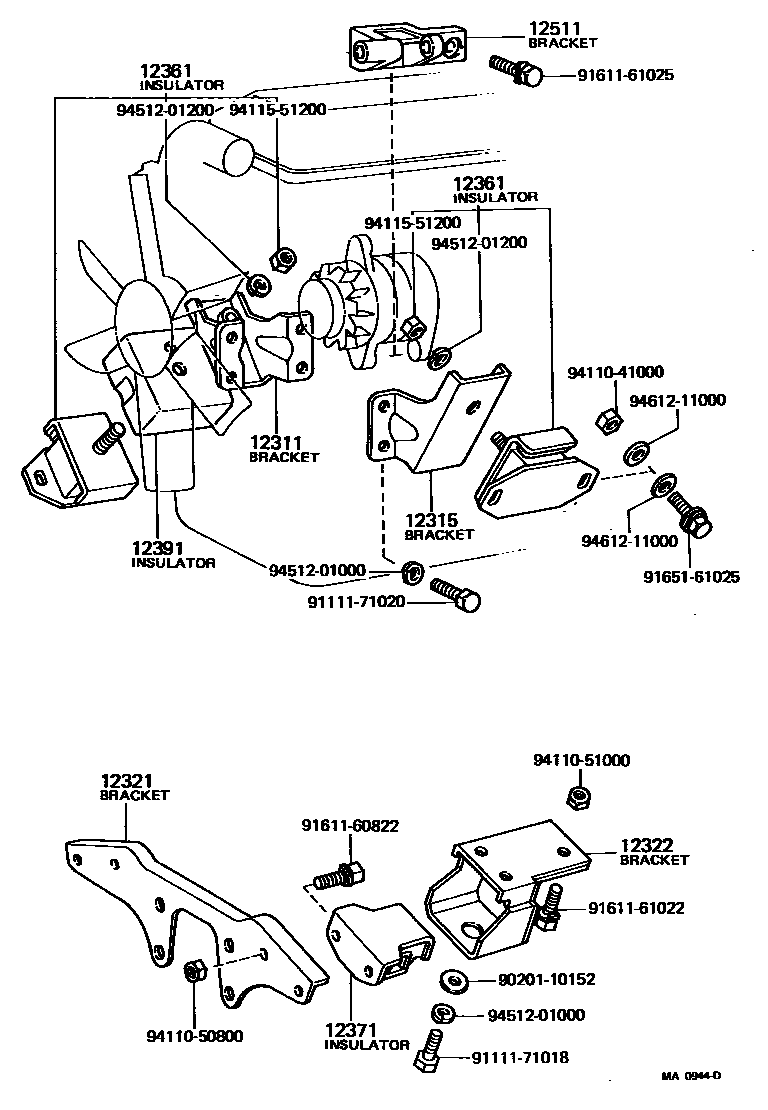

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30010i12R..RY10,12197109-197902

main12311-40010i5R..RY16197207-197712

main12311-44020i5R..RY16197712-197902

main12311-48010i2J..JY16197207-197902

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-44010i5R..RY16197712-197902

main12315-31010i12R..RY10,12197109-197511

main12315-31011i12R..RY10,12197511-197902

main12315-40010i5R..RY16197207-197712

main12315-48010i2J..JY16197207-197902

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-21010i12R..RY10,12197109-197501

main12303-21011i12R..RY10,12197501-197902

main12303-40011i5R..RY16197207-197501

main12303-44010i5R..RY16197501-197902

main12321-48020i2J..JY16197207-197710

main12321-48021i2J..JY16197710-197902

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-48010×2i2J..JY16197207-197902

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-39017×2i12R..RY10,12197109-197211

main12361-39018×2i12R..RY10,12197211-197902

main12361-49036×2i2J..JY16; 5R..RY16197207-197902

RH

main12362-49016i2J..JY16197207-197902

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-21010i12R..RY10,12197109-197902

main12371-40030i5R..RY16197207-197902

main12371-44012×2i2J..JY16197207-197902

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-46010i2J..JY16197207-197902

12511BRACKET, ALTERNATOR, NO.1

main12511-40012i5R..RY16197207-197902

main12511-48010i2J..JY16197207-197902

9020110152

main90201-10152

9111171018

main91111-71018

9111171020

main91111-71020

9161160822

main91611-60822

9161161022

main91611-61022

9161161025

main91611-61025

9165161025

main91651-61025

9411041000

main94110-41000

9411050800

main94110-50800

9411051000

main94110-51000

9411551200

main94115-51200

9451201000

main94512-01000

9451201200

main94512-01200

9461211000

main94612-11000

22 parts on this diagram · 3 diagrams in section
