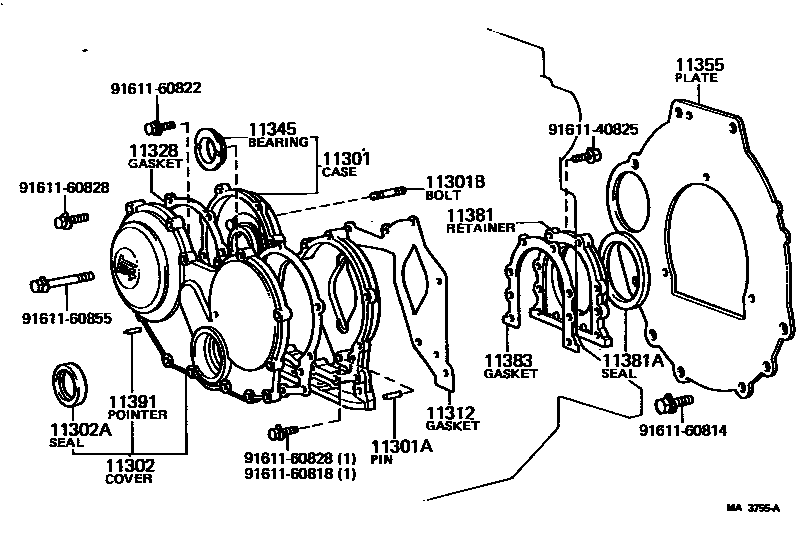

TIMING GEAR COVER & REAR END PLATE
11301CASE SUB-ASSY, TIMING GEAR
11301APIN, STRAIGHT(FOR TIMING GEAR CASE)
L=18,OD=8,L=18,OD=8
11301BBOLT,STUD(FOR TIMING GEAR CASE)
L=39,S=10&20
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
HTC3 38.5 58 11
HTC3 38.5 58 11
TC3 38.5 58 11
HTC 38.5 58 11
TC3 45 68 12
TC3 50 70 12
11312GASKET, FRONT END PLATE
11328GASKET, TIMING GEAR OR CHAIN COVER
11345BEARING, INJECTION PUMP GEAR THRUST
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
HTCY 80 100 12 13.5
TC 80 100 12
HTC 80 100 12
HTC 95 115 12
TC 95 115 12 X3
11383GASKET, ENGINE REAR OIL SEAL RETAINER
11391POINTER, TIMING
9161140825
main91611-40825
9161160814
main91611-60814
9161160818
main91611-60818
9161160822
main91611-60822
9161160828
main91611-60828
9161160855
main91611-60855
19 parts on this diagram · 4 diagrams in section
