ENGINE OVERHAUL GASKET KIT

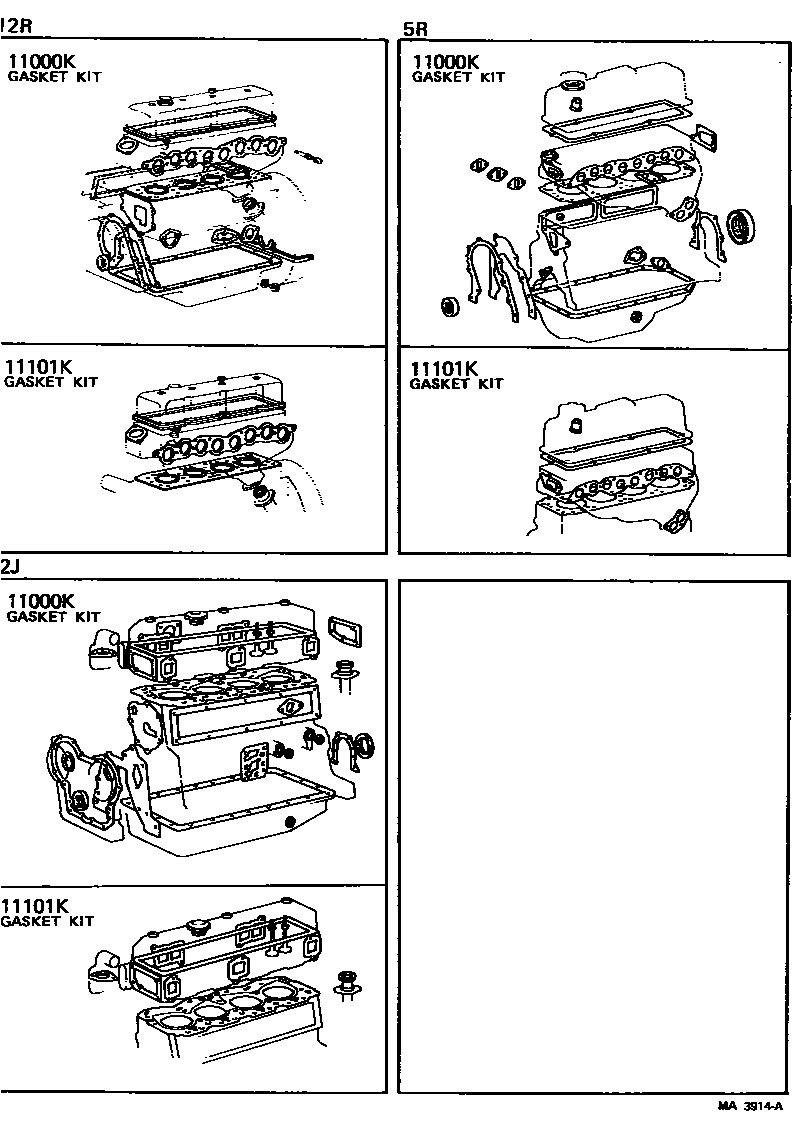

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-31020i197109-197511

main04111-31030i197511-197701

main04111-31031i197701-197802

main04111-31032i197802-197902

main04111-44031i197207-197511

main04111-44032i197511-197601

main04111-44033i197601-197708

main04111-44034i197708-197805

main04111-44035i197805-197902

main04111-44040i197507-197511

CHINA SPEC.

main04111-44041i197511-197708

CHINA SPEC.

main04111-44042i197708-197805

CHINA SPEC.

main04111-44043i197805-197902

CHINA SPEC.

main04111-48011i197207-197607

main04111-48012i197607-197708

main04111-48013i197708-197902

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-31020i197109-197511

main04112-31030i197511-197701

main04112-31031i197701-197802

main04112-31032i197802-197902

main04112-44020i197207-197601

main04112-44021i197601-197708

main04112-44022i197708-197805

main04112-44023i197805-197902

main04112-48011i197207-197607

main04112-48012i197607-197708

main04112-48013i197708-197902

2 parts on this diagram · 1 diagram in section
