SHORT BLOCK ASSEMBLY

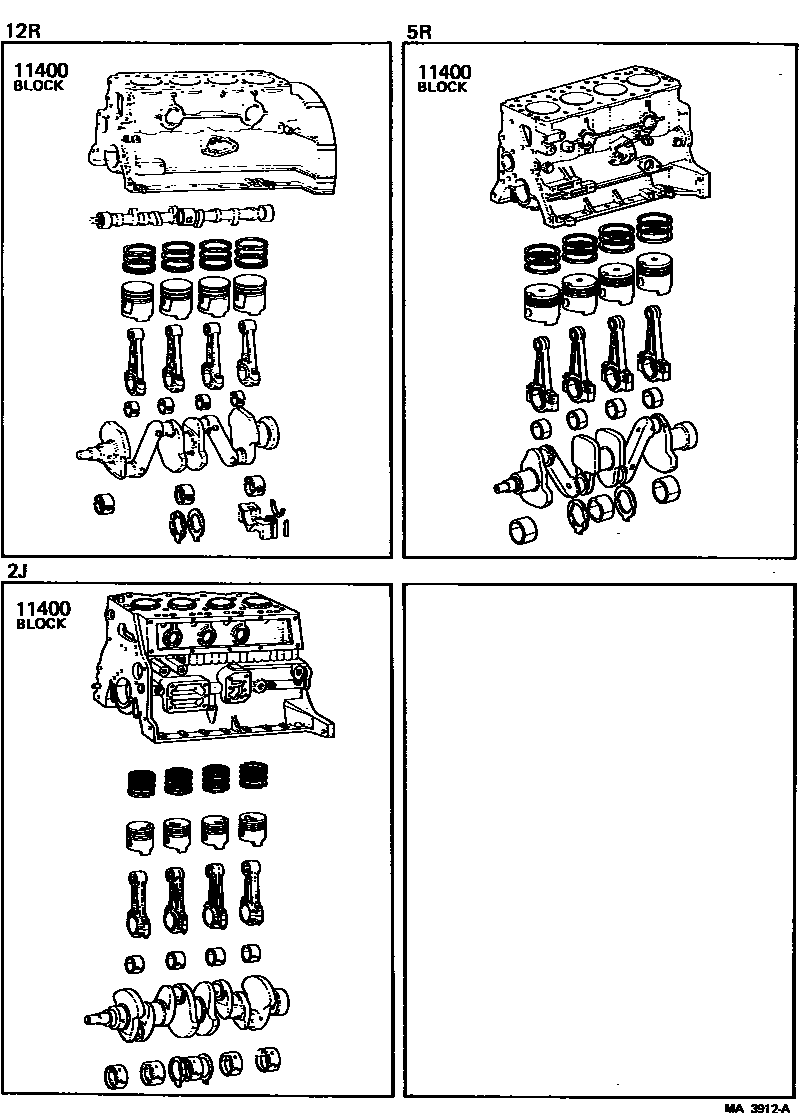

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31020i197109-197203

main11400-31021i197203-197511

main11400-31022i197511-197902

main11400-44012i197207-197511

main11400-44013i197511-197708

main11400-44050i197507-197511

CHINA SPEC.

main11400-44051i197511-197708

CHINA SPEC.

main11400-44060i197708-197801

main11400-44070i197708-197808

CHINA SPEC.

main11400-48013i197207-197708

main11400-48015i197708-197902

main11400-49025i197801-197808

main11400-49035i197808-197902

main11400-49045i197808-197902

CHINA SPEC.

1 parts on this diagram · 1 diagram in section
