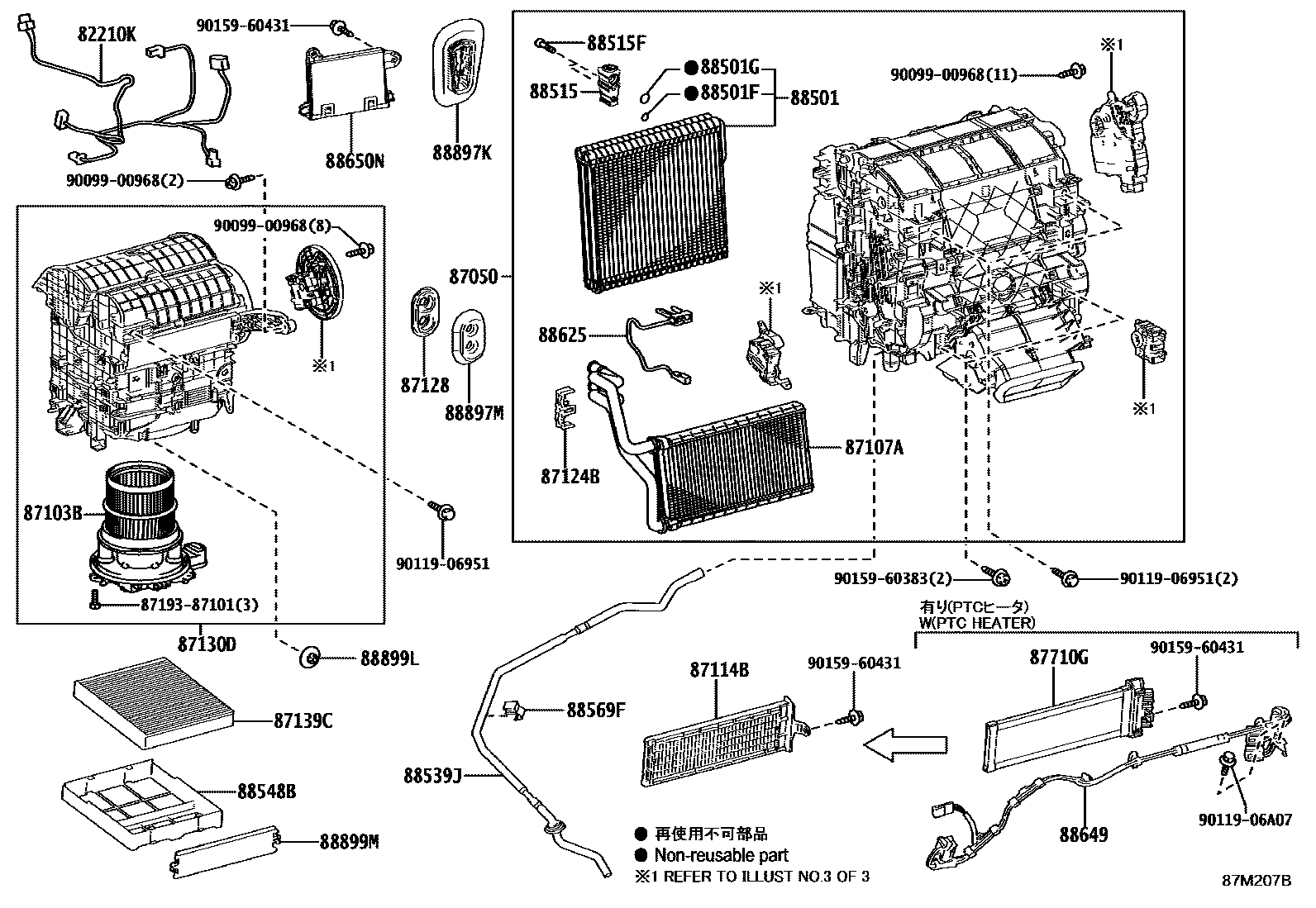

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1DAMPER SERVO 0006 1DAMPER SERVO 0007 1REFRIGERATOR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33110iAAWH15,TAWH15..LHD202306

main82212-33210iAAWH1#,TAWH15..RHD202306

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33F50iAAWH15..LHD..EUR202306

main87050-33G40iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main87050-48B00iAAWH1#..RHD..EUR202306

main87050-V2200iAAWH15,TAWH15..LHD..(CHI,GEN,KRE,PHL,RUS,TWN)202306

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42120iAAWH15..LHD..EUR202306

main87103-58070iAAWH1#,TAWH15..RHD202306

main87103-58080iAAWH15,TAWH15..LHD..(CHI,GEN,KRE,PHL,RUS,TWN)202306

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33130iAAWH15,TAWH15..LHD202306

main87107-33140iAAWH1#,TAWH15..RHD202306

87114BCOVER, HEATER

main87114-33050iAAWH1#,TAWH15..ARL,GEN,PHL,TWN202306

87124BCLAMP, HEATER

main87124-33070iAAWH1#,TAWH15202306

87128GROMMET, HEATER

main87128-28010iAAWH1#,TAWH15202306

87130DBLOWER ASSY

main87130-42470iAAWH15..LHD..EUR202306

main87130-47290iAAWH15,TAWH15..LHD..(CHI,GEN,KRE,PHL,RUS,TWN)202306

main87130-47300iAAWH1#,TAWH15..RHD202306

87139CFILTER, CLEAN AIR

main87139-76020iAAWH1#,TAWH15202306

DEODORANT FILTER

main87139-V2010iAAWH15,TAWH15..CHI202306

MICRO DUST FILTER

87710GQUICK HEATER ASSY

main87710-58010iAAWH1#,TAWH15..CHI,EUR,KRE,RUS202306

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33350iAAWH1#,TAWH15202306

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iAAWH1#,TAWH15202306

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAAWH1#,TAWH15202306

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-33080iAAWH15..LHD..EUR202306

main88515-48110iAAWH1#,TAWH15..RHD..(ARL,GEN)202306

main88515-52120iAAWH15,TAWH15..LHD..(CHI,GEN,KRE,PHL,RUS,TWN)202306

main88515-58050iAAWH1#..RHD..EUR202306

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iAAWH1#,TAWH15202306

88539JHOSE, DRAIN COOLER

main88539-V2010iAAWH1#,TAWH15..RHD202306

main88539-V2020iAAWH15,TAWH15..LHD202306

88548BCASE, AIR FILTER

main88899-76020iAAWH1#,TAWH15..ARL,EUR,GEN,KRE,PHL,RUS,TWN202306

main88899-V2030iAAWH15,TAWH15..CHI202306

88569FCLAMP

main88718-V2010iAAWH1#,TAWH15202306

88625THERMISTOR, COOLER, NO.1

main88620-28050iAAWH1#,TAWH15202306

88649WIRING, COOLER, NO.2

main88649-V2060iAAWH1#..RHD..EUR202306

main88649-V2070iAAWH15,TAWH15..LHD..(CHI,EUR,KRE,RUS)202306

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-V2020iAAWH1#,TAWH15..V202306-202404

main886H0-V2021iAAWH1#,TAWH15..V202405

main886H0-V2050iAAWH1#,TAWH15..X202306-202404

main886H0-V2051iAAWH1#,TAWH15..X202405

88897KGROMMET, (FOR COOLER PIPE)

main88899-33080iAAWH1#,TAWH15202306

88897MGROMMET (FOR HEATER PIPE)

main87128-33020iAAWH1#,TAWH15202306

88899LPARTS, COOLING UNIT

main88899-52160iAAWH1#,TAWH15202306

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iAAWH1#,TAWH15202306

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9011906A07

main90119-06A07

9015960383

main90159-60383

9015960431

main90159-60431

31 parts on this diagram · 7 diagrams in section
