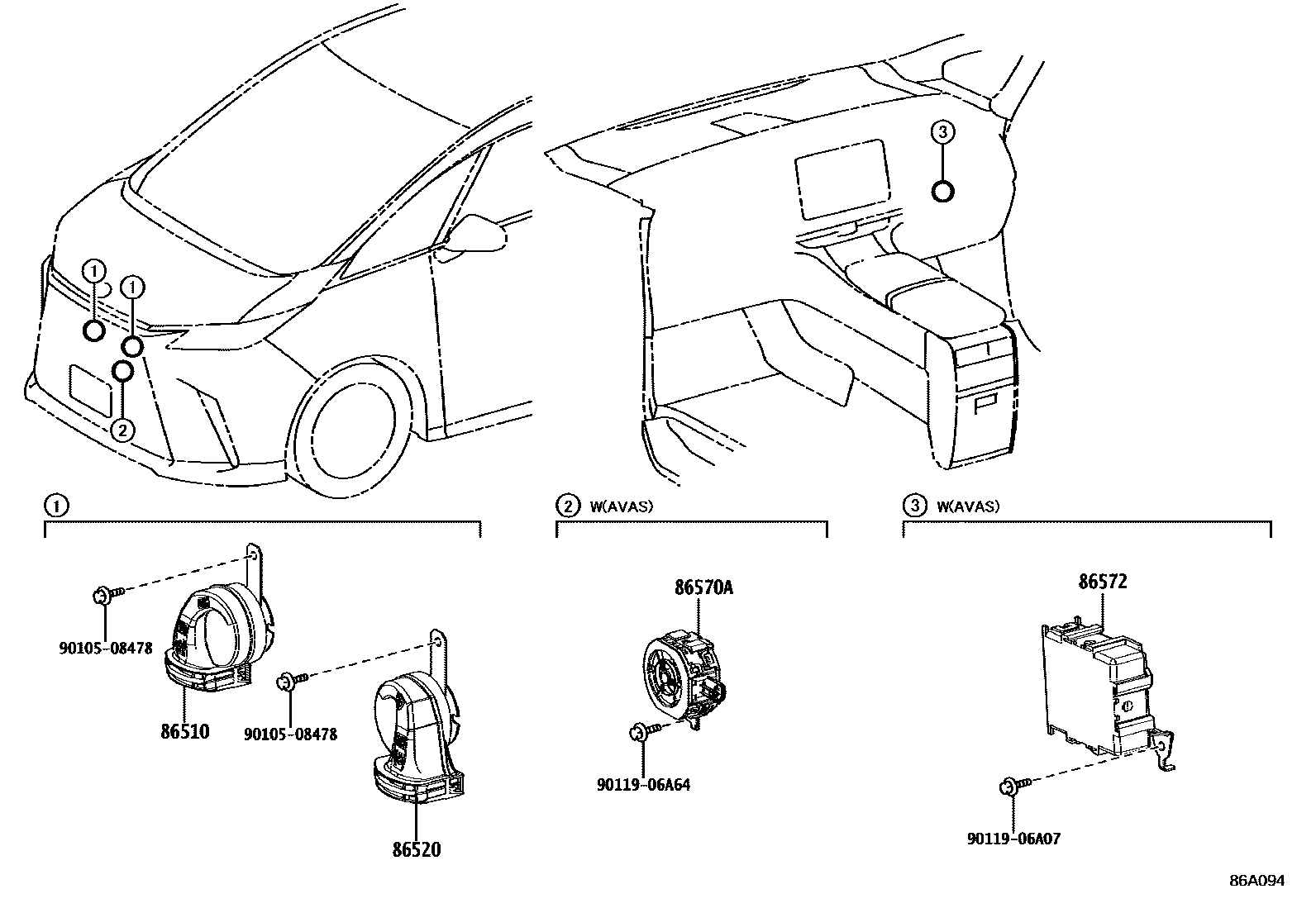

HORN

86510HORN ASSY, HIGH PITCHED

main86510-48210iTAWH15..KRE202311

main86510-60300iAAWH10;AAWH15,TAWH15..RHD..GEN;AAWH15,TAWH15..ARL,EUR,PHL,RUS,TWN202306-202311

main86510-78020iAAWH15..LHD..GEN202306

86520HORN ASSY, LOW PITCHED

main86520-30690iTAWH15..KRE202311

main86520-60250iAAWH10;AAWH15,TAWH15..RHD..GEN;AAWH15,TAWH15..ARL,EUR,PHL,RUS,TWN202306-202311

main86520-78020iAAWH15..CHI;TAWH15..LHD..(CHI,GEN)202306

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-V2020iAAWH15..RHD..V..GEN202306

UKRAINE SPEC

main86570-V2020iAAWH10..GEN202306-202311

main86570-V2020iAAWH15..RHD;AAWH10..ARL,EUR;AAWH15..LHD..(CHI,EUR,TWN)202306

SINGAPORE SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-V2040iAAWH10..GEN202306-202311

main86572-V2040iAAWH15..RHD;AAWH10..ARL,EUR;AAWH15..LHD..(CHI,EUR,TWN)202306

UKRAINE SPEC

main86572-V2040iAAWH15..RHD;AAWH10..ARL,EUR;AAWH15..LHD..(CHI,EUR,TWN)202306

SINGAPORE SPEC

main865H2-V2010iTAWH15..RHD..GEN;TAWH15..ARL,CHI,KRE,TWN202311

MALAYSIA SPEC

main865H2-V2010iTAWH15..RHD..GEN;TAWH15..ARL,CHI,KRE,TWN202311

SINGAPORE SPEC

9010508478

main90105-08478

9011906A07

main90119-06A07

9011906A64

main90119-06A64

7 parts on this diagram · 1 diagram in section
