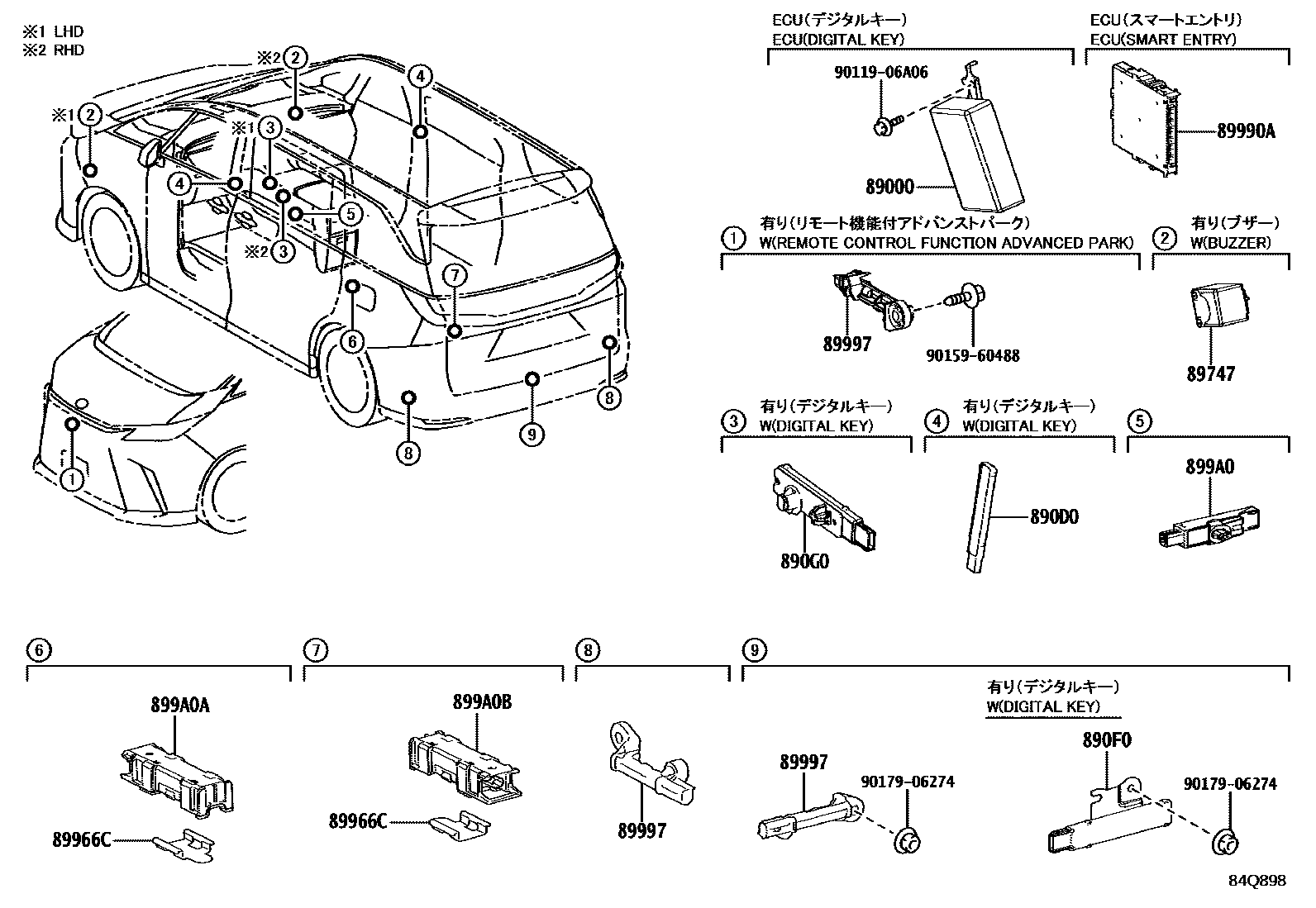

WIRELESS DOOR LOCK

0001 1 0002 1

89000COMPUTER ASSY, DIGITAL KEY

main89000-V2030iAAWH15..X..EUR202306-202311

DIGITAL KEY-WITH

main89000-V2031iAAWH15..X..EUR202312-202507

DIGITAL KEY-WITH

main89000-V2040iAAWH15,TAWH15..CHI202306-202507

DIGITAL KEY-WITH

main89000-V2050iAAWH1#..V..EUR202306-202311

DIGITAL KEY-WITH

main89000-V2051iAAWH1#..V..EUR202312-202507

DIGITAL KEY-WITH

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78020×2iAAWH15,TAWH15..CHI202306

DIGITAL KEY-WITH

main890D0-V2010×2iAAWH1#..EUR202306-202507

DIGITAL KEY-WITH

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890F0-V2020iAAWH15,TAWH15..CHI202306

DIGITAL KEY-WITH

main890F0-V2030iAAWH1#..EUR202306-202507

DIGITAL KEY-WITH

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-78020iAAWH15,TAWH15..CHI202306

DIGITAL KEY-WITH

main890G0-V2030iAAWH1#..EUR202306-202507

DIGITAL KEY-WITH

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAAWH15,TAWH15..LHD..(GEN,PHL,RUS)202306

MALAYSIA SPEC

89966CBRACKET, OSCILLATOR ELECTRICAL KEY

main89966-28010×2iAAWH1#,TAWH15202306

89990ACOMPUTER ASSY, SMART KEY

main899H0-V2050iAAWH15..V..RUS202306

DESTINATION PACKAGE(ERP)-BELARUS SPEC

main899H0-V2060iAAWH15..LHD..X..EUR202306

DESTINATION PACKAGE(ERP)-BELARUS SPEC

main899H0-V2070iAAWH1#..V..(EUR,RUS)202306

main899H0-V2080iAAWH15..X..(EUR,RUS)202306

main899H0-V2090iTAWH15..V202311

main899H0-V2100iTAWH15..X202311

89997ANTENNA, ELECTRICAL KEY

main89997-30100×3iAAWH1#,TAWH15202306

ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iAAWH1#,TAWH15202306

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-V1010iAAWH1#,TAWH15202306

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-V1010iAAWH1#,TAWH15..V202306

main899A0-V1020iAAWH1#,TAWH15..X202306

9011906A06

main90119-06A06

9015960488

main90159-60488

9017906274

main90179-06274

14 parts on this diagram · 2 diagrams in section
