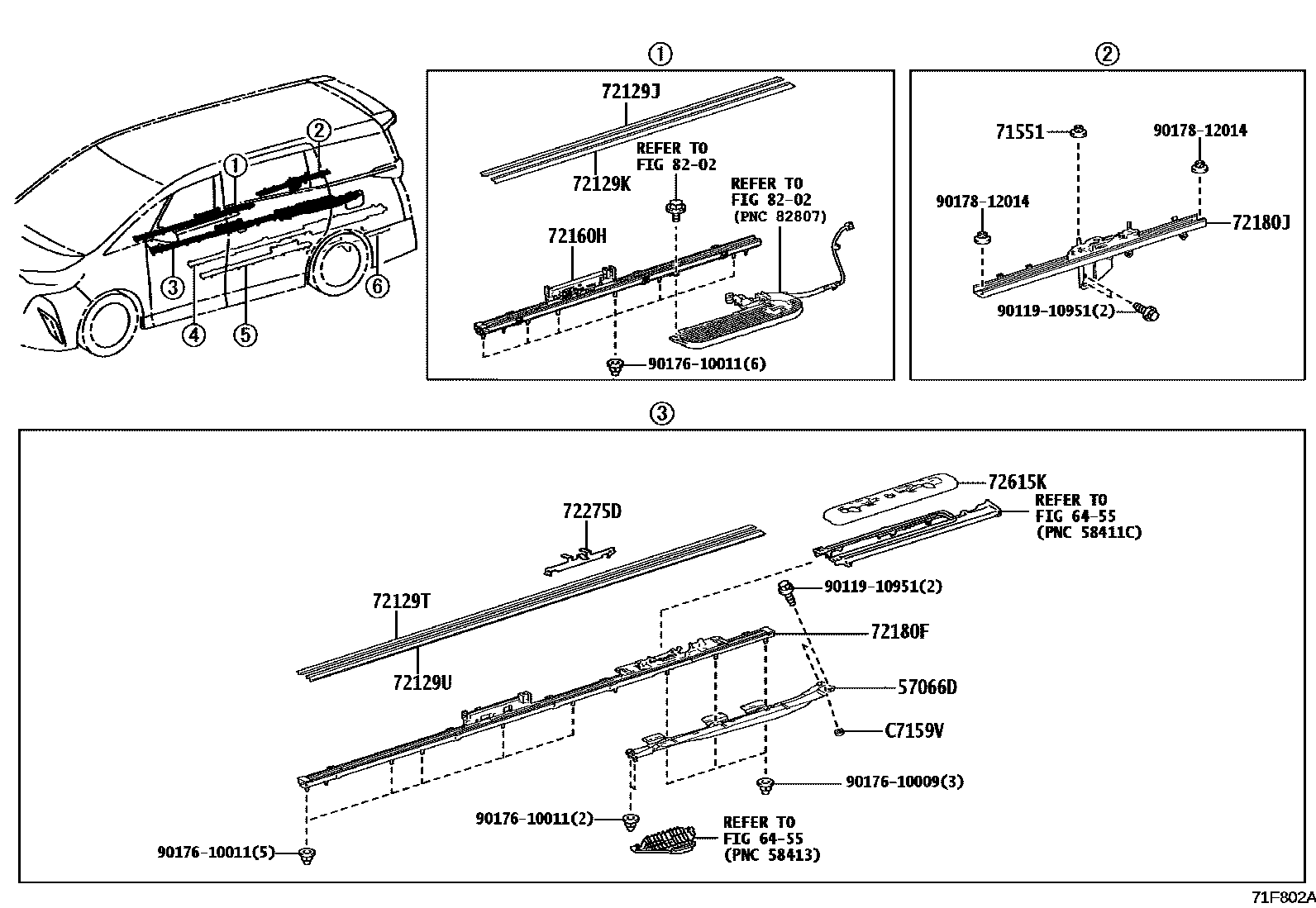

SEAT RAIL
57066DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
6455
71551NUT
72129JPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
BLACK,TRIM0#,2#
72129KPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
BLACK,TRIM0#,2#
72129TPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
BLACK,TRIM0#,2#
72129UPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
BLACK,TRIM0#,2#
72160HTRACK ASSY, REAR SEAT, OUTER RH
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
72180FTRACK ASSY, REAR SEAT, INNER RH
HONG KONG SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
CAMBODIA SPEC&REAR NO.1 SEAT-EXECUTIVE, W(SIDE TABLE:RH SEAT)
72180JTRACK ASSY, REAR NO.2 SEAT, RH
72275DSTOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72615KCOVER, REAR SEAT LOCK STRIKER, RH
BLACK,TRIM0#,2#
8202
C7159VCUSHION, WELCAB SEAT LEG STOPPER
9011910951
main90119-10951
9017610009
main90176-10009
9017610011
main90176-10011
9017812014
main90178-12014
18 parts on this diagram · 4 diagrams in section
