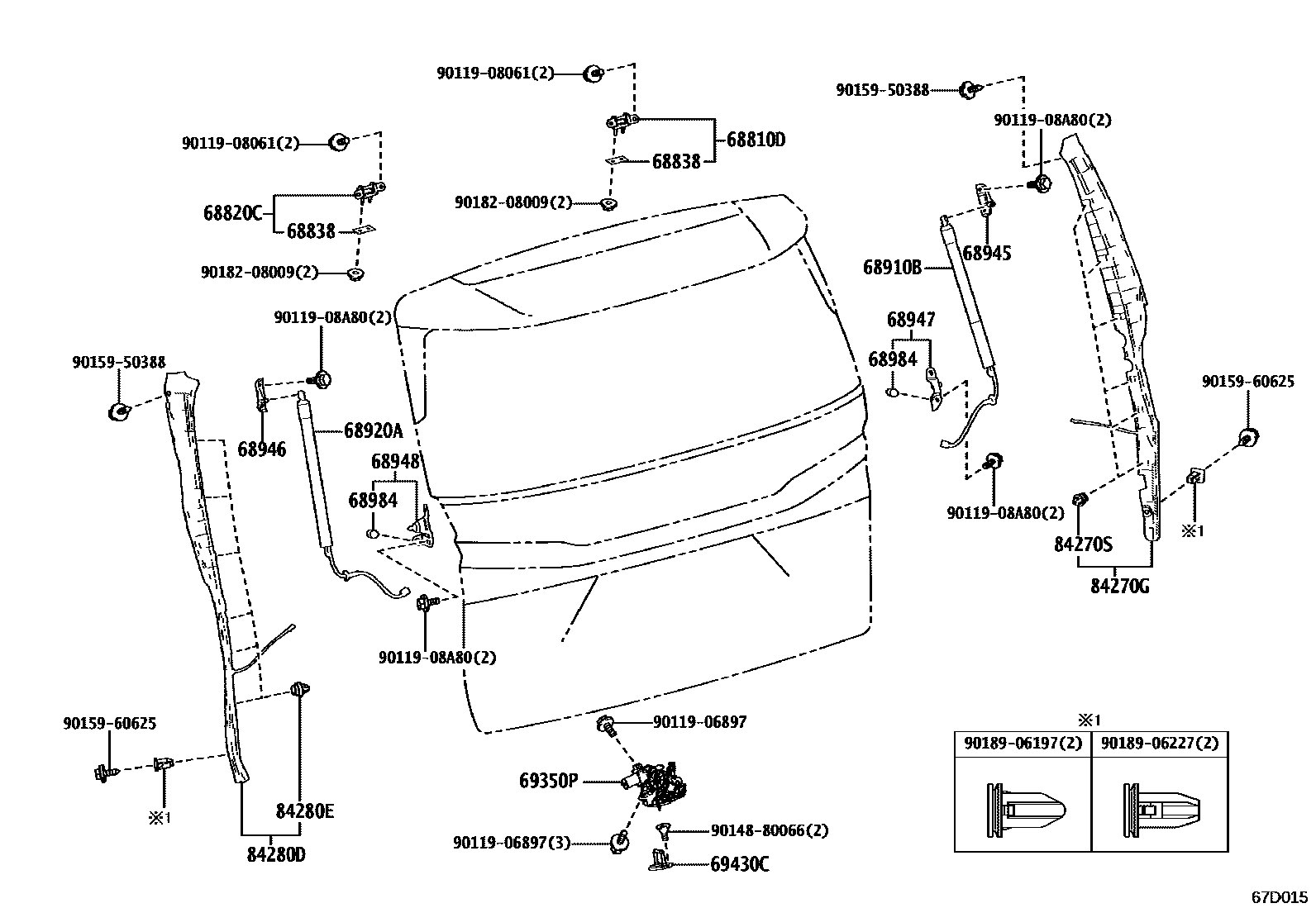

BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68810-26030iAAWH1#,TAWH15202306

68820CHINGE ASSY, BACK DOOR, LH

main68820-26030iAAWH1#,TAWH15202306

68838PAD, BACK DOOR HINGE, NO.1

main68838-26030×2iAAWH1#,TAWH15202306

T=1.1

68910BUNIT ASSY, POWER BACK DOOR, RH

main68910-V2020iAAWH1#,TAWH15202306

68920AUNIT ASSY, POWER BACK DOOR, LH

main68920-V2020iAAWH1#,TAWH15202306

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-V2030iAAWH1#,TAWH15202306

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-V2030iAAWH1#,TAWH15202306

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-V2030iAAWH1#,TAWH15202306

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-V2030iAAWH1#,TAWH15202306

68984STOPPER, BACK DOOR STAY

main68984-V2010×2iAAWH1#,TAWH15202306

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-V2010iAAWH1#,TAWH15202306

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iAAWH1#,TAWH15202306

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-V2020iAAWH1#,TAWH15202306

84270SCLIP(POWER BACK DOOR SENSOR, RH)

main90467-09234×6iAAWH1#,TAWH15202306

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-V2020iAAWH1#,TAWH15202306

84280ECLIP (FOR POWER BACK DOOR SENSOR, LH)

main90467-09234×6iAAWH1#,TAWH15202306

9011906897

main90119-06897

9011908061

main90119-08061

9011908A80

main90119-08A80

9014880066

main90148-80066

9015950388

main90159-50388

9015960625

main90159-60625

9018208009

main90182-08009

9018906197

main90189-06197

9018906227

main90189-06227

25 parts on this diagram · 1 diagram in section
