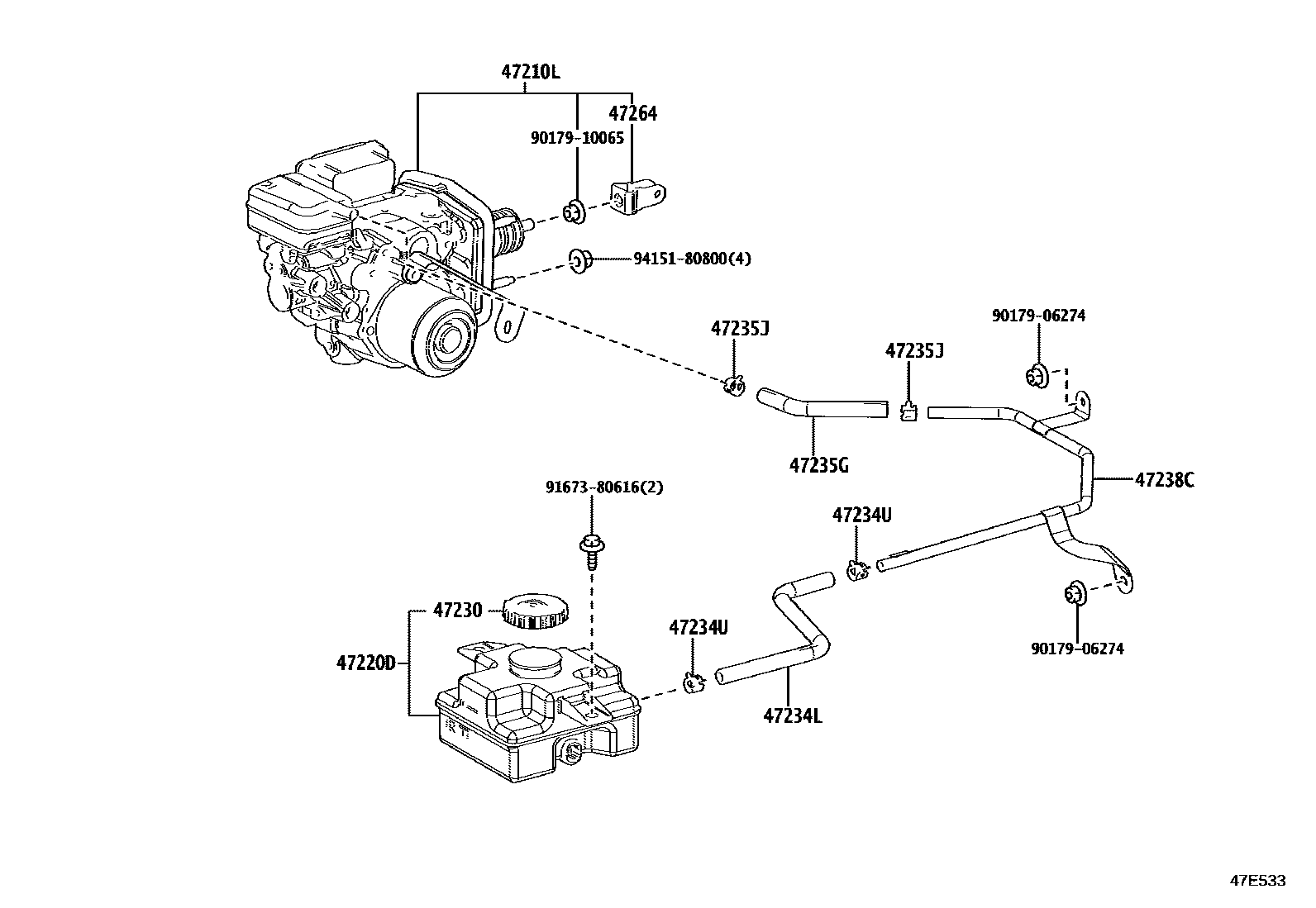

BRAKE MASTER CYLINDER

0001 1 0002 1

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-V2010iAAWH1#..RHD202306

*614

main47050-V2020iAAWH15..LHD..(EUR,GEN,PHL,RUS,TWN)202306

*614

main47050-V2030iAAWH15..CHI202306

*614

main47050-V2040iTAWH15..RHD202311

*614

main47050-V2050iTAWH15..LHD..(GEN,KRE,TWN)202311

*614

main47050-V2060iTAWH15..CHI202311

*614

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-V2020iAAWH1#,TAWH15202306

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAAWH1#,TAWH15202306

47234LHOSE, RESERVOIR, NO.1

main47234-V2030iAAWH1#,TAWH15..RHD202306

main47234-V2040iAAWH15,TAWH15..LHD202306

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501×2iAAWH1#,TAWH15202306

47235GHOSE, RESERVOIR, NO.2

main47235-V2030iAAWH1#,TAWH15..RHD202306

main47235-V2040iAAWH15,TAWH15..LHD202306

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501×2iAAWH1#,TAWH15202306

47238CTUBE, RESERVOIR

main47238-V2010iAAWH1#..RHD202306

main47238-V2020iAAWH15,TAWH15..LHD202306

main47238-V2030iTAWH15..RHD202311

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-42030iAAWH1#,TAWH15202306

9017906274

main90179-06274

9017910065

main90179-10065

9167380616

main91673-80616

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
