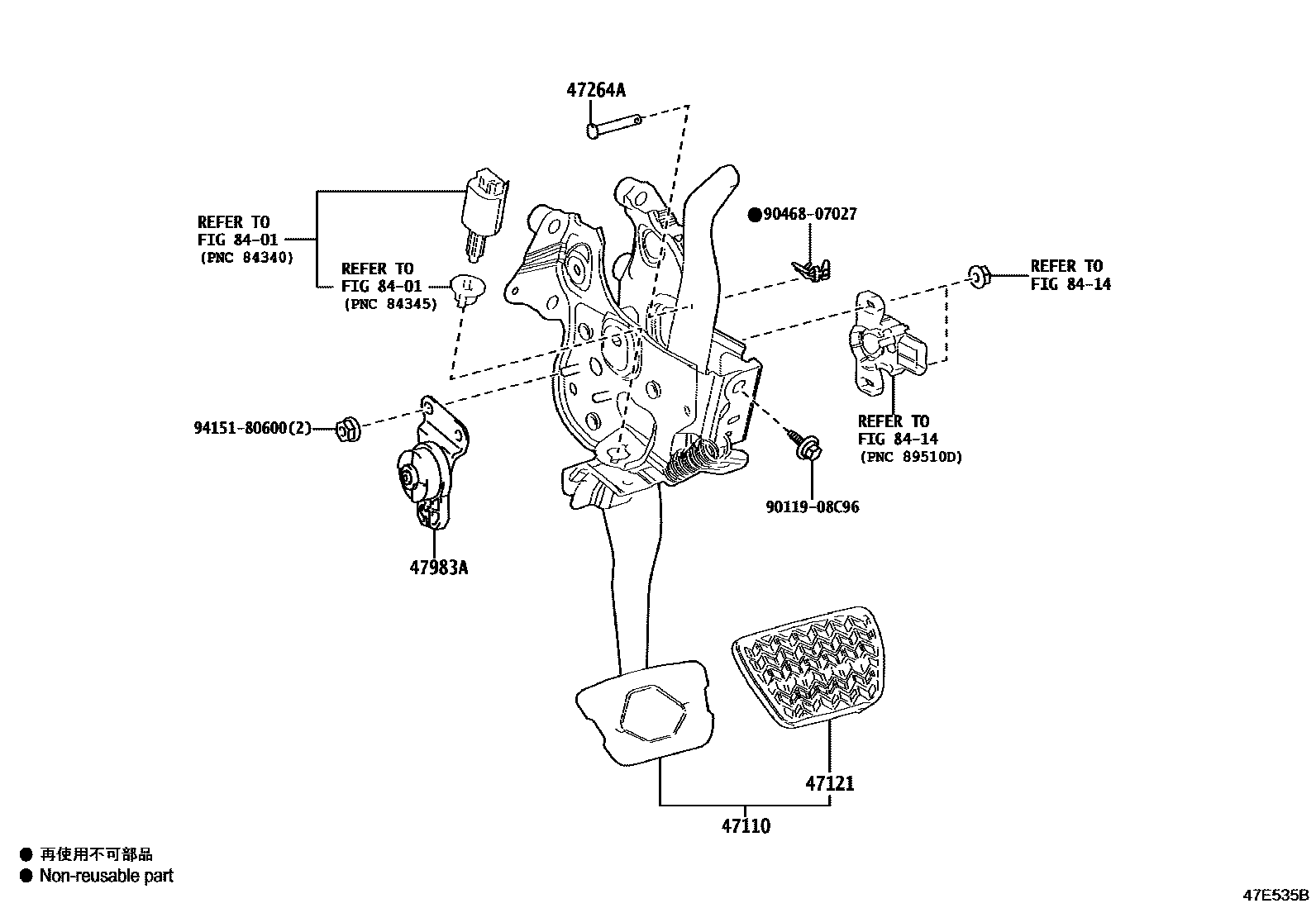

BRAKE PEDAL & BRACKET

0001 1 0002 1

47110SUPPORT ASSY, BRAKE PEDAL

main47110-V2050iAAWH1#,TAWH15..RHD202306

main47110-V2060iAAWH15,TAWH15..LHD202306

47121PAD, BRAKE PEDAL

main47121-62010iAAWH1#,TAWH15202306

47264APIN(FOR PUSH ROD)

main90240-08082iAAWH1#,TAWH15202306

47983ADAMPER, BRAKE TRACTION

main47983-V2010iAAWH1#,TAWH15202306

8401

8414

9011908C96

main90119-08C96

9046807027

main90468-07027

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
