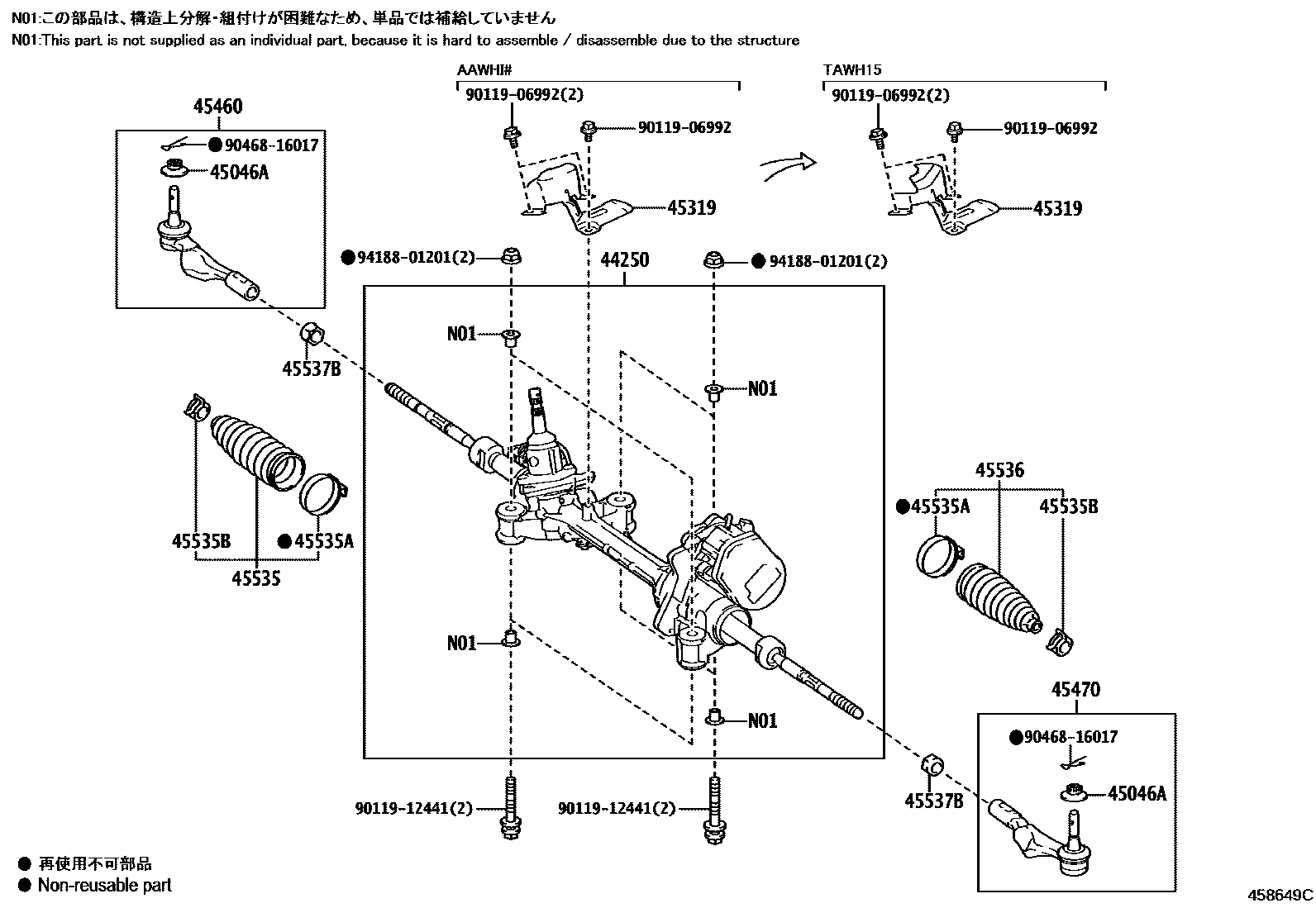

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-V2010iAAWH1#,TAWH15..RHD202306

*614

main44250-V2020iAAWH15,TAWH15..LHD202306

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015×2iAAWH1#,TAWH15202306

45319INSULATOR, STEERING GEAR HEAT

main45319-42020iAAWH15..LHD202306

main45319-42030iAAWH1#..RHD202306

main45319-78010iTAWH15..LHD202311

main45319-78020iTAWH15..RHD202311

45460ROD ASSY, TIE, RH

main45460-V9005iAAWH1#,TAWH15202306

45470ROD ASSY, TIE, LH

main45470-V9005iAAWH1#,TAWH15202306

45535BOOT, STEERING RACK, NO.1

main45535-49135iAAWH1#,TAWH15202306

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06030×2iAAWH1#,TAWH15202306

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iAAWH1#,TAWH15202306

45536BOOT, STEERING RACK, NO.2

main45535-49135iAAWH1#,TAWH15202306

45537BNUT, RACK END LOCK

main90178-16001×2iAAWH1#,TAWH15202306

9011906992

main90119-06992

9011912441

main90119-12441

9046816017

main90468-16017

9418801201

main94188-01201

14 parts on this diagram · 2 diagrams in section
