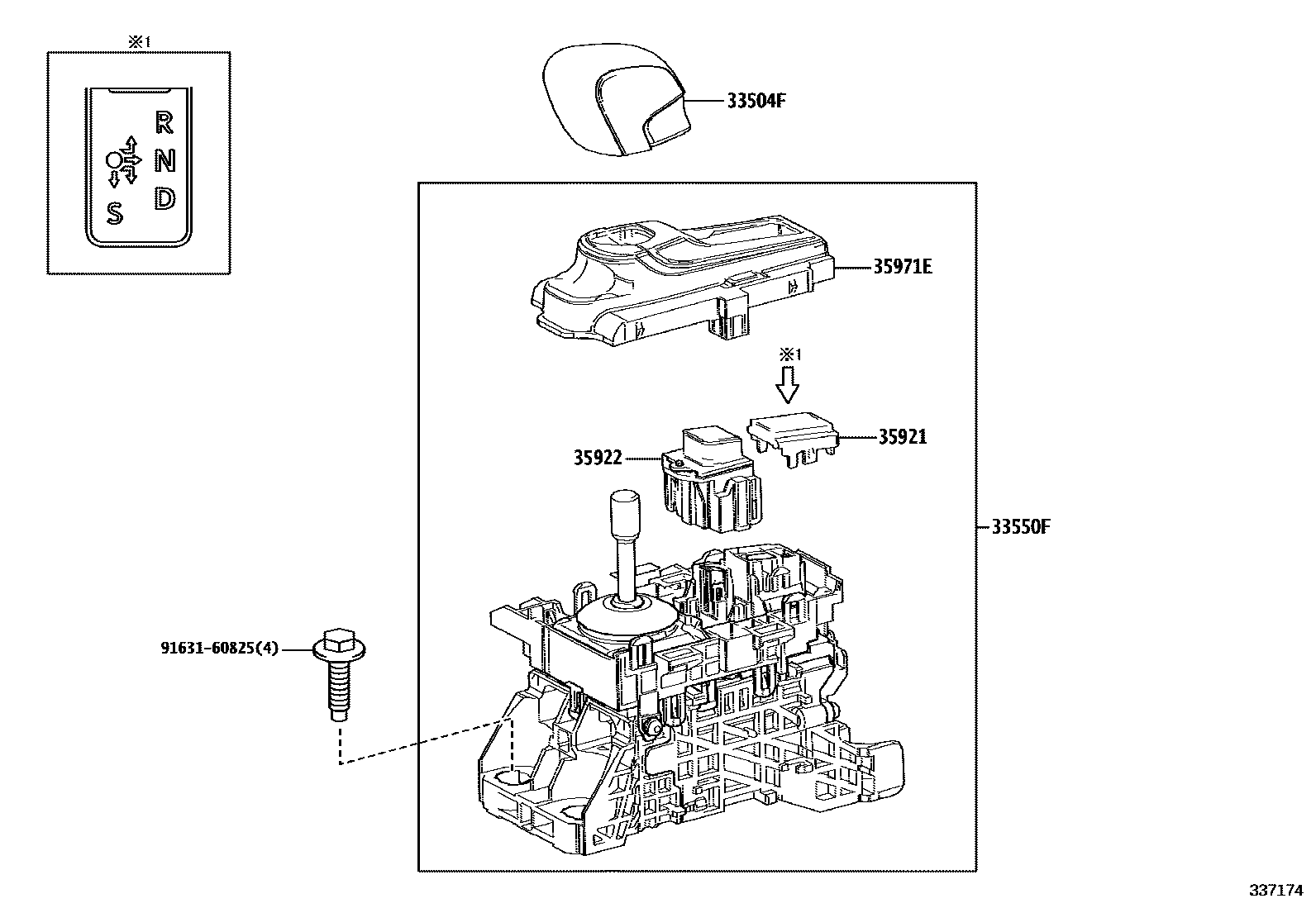

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-78030-C0iAAWH1#,TAWH15202306

BLACK,TRIM0#,2#

33550FSHIFT ASSY, TRANSMISSION INSTRUMENT PANEL

main33550-V2060-B0iAAWH1#..RHD202306

LEXUS SATIN CHROME,TRIM0#,2#,*614

main33550-V2070-B0iTAWH15..RHD202311

LEXUS SATIN CHROME,TRIM0#,2#,*614

main33550-V2080-B0iAAWH15..LHD202306

LEXUS SATIN CHROME,TRIM0#,2#,*614

main33550-V2090-B0iTAWH15..LHD202311

LEXUS SATIN CHROME,TRIM0#,2#,*614

35921PLATE, CONTROL POSITION INDICATOR

main35921-78010iTAWH15..LHD202311

main35921-78020iAAWH15..LHD202306

main35921-78030iTAWH15..RHD202311

main35921-78040iAAWH1#..RHD202306

35922KNOB, TRANSMISSION PARKING SWITCH

main35922-78010iAAWH1#,TAWH15202306

35971EHOUSING, POSITION INDICATOR

main35971-78010iAAWH15,TAWH15..LHD202306

main35971-78020iAAWH1#,TAWH15..RHD202306

9163160825

main91631-60825

6 parts on this diagram · 2 diagrams in section
