IGNITION COIL & SPARK PLUG / GLOW PLUG

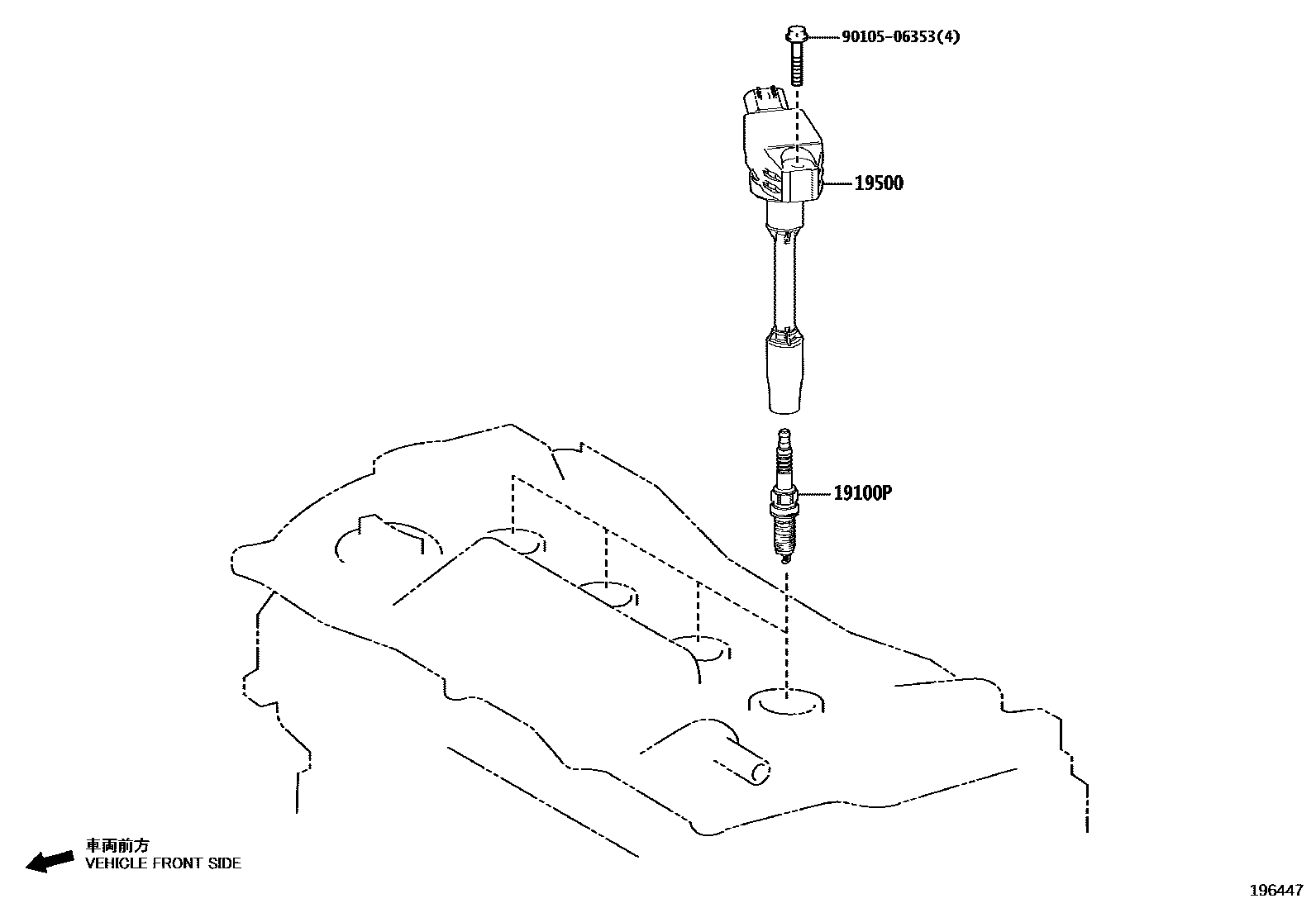

Parts diagram

19100PPLUG, SPARK

main90919-01289i202306

FC16HR-Q8

main90919-01303i202311

DILZKAR8E7H

19500COIL ASSY, IGNITION

main90919-02277i202306

9010506353

main90105-06353

3 parts on this diagram · 2 diagrams in section
