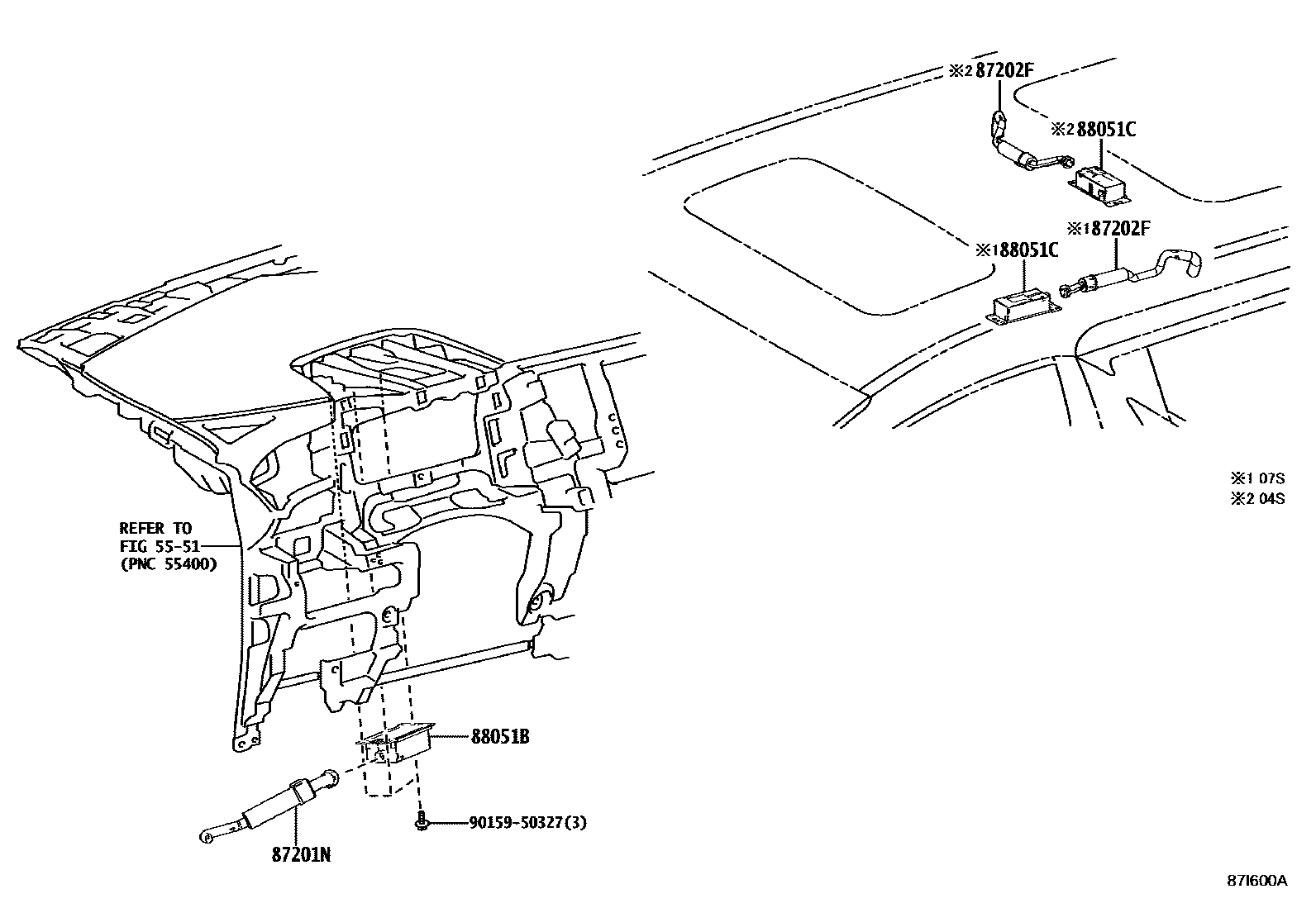

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

87201NDUCT SUB-ASSY, AIR

main87201-58120iAYH36,GGH31..RHD202001

main87201-58130iAYH36,GGH31..LHD202001

87202FDUCT SUB-ASSY, AIR, REAR

main87202-58040iAYH36,GGH31..V202001

main87202-58050iAYH36,GGH31..X202002

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-28060iAYH36,GGH31202001

88051CGENERATOR SUB-ASSY, ION, NO.2

main88051-28060iAYH36,GGH31202001

9015950327

main90159-50327

6 parts on this diagram · 2 diagrams in section
