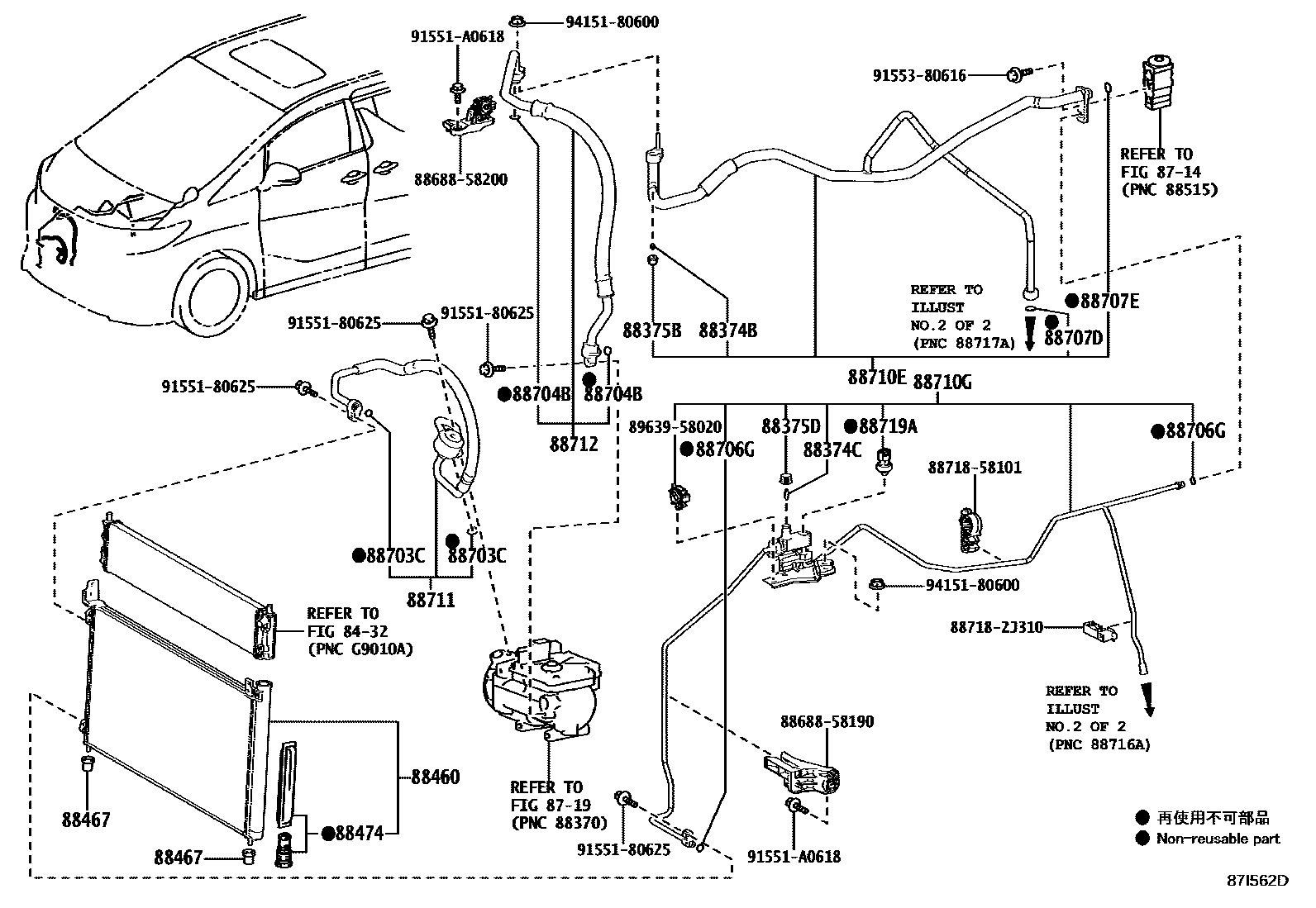

HEATING & AIR CONDITIONING - COOLER PIPING
8432INVERTER COOLING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88467CUSHION, COOLER CONDENSER, NO.1
88474DRYER, COOLER
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88707DRING, O(FOR SUCTION TUBE)
ID=10.8,OD=15.6
88707ERING, O, NO.2(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88719ASENSOR, AIR CONDITIONER PRESSURE
8868858190BRACKET, COOLER DIAPHRAGM
main88688-58190
8868858200BRACKET, COOLER DIAPHRAGM
main88688-58200
887182J310PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2J310
8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-58101
8963958020WIRE, BRAKE CONTROL
main89639-58020
9155180625
main91551-80625
91551A0618
main91551-A0618
9155380616
main91553-80616
9415180600
main94151-80600
29 parts on this diagram · 5 diagrams in section
