HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL PANEL 0002 1REAR HEATER CONTROL PANEL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1FRONT AIR DUCT 0006 1FRONT AIR DUCT 0007 1REAR AIR DUCT 0008 1REAR AIR DUCT 0009 1SENSOR 0010 1SENSOR

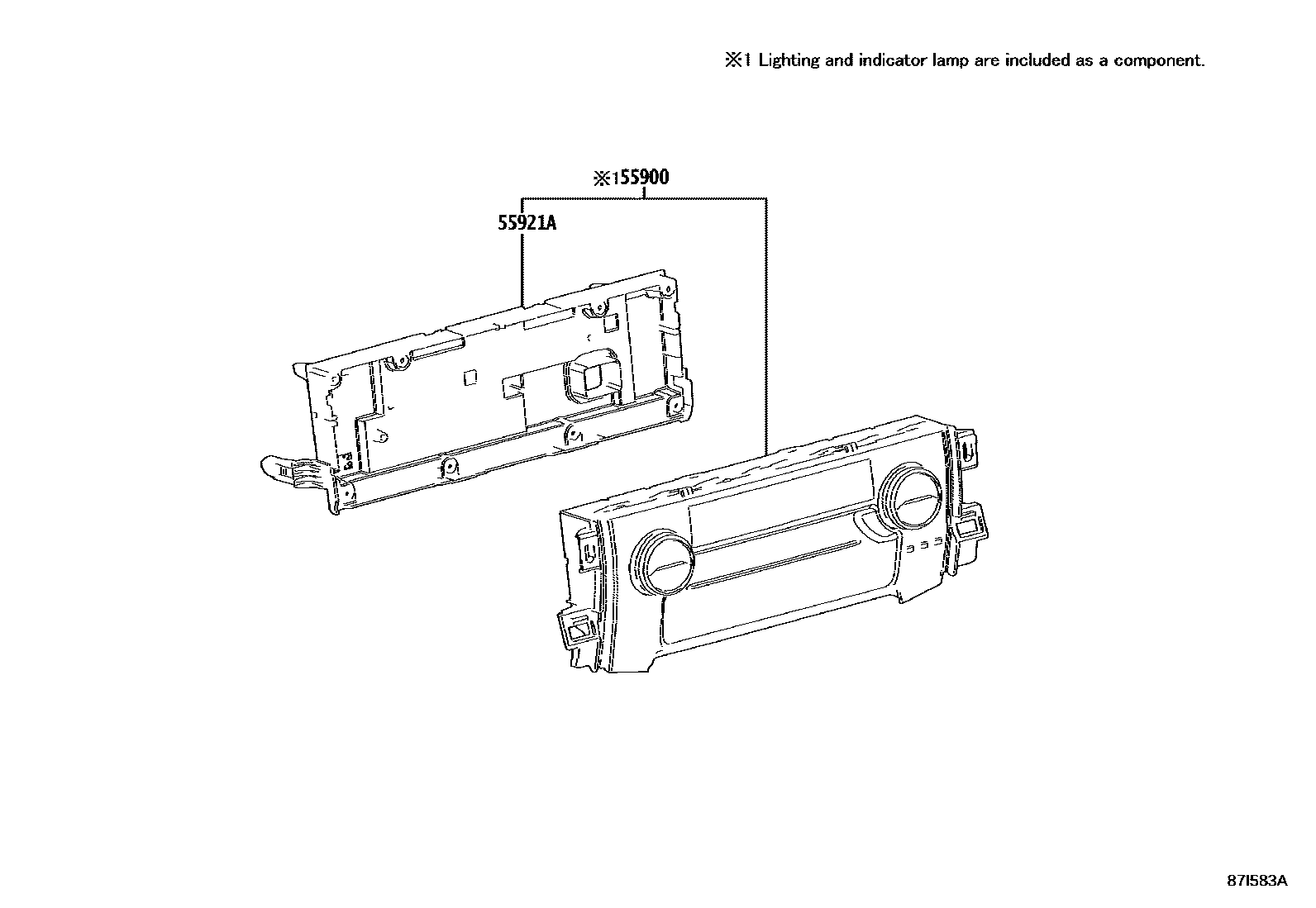

55900CONTROL ASSY, AIR CONDITIONER

main55900-58420iGGH31..RHD202001

main55900-58430iAYH36..RHD202001

main55900-58440iGGH31..LHD202001

main55900-58450iAYH36..LHD202001

55921ARETAINER, HEATER CONTROL

main55921-58010iAYH36,GGH31202001

2 parts on this diagram · 10 diagrams in section
