ANTENNA

0001 1W(SHARKFIN ANTENNA) 0002 1W/O(SHARKFIN ANTENNA) 0003 1

86077COVER KIT, ANTENNA

main86077-60010-A1iAYH36..LHD202001

WHITE PEARL CS.,070

main86077-60010-C0iAYH36..LHD202001

BLACK,202

86101CORD SUB-ASSY, ANTENNA

main86101-58650iAYH36,GGH31..RHD..V202001

main86101-58840iGGH31..LHD..V202001

TAIWAN SPEC

main86101-58880iAYH36,GGH31..RHD..X202002

main86101-58890iAYH36..LHD..X202002

main86101-58A00iAYH36..LHD..V202001

main86101-58A10iGGH31..LHD..X202002

TAIWAN SPEC

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-58A20iAYH36..LHD..V202001

main86101-58A30iAYH36..LHD..X202002

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-58850iAYH36,GGH31202001

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-58870iAYH36..LHD..X202002

main86101-58C40iAYH36..LHD..V202001

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-58130iAYH36,GGH31202001

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-58150iAYH36,GGH31202001

86300JANTENNA ASSY, ROOF

main86760-62030iAYH36..LHD202001

86769HOUSING, ROOF ANTENNA

main86769-62010iAYH36..LHD202001

86842LWIRE, NAVIGATION, NO.1

main86842-58820iAYH36,GGH31..V202001

9011906A06

main90119-06A06

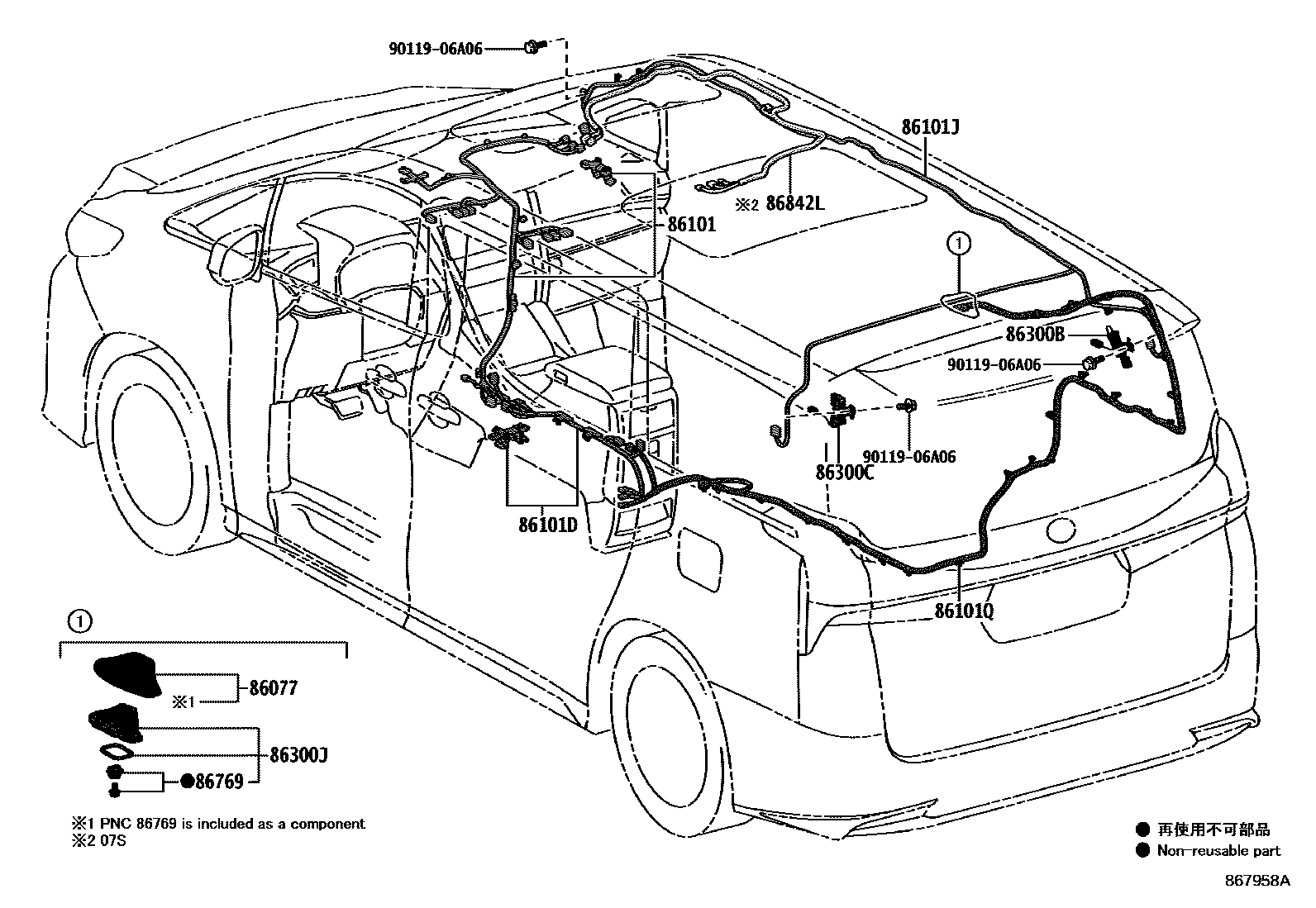

11 parts on this diagram · 3 diagrams in section
