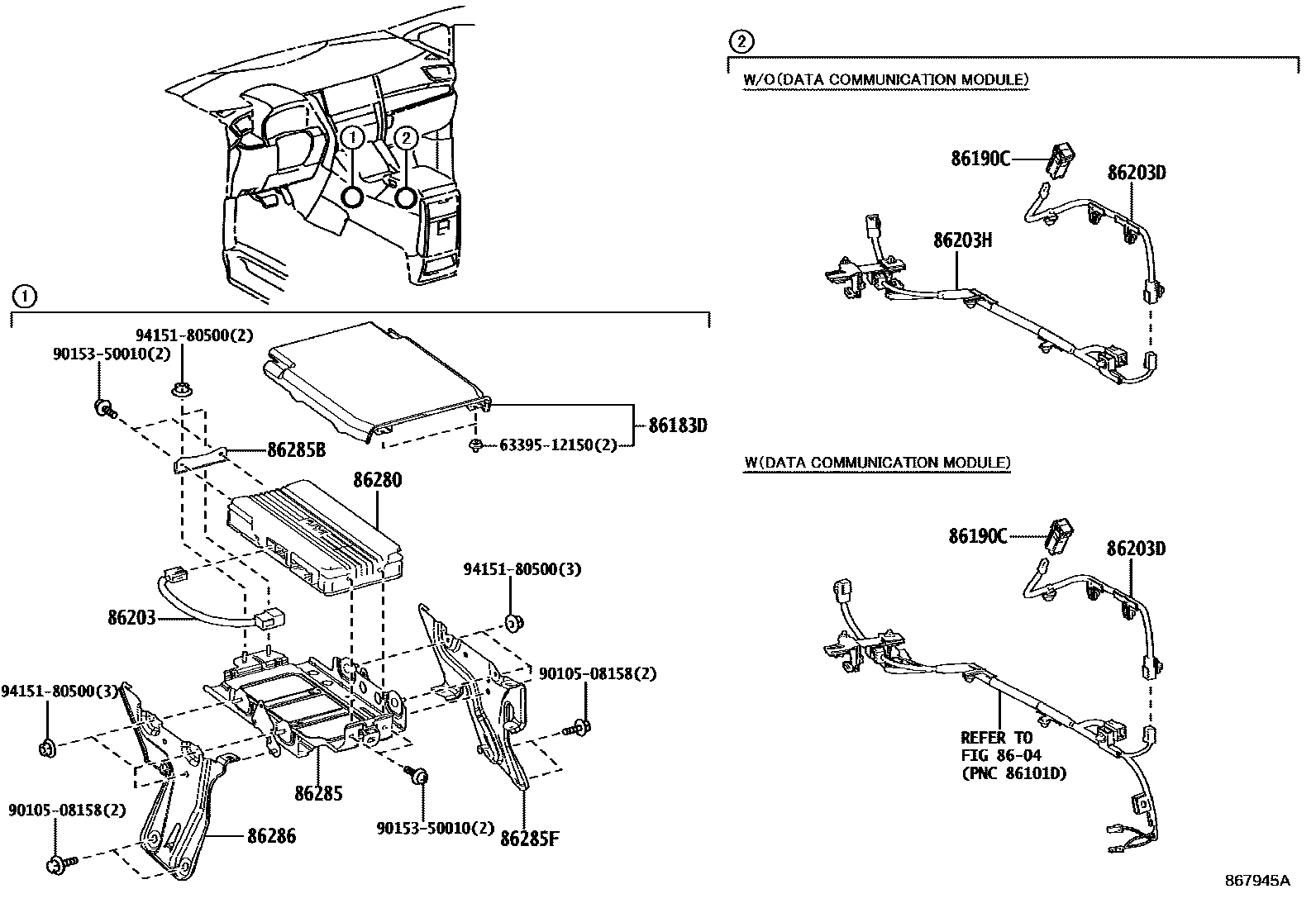

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8604ANTENNA

→ Go to FIG 86-04

86183DCOVER, AUDIO AMPLIFIER

main86183-58020iAYH36,GGH31202001

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-26010iAYH36,GGH31202001-202008

main86190-26011iAYH36,GGH31202009

86203WIRE, RADIO

main86203-58250iAYH36,GGH31202001

86203DWIRE, STEREO COMPONENT, NO.1

main86203-58410iAYH36,GGH31202001

86203HWIRE, STEREO COMPONENT, NO.2

main86203-58300iGGH31..X;AYH36..RHD..X202002

TAIWAN SPEC

main86203-58460iGGH31..V;AYH36..RHD..V202001

TAIWAN SPEC

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WG50iAYH36,GGH31..V202001

main86280-0WG60iAYH36,GGH31..X202002

86285BRACKET, AMPLIFIER, NO.1

main86285-58220iAYH36,GGH31202001

86285BBRACKET, AMPLIFIER, NO.1

main86285-58200iAYH36,GGH31202001

86285FBRACKET, AMPLIFIER, NO.2

main86285-58230iAYH36,GGH31202001

86286BRACKET, AMPLIFIER, NO.2

main86286-58020iAYH36,GGH31202001

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9010508158

main90105-08158

9015350010

main90153-50010

9415180500

main94151-80500

15 parts on this diagram · 3 diagrams in section
