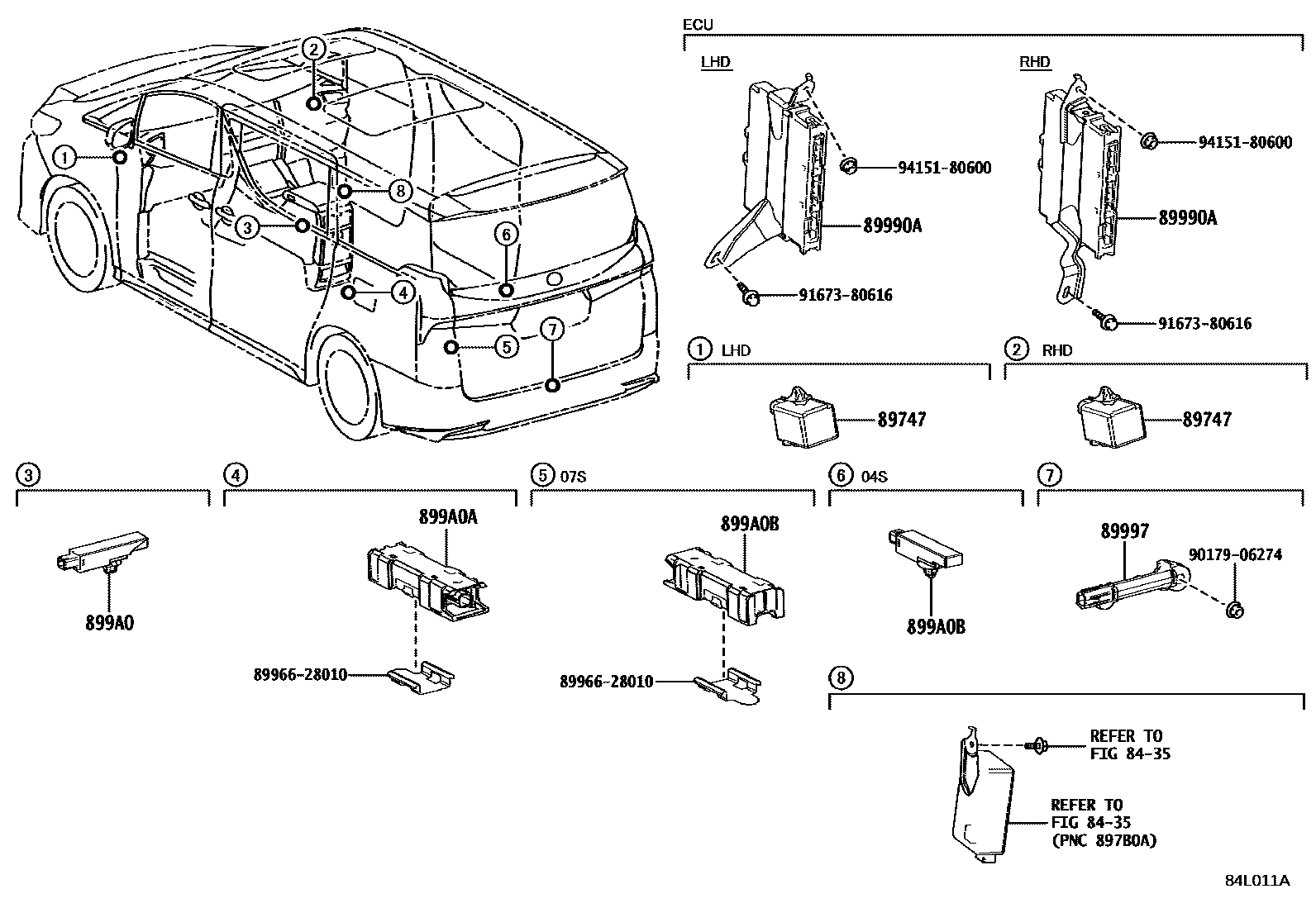

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAYH36,GGH31202001

89990ACOMPUTER ASSY, SMART KEY

main89990-58280iGGH31..LHD..V202001-202206

main89990-58290iGGH31..RHD..V202001-202009

main89990-58300iAYH36..RHD..V202001-202104

main89990-58310iAYH36..LHD..V202001-202206

main89990-58320iGGH31..LHD..X202002-202206

main89990-58330iGGH31..RHD..X202002-202009

main89990-58340iAYH36..RHD..X202002-202206

main89990-58350iAYH36..LHD..X202002-202206

main89990-V2010iGGH31..RHD..V202010-202206

main89990-V2011iGGH31..RHD..V202207-202212

main89990-V2012iGGH31..RHD..V202301

main89990-V2020iGGH31..RHD..X202010-202206

main89990-V2021iGGH31..RHD..X202207-202212

main89990-V2022iGGH31..RHD..X202301

main89990-V2030iAYH36..RHD..V202105-202206

main89990-V2031iAYH36..RHD..V202207

main89990-V2160iGGH31..LHD..V202207

main89990-V2170iAYH36..LHD..V202207

main89990-V2180iGGH31..LHD..X202207

main89990-V2190iAYH36..RHD..X202207

main89990-V2200iAYH36..LHD..X202207

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAYH36,GGH31202001

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iAYH36,GGH31202001

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iAYH36,GGH31202001

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iAYH36,GGH31..X202002

main899A0-60020iAYH36,GGH31..V202001

8996628010BRACKET, OSCILLATOR ELECTRICAL KEY

main89966-28010

9017906274

main90179-06274

9167380616

main91673-80616

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
