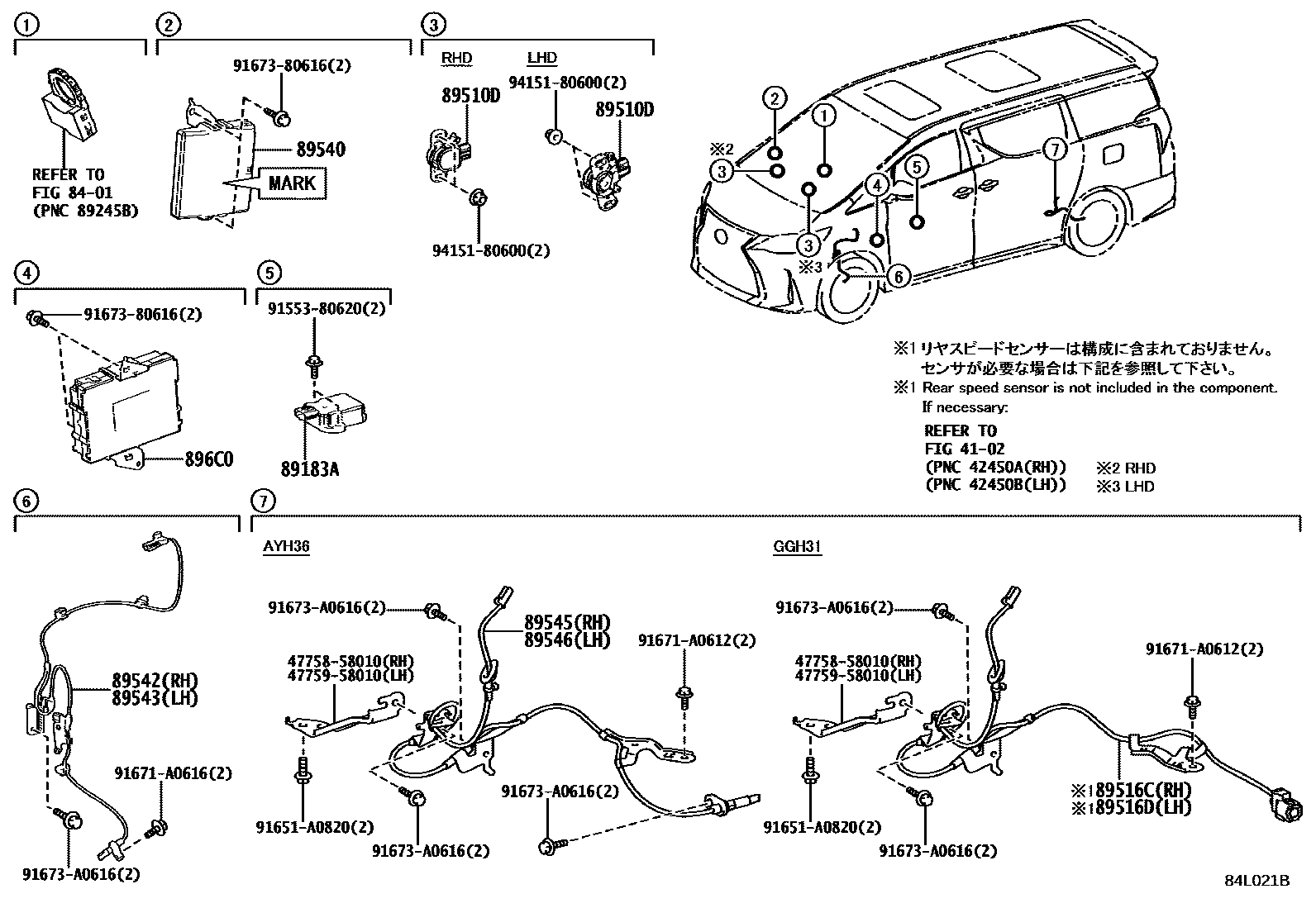

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183ASENSOR, YAWRATE

main89183-48020iAYH36202001

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAYH36..LHD202001

main89510-33030iAYH36..RHD202001

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-58060iGGH31202001

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-58070iGGH31202001

89540COMPUTER ASSY, SKID CONTROL

main89540-58100iAYH36..RHD202001-202105

main89540-58101iAYH36..RHD202105

main89540-58110iAYH36..LHD202001-202105

main89540-58111iAYH36..LHD202105-202111

P/N LABEL=8954058111

main89540-58112iAYH36..LHD202111

P/N LABEL=8954058112

89542SENSOR, SPEED, FRONT RH

main89542-58020iAYH36,GGH31202001

89543SENSOR, SPEED, FRONT LH

main89543-58020iAYH36,GGH31202001

89545SENSOR, SPEED, REAR RH

main89545-58040iAYH36202001

89546SENSOR, SPEED, REAR LH

main89546-58030iAYH36202001

896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET

main896C0-58010iAYH36202001

4775858010BRACKET, WIRE CLAMP, RH NO.1

main47758-58010

4775958010BRACKET, WIRE CLAMP, LH NO.1

main47759-58010

9155380620

main91553-80620

91651A0820

main91651-A0820

91671A0612

main91671-A0612

91671A0616

main91671-A0616

9167380616

main91673-80616

91673A0616

main91673-A0616

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
