SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1COWL 0011 1COWL 0012 1INSTRUMENT PANEL 0013 1INSTRUMENT PANEL 0014 1FRONT CONSOLE BOX 0015 1REAR CONSOLE BOX 0016 1STEERING 0017 1SEAT 0018 1SEAT 0019 1DOOR & ROOF 0020 1FLOOR & BACK DOOR

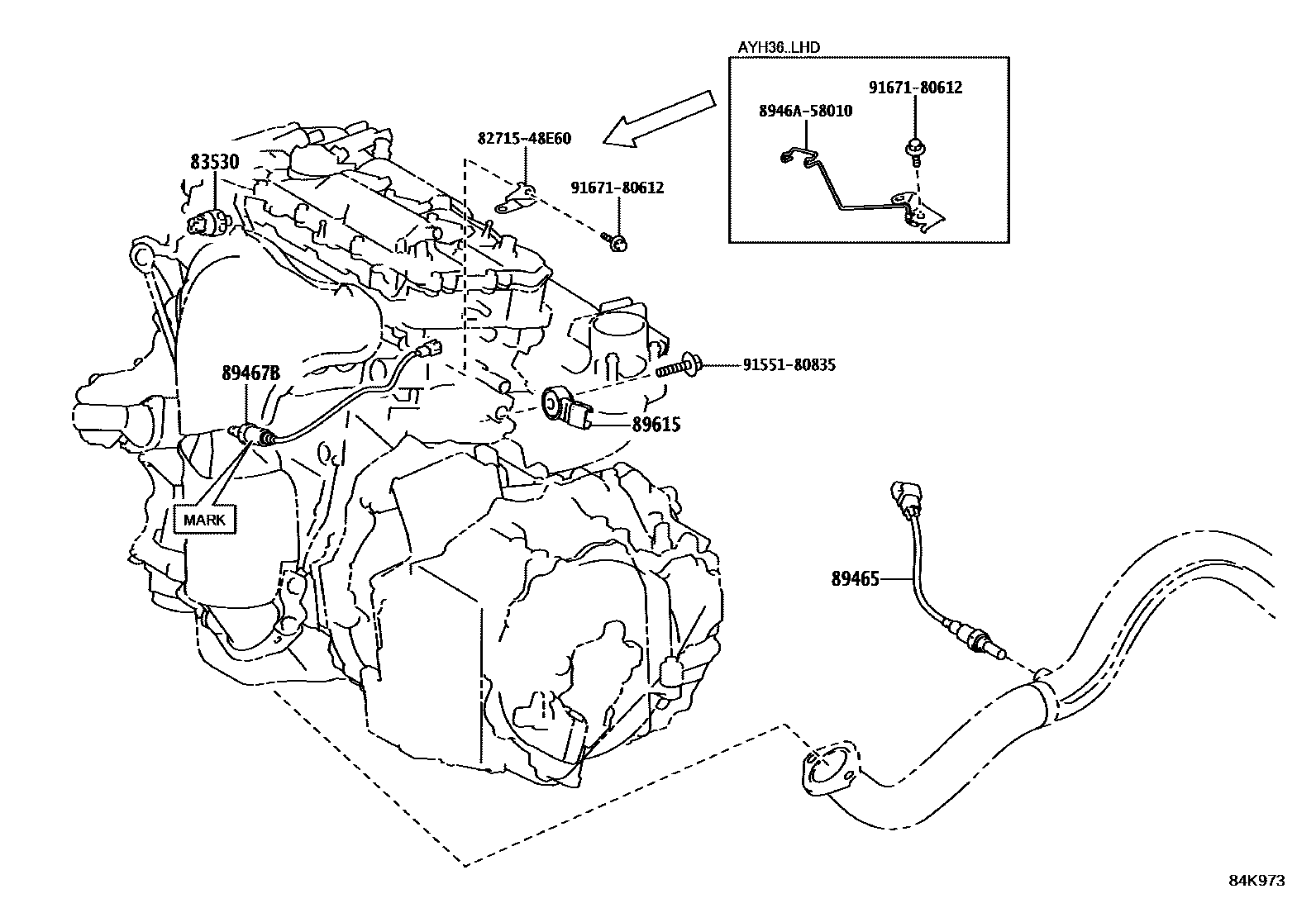

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAYH36,GGH31202001

DENSO

main83530-60020iAYH36,GGH31202001

YAZAKI

89465SENSOR, OXYGEN

main89465-42150iGGH31..6FC202001

main89465-48390iGGH31..8FC202001

main89465-58170iAYH36202001

89467BSENSOR, AIR FUEL RATIO

main89467-48270iAYH36..RHD202001

main89467-48270iAYH36..RHD202001-202111

MARK=89467-48270

main89467-58060iGGH31..6FC202001

main89467-58070iGGH31..8FC202001

89615SENSOR, KNOCK CONTROL

main89615-06010iGGH31202001

(L)

main89615-20090iAYH36202001

(J)

8271548E60BRACKET,WIRING HARNESS CLAMP

main82715-48E60

8946A58010BRACKET, EXHAUST SENSOR CLAMP

main8946A-58010

9155180835

main91551-80835

9167180612

main91671-80612

8 parts on this diagram · 20 diagrams in section
