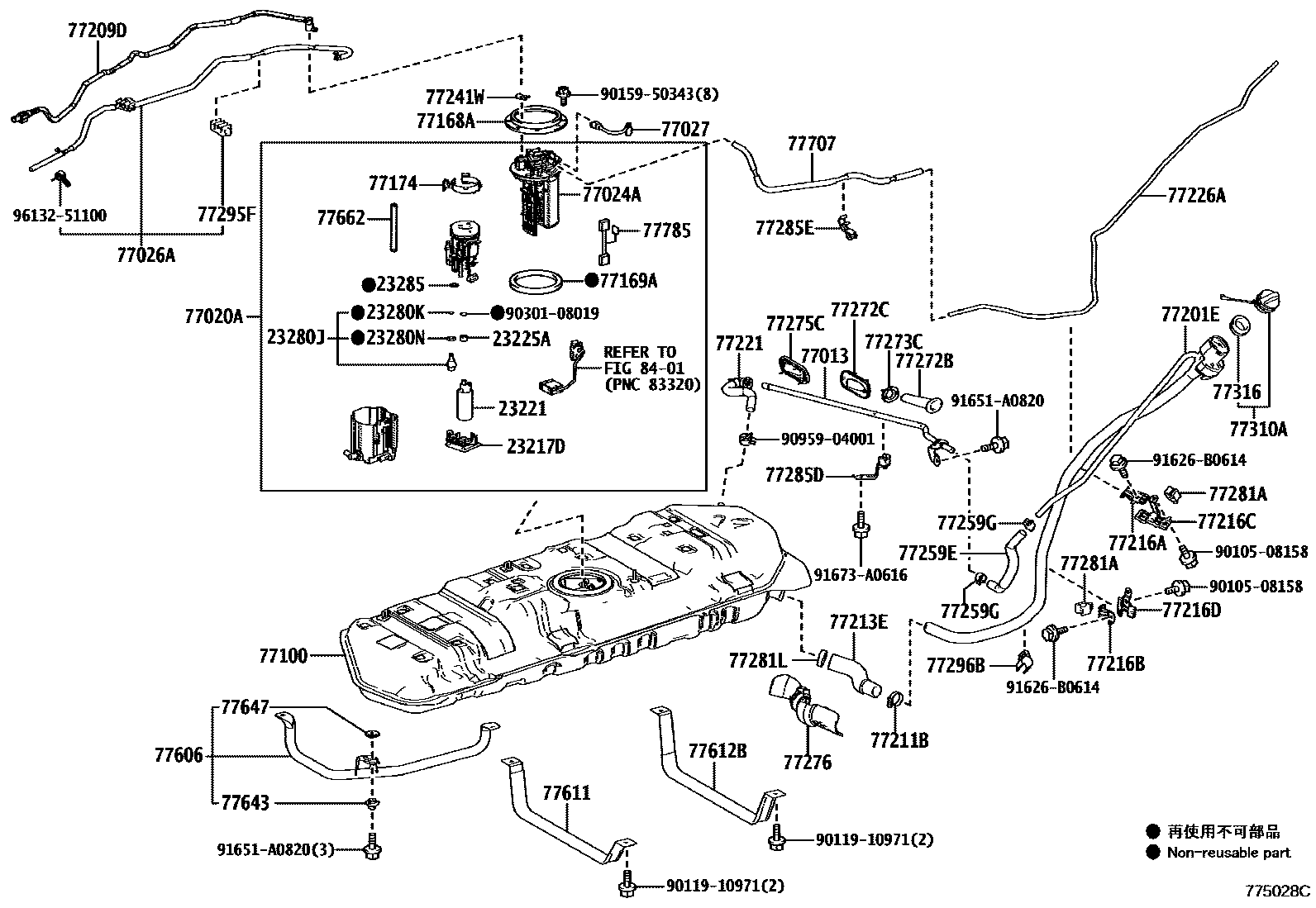

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL PUMP 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL LID OPENER 0012 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-31070i2GRFE..GGH31202001

main23217-31080i2GRFKS..GGH31202001

23221PUMP, FUEL

main23220-36150i2ARFXE..AYH36202001

main23221-31130i2GR#..GGH31202001

23225ASPACER, FUEL PUMP

main23225-21020i2ARFXE..AYH36202001

main23225-31010i2GR#..GGH31202001

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ARFXE..AYH36202001

main23280-31070i2GRFE..GGH31202001

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2GRFKS..GGH31202001

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i2GRFKS..GGH31202001

23285RING, O

main90301-08020i2GRFKS..GGH31202001

main90301-11025i2ARFXE,2GRFE..AYH36,GGH31202001

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-58010iAYH36,GGH31202001

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-58040iGGH31..6FC202001

main77020-58051iAYH36..RHD202001-202205

main77020-58070iGGH31..8FC202001

main77020-58090iAYH36..LHD202001

main77020-V2040iAYH36..RHD202205

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-58020iGGH31..6FC202001

main77024-58051iAYH36..RHD202001

main77024-58060iGGH31..8FC202001

main77024-58080iAYH36..LHD202001

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-58030iGGH31202001-202205

main77026-58040iAYH36..RHD202001-202205

main77026-V2011iAYH36..RHD202205-202207

main77026-V2040iGGH31202205

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-58010iGGH31;AYH36..RHD202001

77100TANK ASSY, FUEL

main77001-58040iGGH31202001-202205

main77001-58060iAYH36..RHD202001

main77001-58070iAYH36..LHD202001

main77001-V2100iGGH31202205

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iAYH36,GGH31202001

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iAYH36..RHD202001-202205

main77169-53010iGGH31;AYH36..LHD202001

77174SUPPORT, FUEL SUCTION, NO.1

main77174-28010iGGH31..6FC202001

main77174-58010iGGH31..8FC202001

main77174-72020iAYH36202001

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-58070iAYH36..LHD202001

main77201-58080iGGH31;AYH36..RHD202001-202205

main77201-V2040iGGH31;AYH36..RHD202205

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-58010iGGH31..6FC202001-202205

main77209-58020iAYH36..RHD202001-202205

main77209-58030iGGH31..8FC202001-202205

main77209-58050iAYH36..LHD202001

main77209-V2060iGGH31..6FC202205

main77209-V2070iGGH31..8FC202205

main77209-V2090iAYH36..RHD202205

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-40007iAYH36,GGH31202001

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-58030iGGH31;AYH36..RHD202001-202205

main77213-58040iAYH36..LHD202001

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-58030iGGH31;AYH36..RHD202001

main77216-58130iAYH36..LHD202001

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-58040iGGH31;AYH36..RHD202001

main77216-58140iAYH36..LHD202001

77216CSUPPORT, FUEL TANK FILLER PIPE NO.3

main77217-58030iGGH31;AYH36..RHD202001

main77217-58080iAYH36..LHD202001

77216DSUPPORT, FUEL TANK FILLER PIPE NO.4

main77217-58040iGGH31;AYH36..RHD202001

main77217-58090iAYH36..LHD202001

77221TUBE, FUEL TANK BREATHER, NO.1

main77015-58010iAYH36..LHD202001

main77221-58010iGGH31;AYH36..RHD202001

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-58010iGGH31;AYH36..RHD202001

main77226-58030iAYH36..LHD202001

77241WCLIP, TUBE JOINT

main77241-33011iAYH36,GGH31202001

77259EHOSE, FUEL

main77259-58040iGGH31;AYH36..RHD202001

main77259-58050iAYH36..LHD202001

77259GCLIP, FUEL HOSE

main90959-04001×2iAYH36,GGH31202001

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-58010iAYH36,GGH31202001

77272CSUPPORT, BREATHER TUBE, NO.3

main77272-58020iAYH36,GGH31202001

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-58010iAYH36,GGH31202001

77275CSUPPORT, BREATHER TUBE, NO.4

main77273-58020iAYH36,GGH31202001

77276PROTECTOR, FUEL HOSE

main77276-58040iAYH36,GGH31202001

77281ACLAMP, FUEL FILLER PIPE

main77281-30110×2iGGH31;AYH36..RHD202001

main77281-58010×2iAYH36..LHD202001

77281LCLAMP, FUEL HOSE

main90460-46005iAYH36,GGH31202001

77285DCLAMP, FUEL TUBE, NO.1

main77285-58030iAYH36,GGH31202001

77285ECLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-28040iGGH31202001

77295FGROMMET, FUEL HOSE

main77295-35260iGGH31202001

main77295-58010×2iAYH36..LHD202001

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-58010iGGH31;AYH36..RHD202001

main77296-58020iAYH36..LHD202001

77310ACAP ASSY, FUEL TANK

main77300-12020supersedes 77300-33080iAYH36..LHD202001

TAIWAN SPEC

77316GASKET, FUEL TANK CAP

main77316-52040supersedes 77316-75020iAYH36..LHD202001

TAIWAN SPEC

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-58010iAYH36,GGH31202001

77611BAND, FUEL TANK

main77601-58010iGGH31202001

main77601-58030iAYH36202001

77612BBAND, FUEL TANK, NO.2

main77602-58010iGGH31202001

main77602-58030iAYH36202001

77643RETAINER, FUEL TANK PROTECTOR

main51489-28020iAYH36,GGH31202001

77647RETAINER, FUEL TANK PROTECTOR, SIDE

main51499-28030iAYH36,GGH31202001

77662COVER, FUEL TANK GAGE

main77662-53010iAYH36,GGH31202001

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-58010iGGH31;AYH36..RHD202001

77785HARNESS, FUEL PUMP

main77785-28030iAYH36..RHD202001

main77785-58010iGGH31..6FC202001

main77785-58020iGGH31..8FC202001

main77785-58030iAYH36..LHD202001

8401

9010508158

main90105-08158

9011910971

main90119-10971

9015950343

main90159-50343

9030108019

main90301-08019

9095904001

main90959-04001

91626B0614

main91626-B0614

91651A0820

main91651-A0820

91673A0616

main91673-A0616

9613251100

main96132-51100

60 parts on this diagram · 12 diagrams in section
