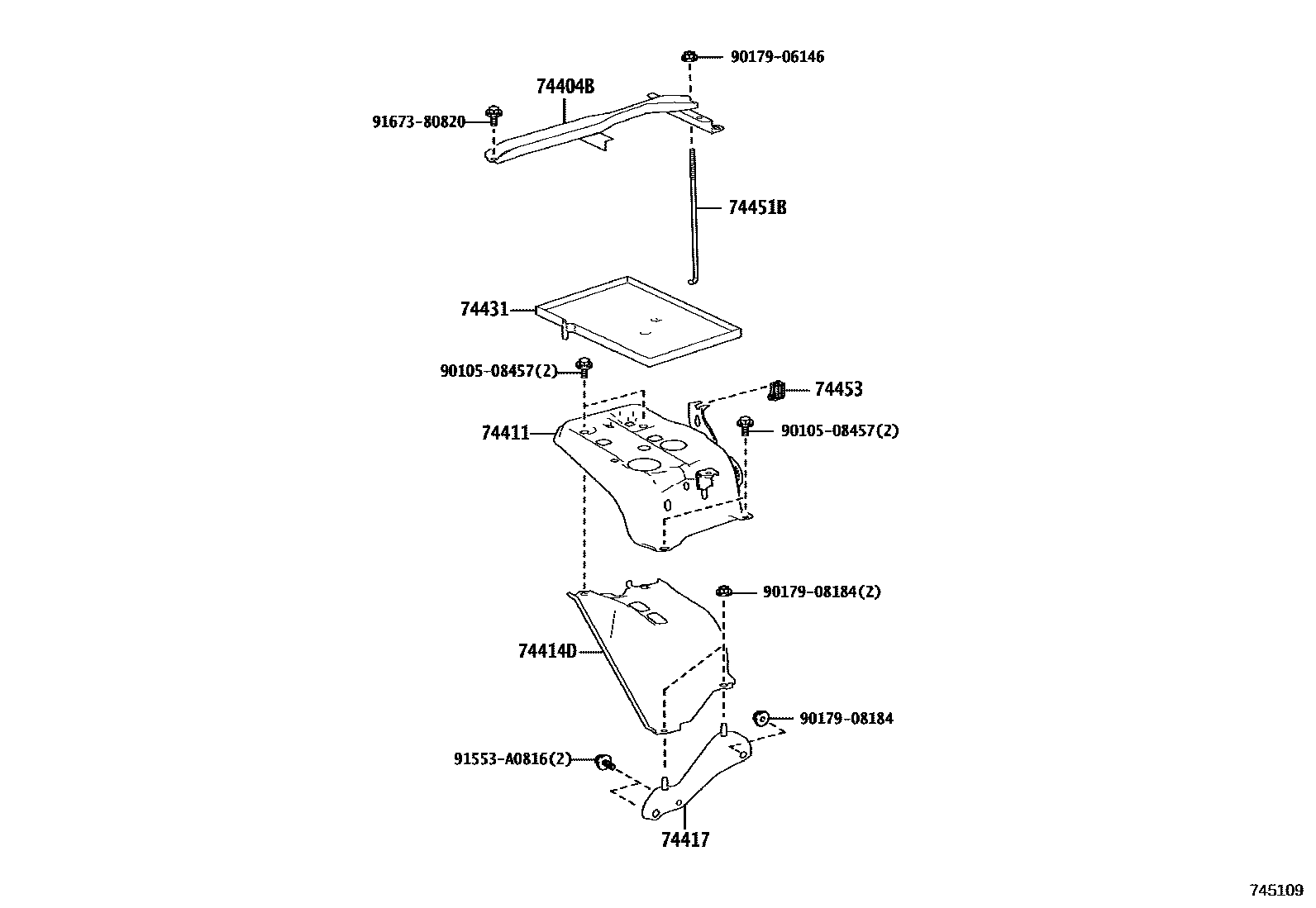

BATTERY CARRIER

0001 1 0002 1

74404BCLAMP SUB-ASSY, BATTERY

main74404-58050iGGH31202001

main74404-58070iAYH36202001

74411CARRIER, BATTERY

main74410-28010iGGH31202001

74414DSUPPORT, BATTERY CARRIER

main74414-58030iGGH31202001

74417BRACKET, BATTERY CARRIER

main74417-58030iGGH31202001

74431TRAY, BATTERY

main74431-42090iGGH31202001

74451BBOLT, BATTERY CLAMP

main74451-52010iGGH31202001

main74451-58040iAYH36202001

74453SUPPORT, BATTERY CARRIER

main74454-28030iGGH31202001

9010508457

main90105-08457

9017906146

main90179-06146

9017908184

main90179-08184

91553A0816

main91553-A0816

9167380820

main91673-80820

12 parts on this diagram · 2 diagrams in section
