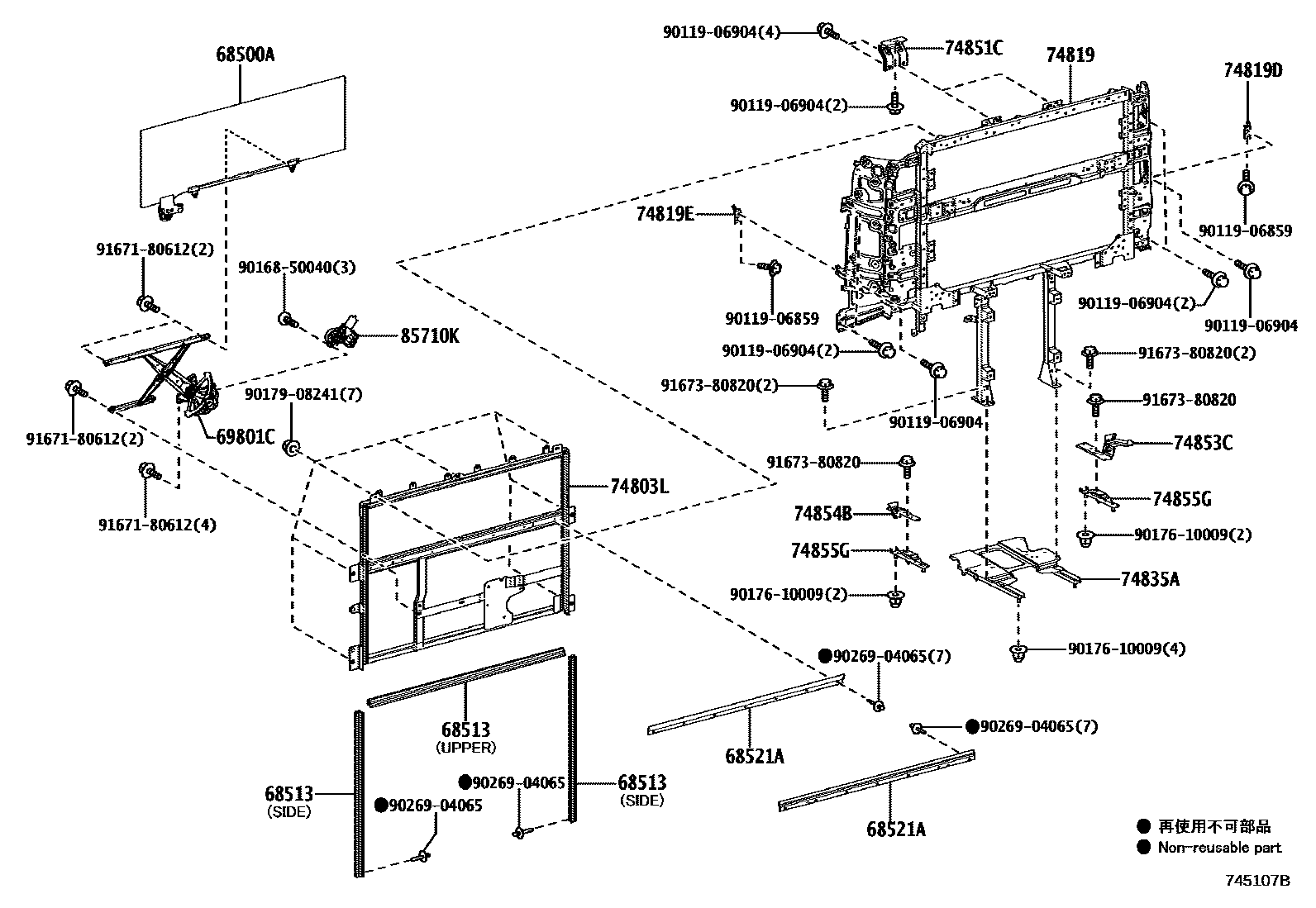

SEPARATOR & SEPARATOR CURTAIN

0001 1FRAME & GLASS 0002 1TRIM BOARD(FRONT) 0003 1TRIM BOARD(REAR)

68500AWINDOW ASSY, SEPARATION

main68500-58010iAYH36,GGH31..X202002

68513RUN, SEPARATION WINDOW

main68513-58010iAYH36,GGH31..X202002

UPPER

main68513-58020iAYH36,GGH31..X202002

SIDE

68521AWEATHERSTRIP, SEPARATION DOOR WINDOW

main68521-58010iAYH36,GGH31..X202002

sub68521-V2010

69801CREGULATOR SUB-ASSY, SEPARATOR WINDOW

main69801-52140iAYH36,GGH31..X202002

74803LGUARD SUB-ASSY, SEPARATOR WINDOW

main74803-58010iAYH36,GGH31..X202002

74819BRACKET, SEPARATOR FRAME

main74819-58010iAYH36,GGH31..X202002

74819DBRACKET, SEPARATOR BOARD, RH

main74819-58020iAYH36,GGH31..X202002

74819EBRACKET, SEPARATOR BOARD, LH

main74819-58030iAYH36,GGH31..X202002

74835ABRACKET, SEPARATOR

main74835-58010iAYH36,GGH31..X202002

74851CBRACKET, SEPARATOR, UPPER RH

main74851-58030iAYH36,GGH31..X202002

74853CBRACKET, SEPARATOR, LOWER RH

main74853-58010iAYH36,GGH31..X202002

74854BBRACKET, SEPARATOR, LOWER LH

main74854-58010iAYH36,GGH31..X202002

74855GBAR, REAR SEPARATOR, NO.1

main74855-58010iAYH36,GGH31..X202002

85710KMOTOR ASSY, POWER WINDOW REGULATOR

main85710-58070iAYH36,GGH31..X202002

9011906859

main90119-06859

9011906904

main90119-06904

9016850040

main90168-50040

9017610009

main90176-10009

9017908241

main90179-08241

9026904065

main90269-04065

9167180612

main91671-80612

9167380820

main91673-80820

22 parts on this diagram · 3 diagrams in section
