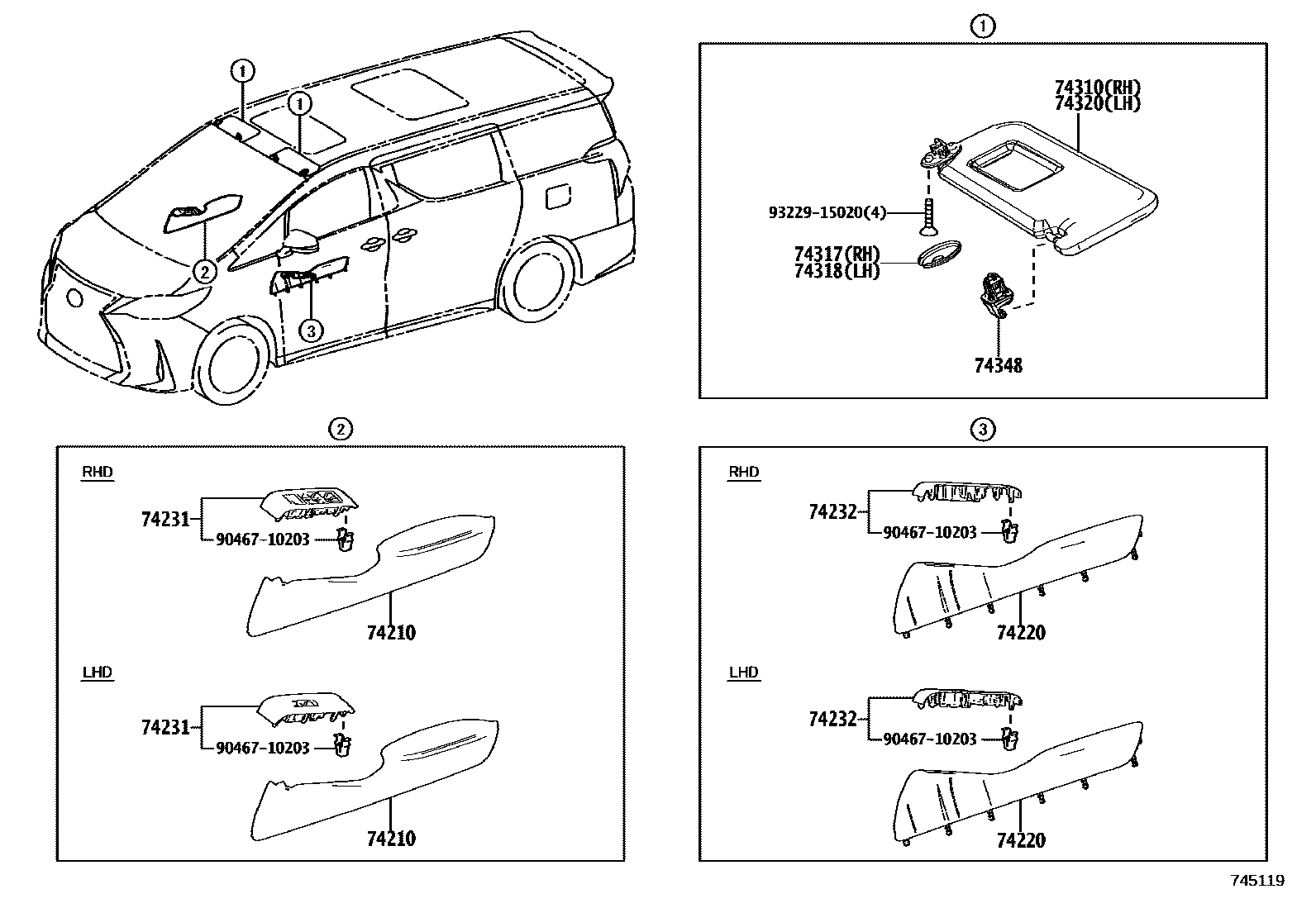

ARMREST & VISOR

0001 1ARMREST & VISOR 0002 1ASSIST GLIP 0003 1ASSIST GLIP

74210ARMREST ASSY, FRONT, RH

main74210-58020-C1iAYH36,GGH31202001

BLACK,TRIM0#,2#

74220ARMREST ASSY, FRONT, LH

main74220-58020-C1iAYH36,GGH31202001

BLACK,TRIM0#,2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-58360iAYH36,GGH31..LHD202001

main74231-58370iAYH36,GGH31..RHD202001

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-58210iAYH36,GGH31..LHD202001

main74232-58220iAYH36,GGH31..RHD202001

74310VISOR ASSY, RH

main74310-58131-C3iAYH36,GGH31..RHD202001

BLACK,TRIM0#,2#

main74310-58141-C3iAYH36..LHD202001

BLACK,TRIM0#,2#

main74310-58160-C3iGGH31..LHD202001

BLACK,TRIM0#,2#

74317COVER, VISOR BRACKET, RH

main74317-60020-C2iAYH36,GGH31202001

BLACK,TRIM0#,2#

74318COVER, VISOR BRACKET, LH

main74317-60020-C2iAYH36,GGH31202001

BLACK,TRIM0#,2#

74320VISOR ASSY, LH

main74320-58081-C3iAYH36,GGH31..RHD202001

BLACK,TRIM0#,2#

main74320-58100-C3iAYH36..LHD202001

BLACK,TRIM0#,2#

main74320-58110-C1iAYH36..LHD202001-202009

BLACK,TRIM0#,2#

74348HOLDER, VISOR

main74348-33040-C2iAYH36,GGH31202001

BLACK,TRIM0#,2#

9046710203

main90467-10203

9322915020

main93229-15020

11 parts on this diagram · 3 diagrams in section
