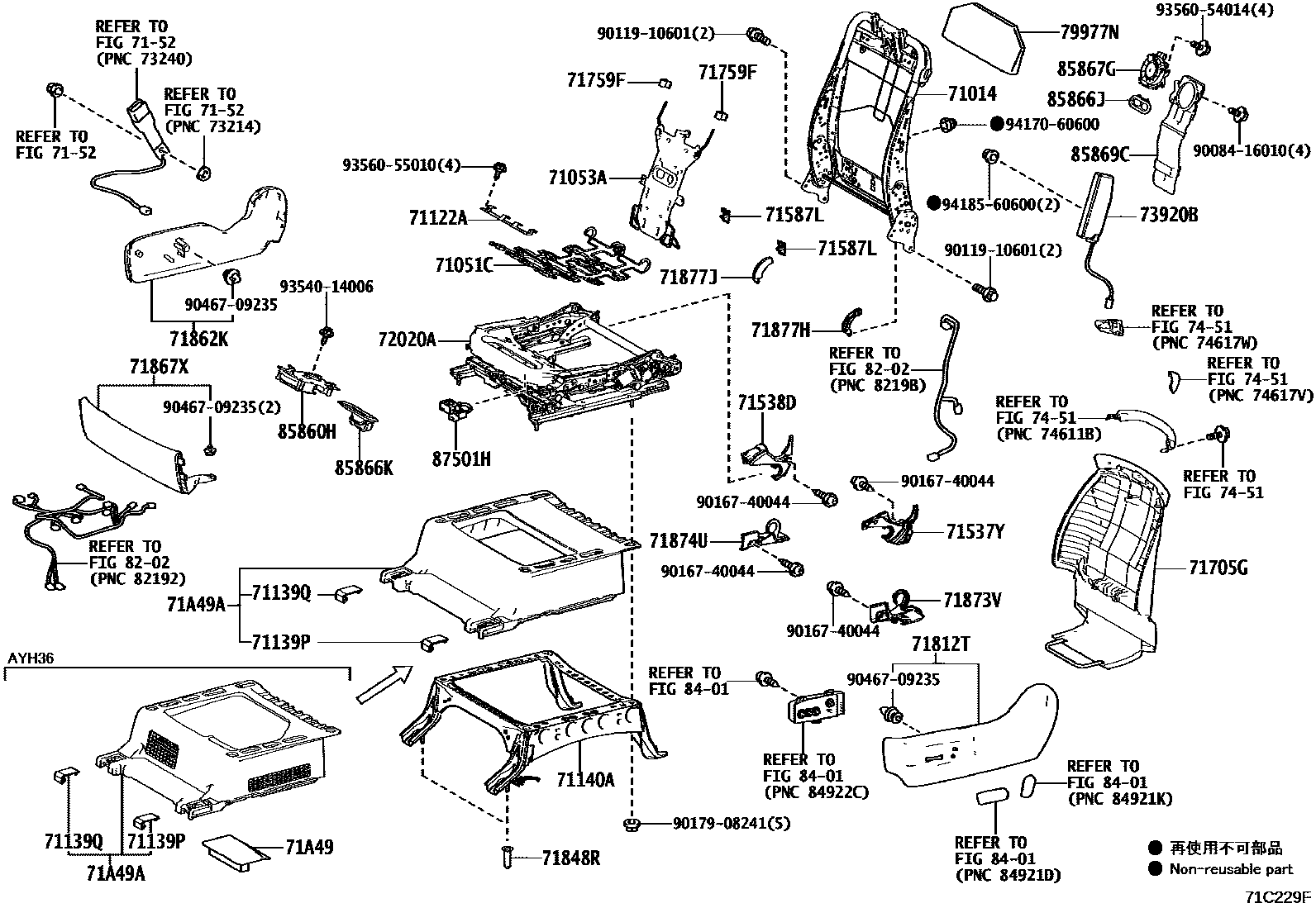

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1DRIVER SIDE(COVER,PAD&HEADRES0003 1PASSENGER SIDE 0004 1PASSENGER SIDE(COVER,PAD&HEAD0005 1DRIVER SIDE 0006 1DRIVER SIDE(COVER,PAD&HEADRES0007 1PASSENGER SIDE 0008 1PASSENGER SIDE(COVER,PAD&HEAD0009 1SEAT LEG COVER 0010 1LH SIDE 0011 1LH SIDE(COVER,PAD & HEADREST)0012 1RH SIDE 0013 1RH SIDE(COVER,PAD & HEADREST)0014 1SEAT LEG COVER 0015 1SEAT COVER EDGE WIRE & CLIP

71014FRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-58080iAYH36,GGH31..RHD..V202001

main71014-58090iAYH36,GGH31..LHD..V202001

main71014-58130iAYH36,GGH31..X202002

71051CSPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-58030iAYH36,GGH31..V202001

main71051-78020iAYH36,GGH31..X202002

71053SPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-52050iAYH36,GGH31..X202002

main71053-58020iAYH36,GGH31..V202001

71053ASPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-52050iAYH36,GGH31..X202002

main71053-58020iAYH36,GGH31..V202001

71122ABRACKET, FRONT SEAT CUSHION, LH

main71121-58040iAYH36,GGH31..V202001

71139PCOVER, FRONT SEAT LEG, LH OUTER

main71139-58340-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

71139QCOVER, FRONT SEAT LEG, LH INNER

main71139-58340-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

71140ALEG ASSY, FRONT SEAT, LH

main71140-58080iAYH36,GGH31202001

7152

71537YPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-22040-C0iAYH36,GGH31..RHD..V202001

BLACK,TRIM0#,2#

main71537-47010-C0iAYH36,GGH31..LHD..V202001

BLACK,TRIM0#,2#

71538DPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-22020-C0iGGH31..V;AYH36..RHD..V202001

BLACK,TRIM0#,2#

main71538-47010-C0iAYH36..LHD..V202001

BLACK,TRIM0#,2#

71587LPROTECTOR, FRONT SEATBACK EDGE, LH

main71587-52030×2iAYH36,GGH31202001

71705GBOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-58030-C1iAYH36,GGH31..V202001

BLACK,TRIM0#,2#

71759FHOOK, FRONT SEATBACK, LH

main71759-47011×2iAYH36,GGH31202001

71812TSHIELD, FRONT SEAT CUSHION, LH

main71812-58110-C0iAYH36,GGH31..RHD..V202001

BLACK,TRIM0#,2#

main71812-58120-C0iAYH36,GGH31..X;AYH36,GGH31..LHD..V202001

BLACK,TRIM0#,2#

71848RCAP, FRONT SEAT ADJUSTER COVER, LH NO.1

main71848-52040×2iAYH36,GGH31202001

71862KSHIELD, FRONT SEAT CUSHION, INNER LH

main71862-58080-C0iAYH36,GGH31..RHD..V202001

BLACK,TRIM0#,2#

main71862-58090-C0iAYH36,GGH31..X;AYH36,GGH31..LHD..V202001

BLACK,TRIM0#,2#

71867XSHIELD, FRONT SEAT CUSHION, FRONT LH

main71867-58060-C0iAYH36,GGH31..LHD..V202001

BLACK,TRIM0#,2#

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-60030iAYH36,GGH31..V202001

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-60110iAYH36,GGH31..V202001

71877HCOVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

main71875-60210-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

71877JCOVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)

main71876-60210-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

71A49COVER, FRONT SEAT LEG, NO.1

main71149-58200-C0iAYH36202001

BLACK,TRIM0#,2#

main71149-58260-C0iGGH31..LHD..X202002

BLACK,TRIM0#,2#

71A49ACOVER, FRONT SEAT LEG(FOR LH SEAT)

main71149-58260-C0iGGH31..RHD;GGH31..LHD..V202001

BLACK,TRIM0#,2#

main71149-58270-C0iAYH36202001

BLACK,TRIM0#,2#

72020AADJUSTER ASSY, FRONT SEAT, LH

main72020-58020iAYH36,GGH31..RHD..V202001

main72020-58030iAYH36,GGH31..LHD..V202001

main72020-58130iAYH36,GGH31..X202002

73920BAIRBAG ASSY, FRONT SEAT, LH

main73920-58040iAYH36,GGH31202001

7451

79977NFELT, SEATBACK

main79977-58030×2iAYH36,GGH31202001

8202

8401

85860HBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85860-58040iAYH36,GGH31..V202001

85866JDUCT, SEATBACK CLIMATE CONTROL, LH

main85866-33020iAYH36,GGH31..V202001

85866KDUCT, SEAT CUSHION CLIMATE CONTROL, LH

main85866-58030iAYH36,GGH31..V202001

85867GBLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-33020iAYH36,GGH31..V202001

85869CCOVER, SEATBACK CLIMATE CONTROL, LH

main85869-58010iAYH36,GGH31..V202001

87501HCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-76011iAYH36,GGH31..V202001

9008416010

main90084-16010

9011910601

main90119-10601

9016740044

main90167-40044

9017908241

main90179-08241

9046709235

main90467-09235

9354014006

main93540-14006

9356054014

main93560-54014

9356055010

main93560-55010

9417060600

main94170-60600

9418560600

main94185-60600

46 parts on this diagram · 15 diagrams in section
