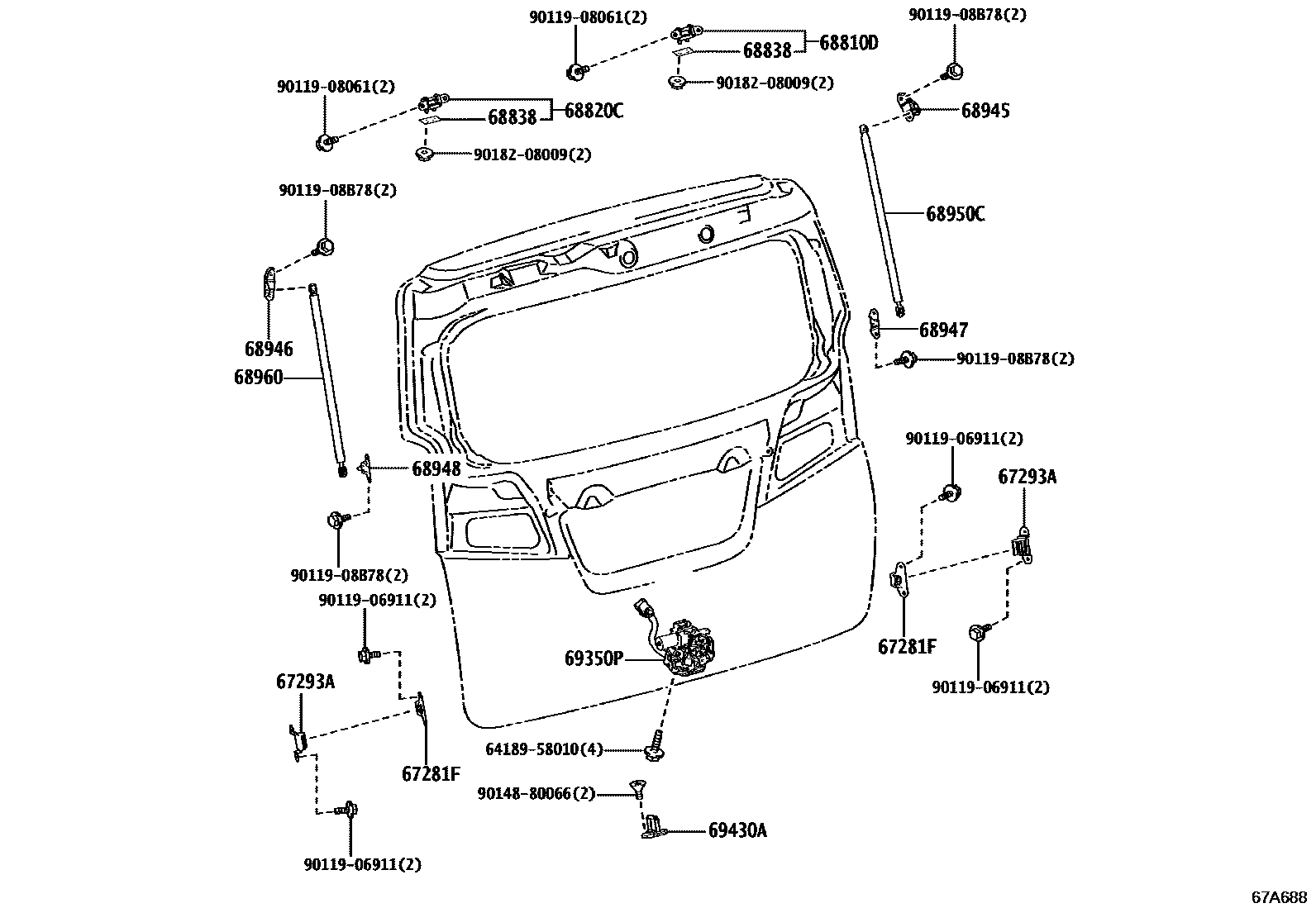

BACK DOOR LOCK & HINGE

0001 1 0002 1POWER BACK DOOR PARTS

67281FSTOPPER, BACK DOOR, LOWER

main67281-58020×2iAYH36,GGH31202001

67293ACUSHION, BACK DOOR STOPPER

main67293-58020×2iAYH36,GGH31202001

68810DHINGE ASSY, BACK DOOR, RH

main68810-26011iAYH36,GGH31202001-202302

main68810-26030iAYH36,GGH31202302

68820CHINGE ASSY, BACK DOOR, LH

main68820-26011iAYH36,GGH31202001-202302

main68820-26030iAYH36,GGH31202302

68838PAD, BACK DOOR HINGE, NO.1

main68838-26030×2iAYH36,GGH31202001

T=1.1

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-58010iAYH36,GGH31202001

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-58010iAYH36,GGH31202001

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-58010iAYH36,GGH31202001

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-58010iAYH36,GGH31202001

68950CSTAY ASSY, BACK DOOR, RH

main68950-58400iAYH36,GGH31202001

68960STAY ASSY, BACK DOOR, LH

main68960-58400iAYH36,GGH31202001

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-58031iAYH36,GGH31202001

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-48030iAYH36,GGH31202001

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

9011906911

main90119-06911

9011908061

main90119-08061

9011908B78

main90119-08B78

9014880066

main90148-80066

9018208009

main90182-08009

19 parts on this diagram · 2 diagrams in section
