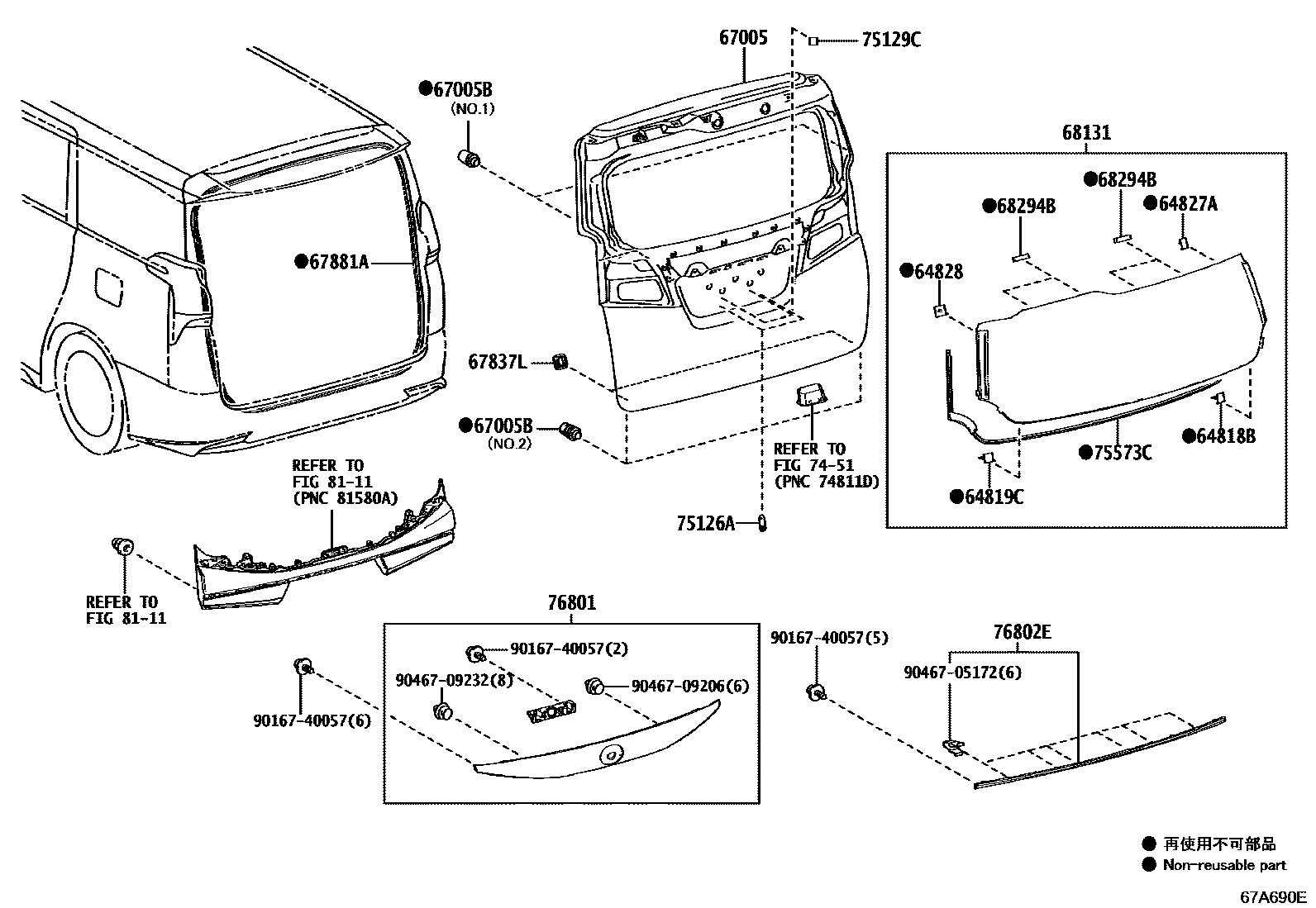

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-58030iAYH36,GGH31202001

64819CSPACER, BACK DOOR GLASS, NO.2

main64819-58030iAYH36,GGH31202001

64827ACLIP, BACK WINDOW GLASS, RH

main64827-58030iAYH36,GGH31202001

64828CLIP, BACK WINDOW GLASS, LH

main64828-58030iAYH36,GGH31202001

67005PANEL SUB-ASSY, BACK DOOR

main67005-58210supersedes 67005-58220iAYH36..LHD202001

TAIWAN SPEC

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09148×2iAYH36,GGH31202001

NO.2

main90541-10034×2iAYH36,GGH31202001

NO.1

67837LSEAL, DOOR DUST PROOF

main67837-58010×2iAYH36,GGH31202001

67881AWEATHERSTRIP, BACK DOOR

main67881-58040iAYH36,GGH31202001

68131GLASS, BACK DOOR

main68105-58190iGGH31..RHD202001

main68105-58200iAYH36;GGH31..LHD202001

main68105-58180iAYH36..LHD202001-202003

TAIWAN SPEC

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-26030×4iAYH36,GGH31202001

7451

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-78010×2iAYH36..LHD202001

75129CCUSHION, REAR LICENCE PLATE

main75129-28020×2iAYH36,GGH31202001

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-58020iAYH36,GGH31202001

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-58270-A0iAYH36,GGH31202001

WHITE PEARL CS.,070

main76801-58270-C0iAYH36,GGH31202001

BLACK,202

76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER

main76802-58030iAYH36,GGH31202001

8111

9016740057

main90167-40057

9046705172

main90467-05172

9046709206

main90467-09206

9046709232

main90467-09232

21 parts on this diagram · 2 diagrams in section
