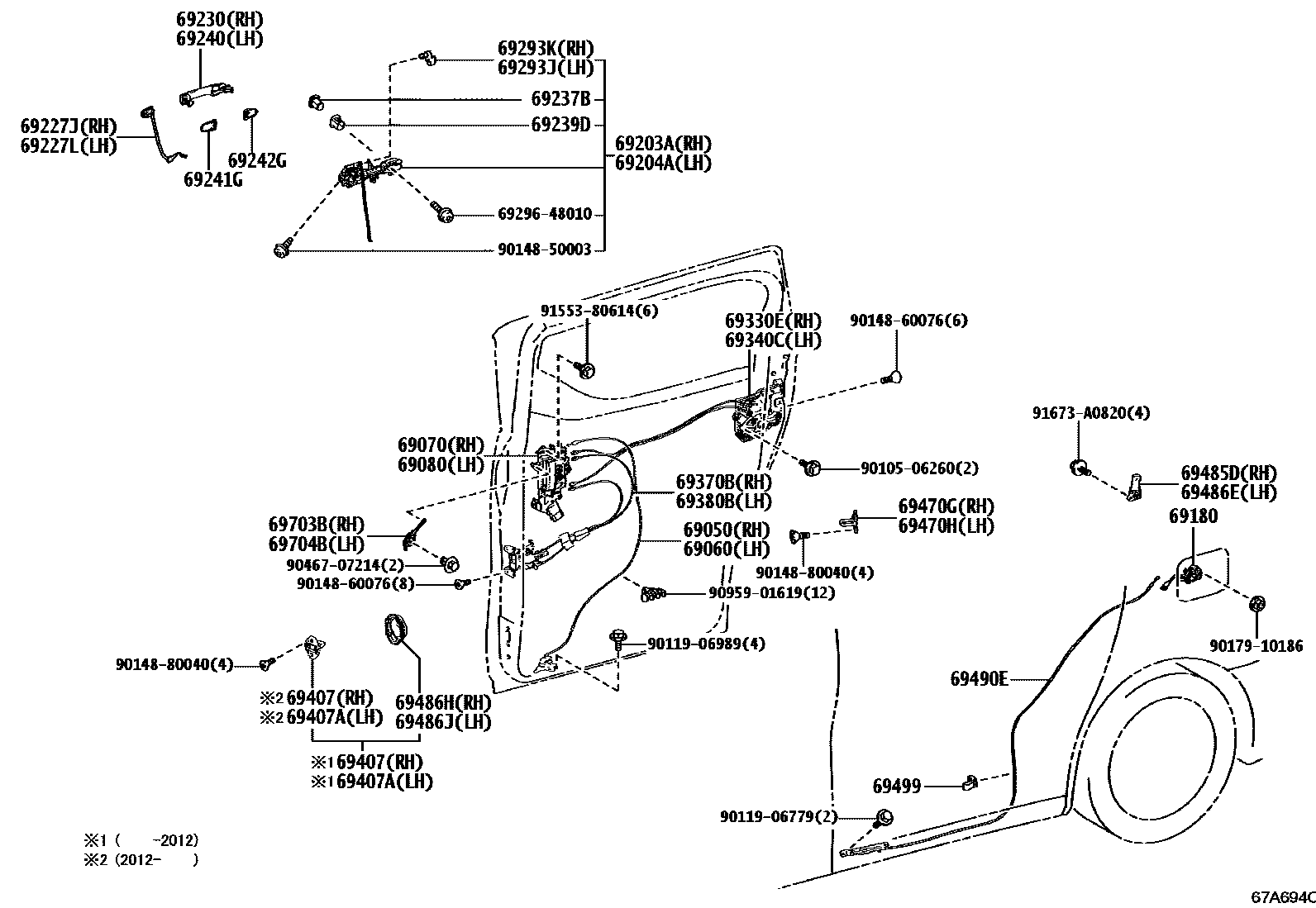

REAR DOOR LOCK & HANDLE

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69305-58010iAYH36,GGH31202001

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69306-58010iAYH36,GGH31202001

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-58130-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-58120-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-58020iAYH36,GGH31202001

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-58030iAYH36,GGH31202001

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-58030iAYH36,GGH31202001

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-58021iAYH36,GGH31202001

*CR

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-58021iAYH36,GGH31202001

*CR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69213-58060iAYH36,GGH31202001

PLATED

69237BNUT, REAR DOOR HANDLE

main69237-30010×2iAYH36,GGH31202001

69239DBUSH, REAR DOOR HANDLE

main69239-30010×2iAYH36,GGH31202001

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69213-58060iAYH36,GGH31202001

PLATED

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69242-52030×2iAYH36,GGH31202001

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-52020×2iAYH36,GGH31202001

69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH

main69293-28040iAYH36,GGH31202001

69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH

main69293-28030iAYH36,GGH31202001

69330ELOCK ASSY, SLIDE DOOR, RH

main69200-58032iAYH36,GGH31202001

69340CLOCK ASSY, SLIDE DOOR, REAR LH

main69300-58052iAYH36,GGH31202001

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-58060supersedes 69370-58070iAYH36..LHD; GGH31;AYH36..RHD202001

TAIWAN SPEC

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-58050supersedes 69380-58060iAYH36..LHD; GGH31;AYH36..RHD202001

TAIWAN SPEC

69407STRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT RH

main69407-26010iAYH36,GGH31202001-202101

main69440-08050iAYH36,GGH31202101

69407ASTRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT LH

main69407-26010iAYH36,GGH31202001-202101

main69440-08050iAYH36,GGH31202101

69470GPLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, RH

main69470-58010iAYH36,GGH31202001

69470HPLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, LH

main69470-58010iAYH36,GGH31202001

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-58030iAYH36,GGH31202001

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-58050iAYH36,GGH31202001

69486HCOVER, SLIDE DOOR FRONT LOCK STRIKER, RH

main69486-15020iAYH36,GGH31202001

69486JCOVER, SLIDE DOOR FRONT LOCK STRIKER, LH

main69486-15020iAYH36,GGH31202001

69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN

main69490-58030iAYH36,GGH31202001

69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE

main69499-28020iAYH36,GGH31202001

69703BLINK SUB-ASSY, REAR DR LOCKING CONT W/CHILD LOCK LEVER, RH

main69703-58010iAYH36,GGH31202001

69704BLINK SUB-ASSY, REAR DR LOCKING CONT W/CHILD LOCK LEVER, LH

main69704-58010iAYH36,GGH31202001

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9010506260

main90105-06260

9011906779

main90119-06779

9011906989

main90119-06989

9014850003

main90148-50003

9014860076

main90148-60076

9014880040

main90148-80040

9017910186

main90179-10186

9046707214

main90467-07214

9095901619

main90959-01619

9155380614

main91553-80614

91673A0820

main91673-A0820

45 parts on this diagram · 1 diagram in section
