FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67673GARNISH, DOOR FRAME, LOWER RH
67674GARNISH, DOOR FRAME, LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
68192CSEAL, FRONT DOOR BELT, FRONT RH
68193CSEAL, FRONT DOOR BELT, FRONT LH
68194BSEAL, FRONT DOOR BELT, REAR RH
68195BSEAL, FRONT DOOR BELT, REAR LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
0 OR 1PIECE,REF.ILL.
75922MTAPE, BLACK OUT, NO.1 LH
0 OR 1PIECE,REF.ILL.
75923BTAPE, BLACK OUT, NO.2 RH
0 OR 1PIECE,REF.ILL.
75924BTAPE, BLACK OUT, NO.2 LH
0 OR 1PIECE,REF.ILL.
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
6777144010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-44010
9010908295
main90109-08295
9011906A11
main90119-06A11
9015960303
main90159-60303
9018906227
main90189-06227
9095001841
main90950-01841
9095001A02
main90950-01A02
9095001A05
main90950-01A05
9415180600
main94151-80600

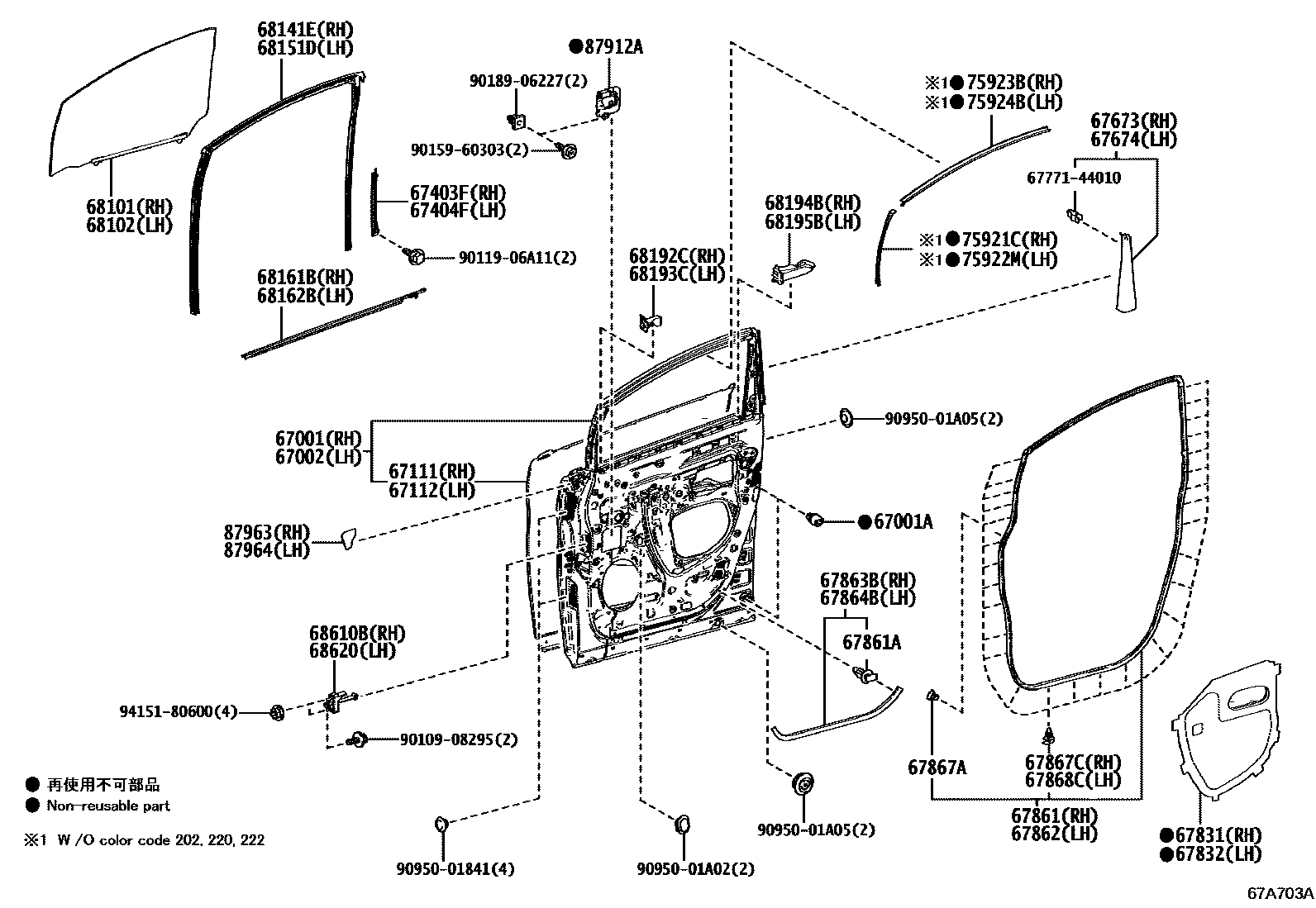

47 parts on this diagram · 2 diagrams in section
