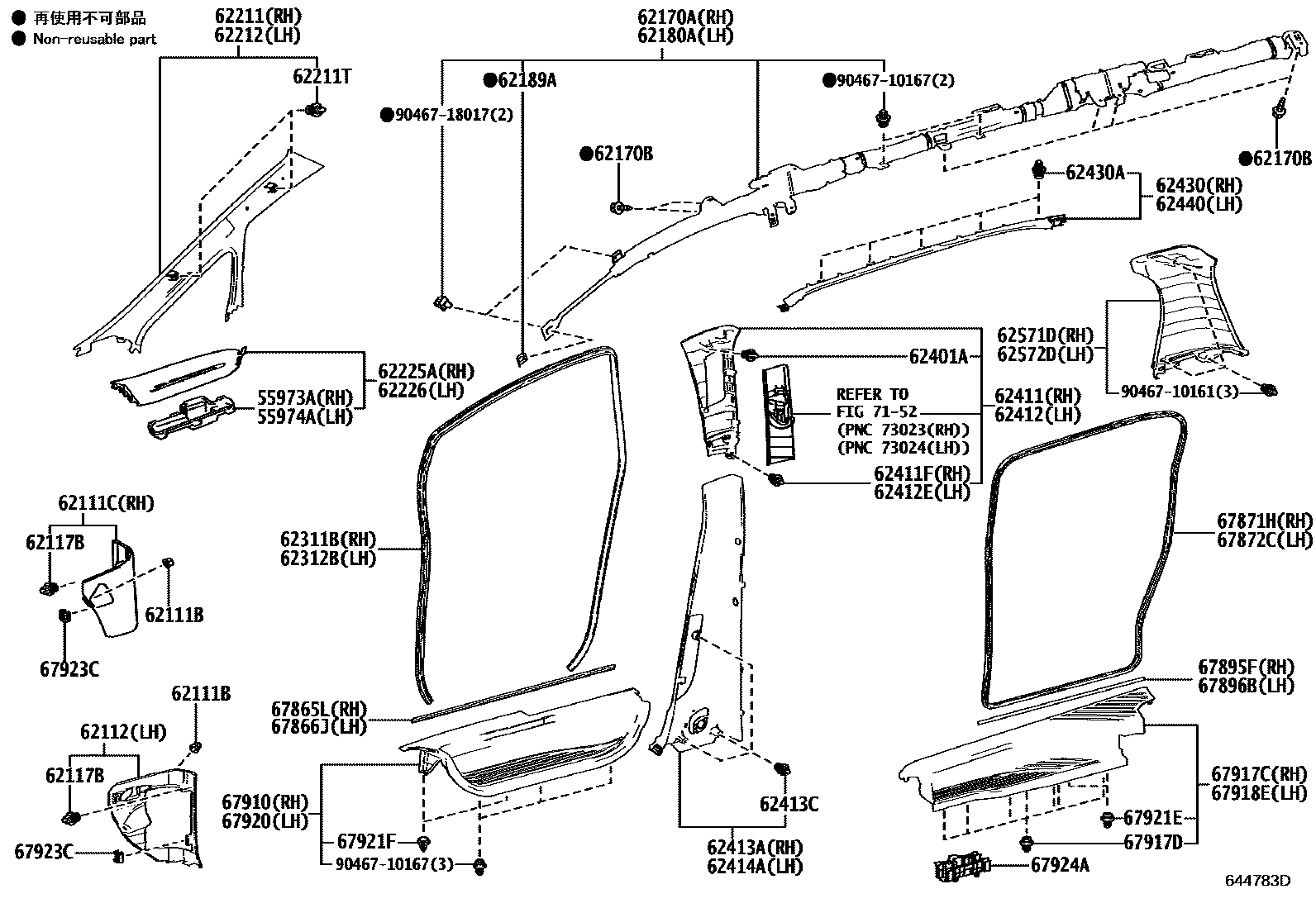

INSIDE TRIM BOARD

0001 1 0002 1RH SIDE 0003 1LH SIDE 0004 1RH SIDE 0005 1LH SIDE

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-58020iAYH36,GGH31202001

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-58020iAYH36,GGH31202001

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147iAYH36,GGH31202001

62111CBOARD, COWL SIDE TRIM, RH

main62111-58070-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

62112BOARD, COWL SIDE TRIM, LH

main62112-58100-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161iAYH36,GGH31202001

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-58030iAYH36,GGH31..V202001

main62170-58040iAYH36,GGH31..X202002

62170BBOLT, W/WASHER

main90119-06869iAYH36,GGH31202001

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-58030iAYH36,GGH31..V202001

main62180-58040iAYH36,GGH31..X202002

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iAYH36,GGH31202001

62211GARNISH, FRONT PILLAR, RH

main62211-58080-C2iAYH36,GGH31..V202001

CHARCOAL,TRIM0#,2#

main62211-58090-C0iAYH36,GGH31..X202002

BLACK,TRIM0#,2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iAYH36,GGH31202001

62212GARNISH, FRONT PILLAR, LH

main62212-58080-C2iAYH36,GGH31..V202001

CHARCOAL,TRIM0#,2#

main62212-58090-C0iAYH36,GGH31..X202002

BLACK,TRIM0#,2#

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-58050-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-58050-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-58030iAYH36,GGH31202001

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-58030iAYH36,GGH31202001

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10188iAYH36,GGH31202001

62411GARNISH, CENTER PILLAR, RH

main62410-58061-C3iAYH36,GGH31..V202001

BLACK,TRIM0#,2#

sub62410-58061

main62410-58070-C0iAYH36,GGH31..X202002

BLACK,TRIM0#,2#

62411FCLIP, CENTER PILLAR GARNISH, RH

main90467-10161iAYH36,GGH31202001

62412GARNISH, CENTER PILLAR, LH

main62420-58061-C2iAYH36,GGH31..V202001

BLACK,TRIM0#,2#

sub62420-58061

main62420-58090-C0iAYH36,GGH31..X202002

BLACK,TRIM0#,2#

62412ECLIP, CENTER PILLAR GARNISH, LH

main90467-10161iAYH36,GGH31202001

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-58030-C0iAYH36,GGH31..V202001

BLACK,TRIM0#,2#

main62413-58040-C0iAYH36,GGH31..X202002

BLACK,TRIM0#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAYH36,GGH31202001

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-58030-C0iAYH36,GGH31..V202001

BLACK,TRIM0#,2#

main62414-58050-C0iAYH36,GGH31..X202002

BLACK,TRIM0#,2#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-58020-C1iAYH36,GGH31202001

BLACK,TRIM0#,2#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-10167iAYH36,GGH31202001

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-58020-C1iAYH36,GGH31202001

BLACK,TRIM0#,2#

62571DGARNISH, QUARTER LOCK PILLAR, RH

main62550-58120-C2iAYH36,GGH31202001

BLACK,TRIM0#,2#

62572DGARNISH, QUARTER LOCK PILLAR, LH

main62560-58120-C2iAYH36,GGH31202001

BLACK,TRIM0#,2#

67865LWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-58100iAYH36,GGH31202001

67866JWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-58080iAYH36,GGH31202001

67871HWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-58050iAYH36,GGH31202001

67872CWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-58050iAYH36,GGH31202001

67895FWEATHERSTRIP, SLIDE DOOR, NO.3 RH

main67895-58010iGGH31;AYH36..RHD202001

TAIWAN SPEC

main67895-58020iAYH36..LHD202001

67896BWEATHERSTRIP, SLIDE DOOR, NO.3 LH

main67896-58010iGGH31;AYH36..RHD202001

TAIWAN SPEC

main67896-58020iAYH36..LHD202001

67910PLATE ASSY, DOOR SCUFF, RH

main67910-58300-C0iAYH36,GGH31..RHD202001-202004

BLACK,TRIM0#,2#

sub67910-V2070

main67910-58310-C0iGGH31..LHD202001-202004

BLACK,TRIM0#,2#

sub67910-V2080

main67910-58310-C0iGGH31..LHD202001-202004

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67910-V2080

main67910-V2070-C0iAYH36,GGH31..RHD202005

BLACK,TRIM0#,2#

main67910-V2080-C0iGGH31..LHD202005

BLACK,TRIM0#,2#

sub67911-V2010

sub67927-58140

main67910-V2080-C0iGGH31..LHD202005

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67911-V2010

sub67927-58140

67917CPLATE, REAR DOOR SCUFF, RH

main67930-58060-C0iGGH31;AYH36..RHD202001-202004

BLACK,TRIM0#,2#

sub67930-V2060

main67930-58060-C0iGGH31;AYH36..RHD202001-202004

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67930-V2060

main67930-V2060-C0iGGH31;AYH36..RHD202005

BLACK,TRIM0#,2#

sub67915-V2010

sub67927-58140

main67930-V2060-C0iGGH31;AYH36..RHD202005

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67915-V2010

sub67927-58140

67917DCLIP, REAR DOOR SCUFF PLATE

main62217-13010iGGH31;AYH36..RHD202001

TAIWAN SPEC

67918EPLATE, REAR DOOR SCUFF, LH

main67940-58060-C0iGGH31;AYH36..RHD202001-202004

BLACK,TRIM0#,2#

sub67940-V2060

main67940-58060-C0iGGH31;AYH36..RHD202001-202004

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67940-V2060

main67940-V2060-C0iGGH31;AYH36..RHD202005

BLACK,TRIM0#,2#

sub67916-V2010

sub67927-58140

main67940-V2060-C0iGGH31;AYH36..RHD202005

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67916-V2010

sub67927-58140

67920PLATE ASSY, DOOR SCUFF, LH

main67920-58340-C0iAYH36,GGH31..RHD202001-202004

BLACK,TRIM0#,2#

sub67920-V2070

main67920-58350-C0iGGH31..LHD202001-202004

BLACK,TRIM0#,2#

sub67920-V2080

main67920-58350-C0iGGH31..LHD202001-202004

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67920-V2080

main67920-V2070-C0iAYH36,GGH31..RHD202005

BLACK,TRIM0#,2#

sub67912-V2010

sub67927-58140

main67920-V2080-C0iGGH31..LHD202005

BLACK,TRIM0#,2#

sub67912-V2010

sub67927-58140

main67920-V2080-C0iGGH31..LHD202005

TAIWAN SPEC,BLACK,TRIM0#,2#

sub67912-V2010

sub67927-58140

67921ERETAINER, REAR DOOR SCUFF PLATE

main67771-28150iGGH31;AYH36..RHD202001

TAIWAN SPEC

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67771-58030iGGH31;AYH36..RHD202001

TAIWAN SPEC

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-28020iAYH36,GGH31202001

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-28010iAYH36,GGH31202001

7152

9046710161

main90467-10161

9046710167

main90467-10167

9046718017

main90467-18017

49 parts on this diagram · 5 diagrams in section
