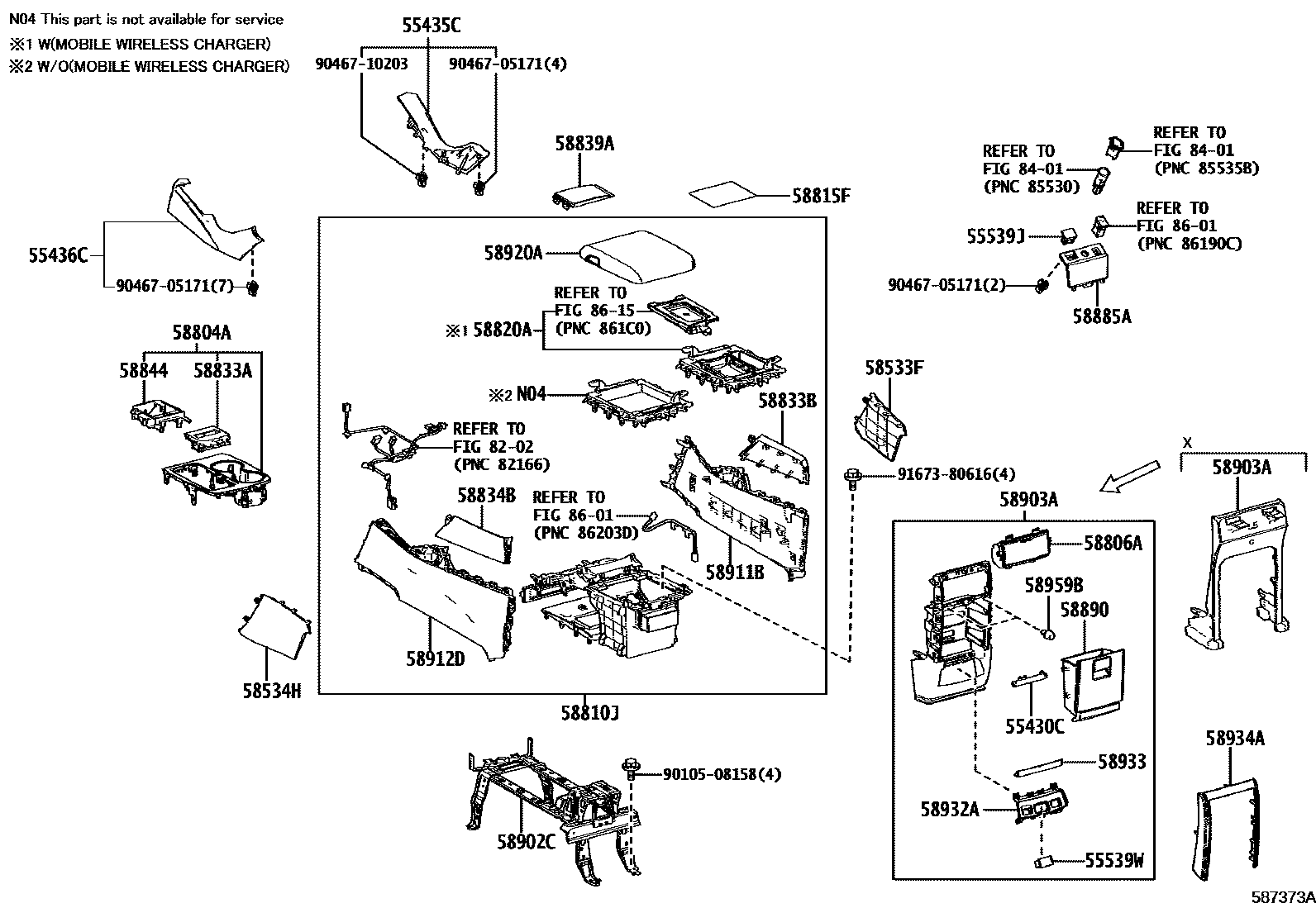

CONSOLE BOX & BRACKET
55430CDAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL
55435CPANEL, INSTRUMENT PANEL FINISH, END RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
55539JCOVER, SPARE SWITCH HOLE
BLACK,TRIM0#,2#
55539WCOVER, SPARE SWITCH HOLE
BLACK,TRIM0#,2#
58533FCOVER, FLOOR CARPET, CENTER RH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58534HCOVER, FLOOR CARPET, CENTER LH
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58806APOCKET SUB-ASSY, CONSOLE BOX
58810JBOX ASSY, CONSOLE
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58815FCARPET, CONSOLE BOX
58820ABOX ASSY, CONSOLE COMPARTMENT
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK,TRIM0#,2#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM0#,2#
58839ACOVER, CONSOLE BOX HOLE
58844BEZEL, CONSOLE BOX
58885APANEL, EQUIPMENT SET
BLACK,TRIM0#,2#
58890BOX ASSY, TRASH
BLACK,TRIM0#,2#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58911BPANEL, BOX, NO.1
BLACK,TRIM0#,2#
58912DPANEL, BOX, NO.2
BLACK,TRIM0#,2#
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM0#,2#
58932AGARNISH, REAR CONSOLE BOX
BLACK,TRIM0#,2#
58933GARNISH, CONSOLE REAR END PANEL
58934AGARNISH, CONSOLE REAR END PANEL, NO.2
58959BCUSHION, CONSOLE COMPARTMENT DOOR
8202
8401
8601
8615
9010508158
main90105-08158
9046705171
main90467-05171
9046710203
main90467-10203
9167380616
main91673-80616
36 parts on this diagram · 3 diagrams in section
