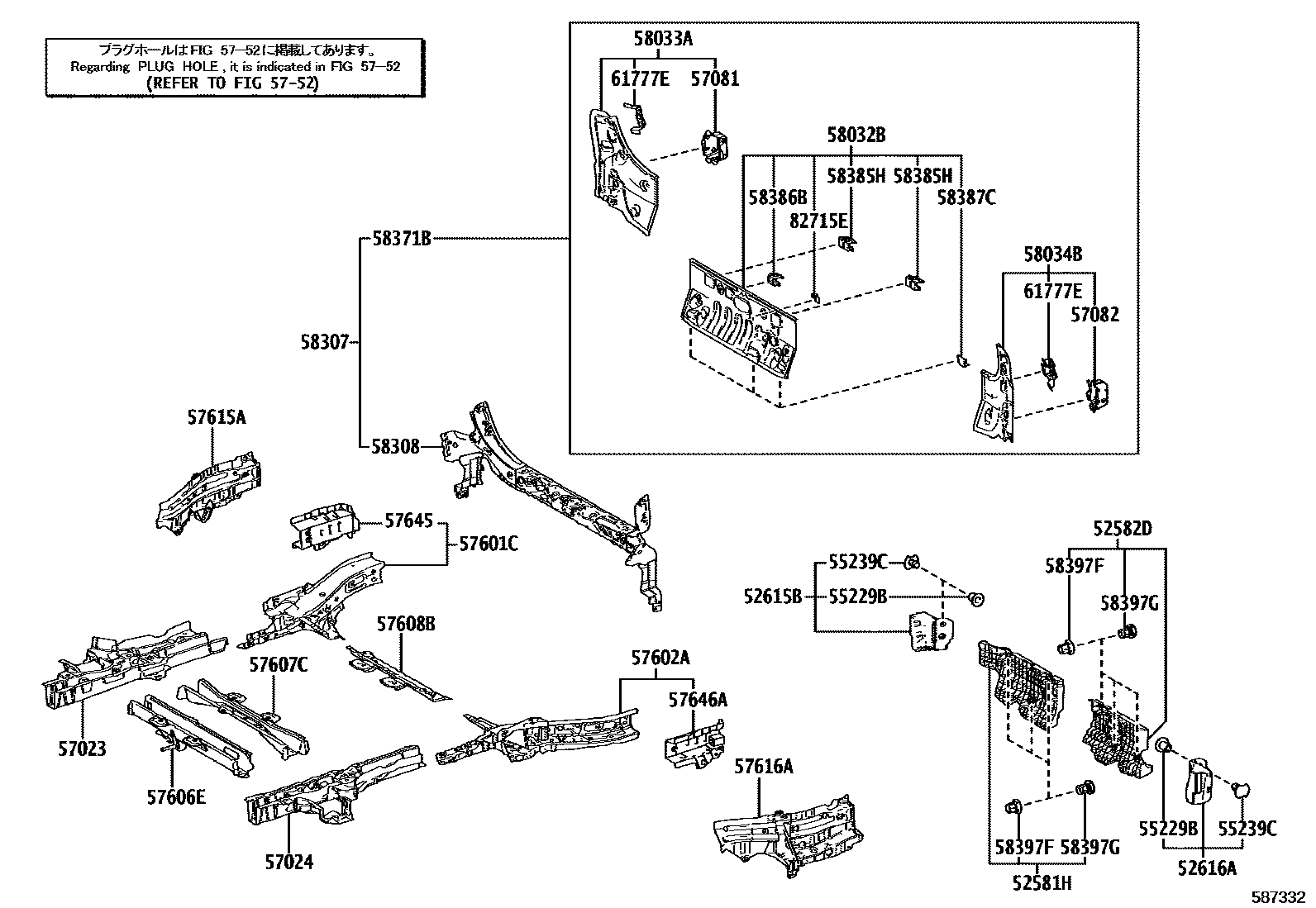

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1FLOOR MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR PANEL 0004 1FLOOR PANEL

52581HPROTECTOR, REAR BUMPER, RH

main52581-58021iAYH36..LHD202001-202304

TAIWAN SPEC

52582DPROTECTOR, REAR BUMPER, LH

main52582-58021iAYH36..LHD202001-202304

TAIWAN SPEC

52615BABSORBER, REAR BUMPER ENERGY, RH

main52615-58030iAYH36..LHD202001-202304

TAIWAN SPEC

52616AABSORBER, REAR BUMPER ENERGY, LH

main52616-58030iAYH36..LHD202001-202304

TAIWAN SPEC

55229BPLATE, DASH PANEL INSULATOR, NO.4

main55229-48010×2iAYH36..LHD202001-202304

TAIWAN SPEC

55239CPLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×2iAYH36..LHD202001-202304

TAIWAN SPEC

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-58050iAYH36,GGH31202001

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-58050iAYH36,GGH31202001

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57081-58030iAYH36,GGH31202001

57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main57082-58030iAYH36,GGH31202001

5752HOLE PLUG

→ Go to FIG 57-52

57601CMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-58080iAYH36,GGH31202001

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-58110iAYH36,GGH31202001

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-58110iAYH36,GGH31202001

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-58100iAYH36,GGH31202001

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-58130iAYH36,GGH31202001

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57061-58010iAYH36,GGH31202001

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57062-58010iGGH31202001

main57062-58020iAYH36202001

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-58010iAYH36,GGH31202001

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-58030iAYH36,GGH31202001

58032BPANEL SUB-ASSY, REAR FLOOR, CENTER

main58032-58010iAYH36,GGH31202001

58033AREINFORCE SUB-ASSY, BODY LOWER BACK, RH

main58033-58010iAYH36,GGH31202001

58034BREINFORCE SUB-ASSY, BODY LOWER BACK, LH

main58034-58010iAYH36,GGH31202001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-58070iAYH36,GGH31202001

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-58010iAYH36,GGH31202001

58371BPANEL, BODY LOWER BACK, OUTER

main58302-58020iAYH36,GGH31202001

58385HBRACKET, REAR BUMPER COVER, NO.1

main58386-12020×2iAYH36,GGH31202001

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-28050iAYH36,GGH31202001

58387CPLATE, REAR FLOOR FINISH

main58348-58020×3iAYH36,GGH31202001

58397FCLIP, NO.1(FOR REAR UNDER COVER)

main90467-17026-A0×6iAYH36..LHD202001-202304

TAIWAN SPEC,SUPER WHITE 2

58397GCLIP, NO.2(FOR REAR UNDER COVER)

main90467-17027-C0×6iAYH36..LHD202001-202304

TAIWAN SPEC,BLACK

61777ERETAINER, LOWER BACK PANEL

main61777-58030×2iAYH36,GGH31202001

82715EBRACKET, WIRING HARNESS CLAMP

main82715-28J10iAYH36,GGH31202001

33 parts on this diagram · 4 diagrams in section
