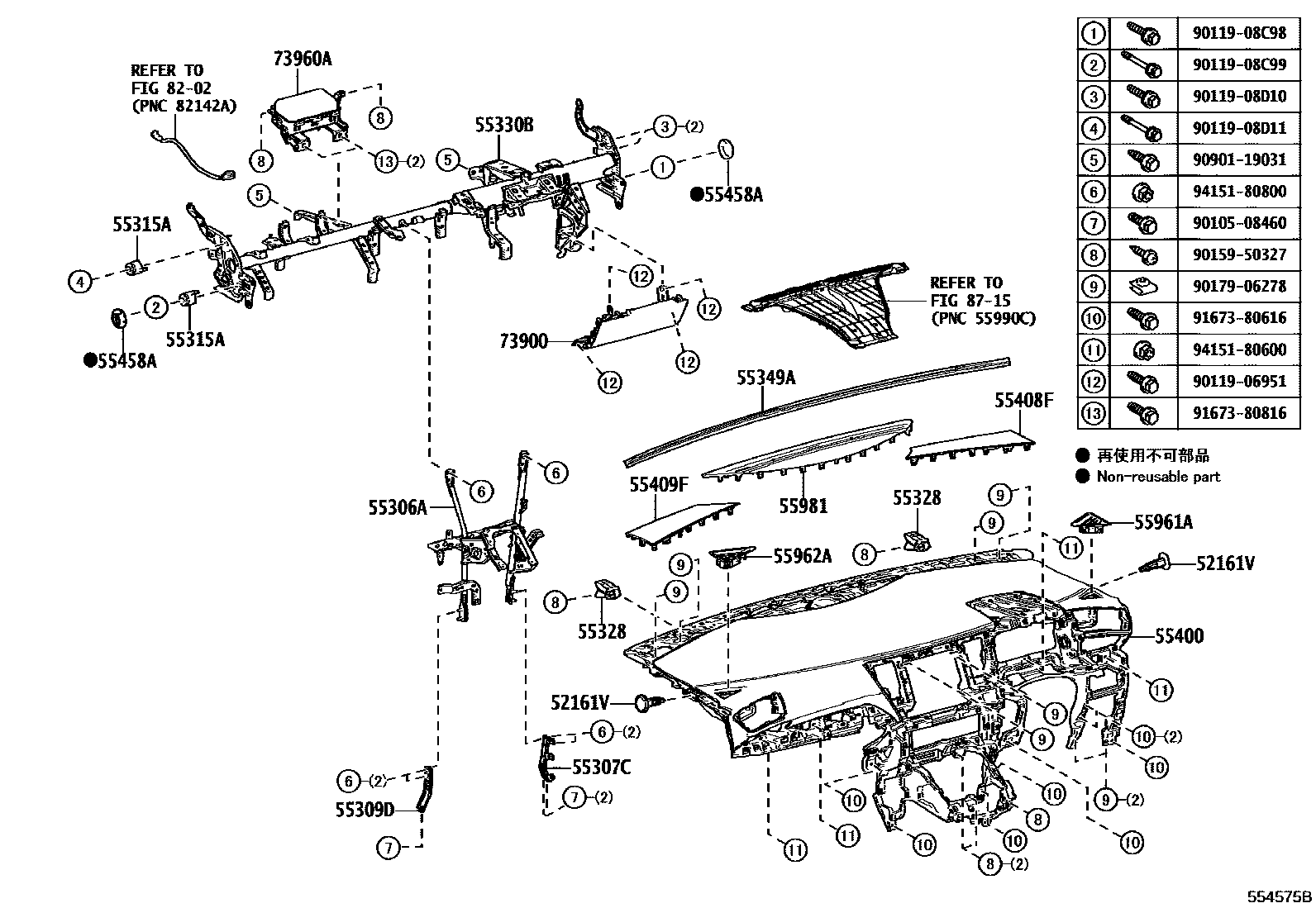

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iAYH36,GGH31202001

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-58050iAYH36,GGH31..RHD202001

main55306-58060iAYH36,GGH31..LHD202001

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-58020iAYH36,GGH31..RHD202001

main55307-58030iAYH36,GGH31..LHD202001

55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-58010iAYH36,GGH31..RHD202001

main55309-58020iAYH36,GGH31..LHD202001

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iAYH36,GGH31202001

55328PIN, INSTRUMENT PANEL, NO.1

main55328-28130×2iAYH36,GGH31202001

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-58052iAYH36,GGH31..RHD202001

main55330-58063iAYH36,GGH31..LHD202001

55349ACUSHION, INSTRUMENT PANEL

main55349-58050iAYH36,GGH31..RHD202001

main55349-58071iAYH36,GGH31..LHD202001

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-58031-C0iAYH36,GGH31..RHD202001

BLACK,TRIM0#,2#

main55400-58041-C0iAYH36,GGH31..LHD202001

BLACK,TRIM0#,2#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-58030-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-58020-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×2iAYH36,GGH31202001

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-58040-C0iAYH36,GGH31..RHD202001

BLACK,TRIM0#,2#

main55962-58050-C0iAYH36,GGH31..LHD202001

BLACK,TRIM0#,2#

55962ANOZZLE, SIDE DEFROSTER, LH

main55961-58050-C0iAYH36,GGH31..LHD202001

BLACK,TRIM0#,2#

main55962-58040-C0iAYH36,GGH31..RHD202001

BLACK,TRIM0#,2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-58021-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-58030-C0iAYH36,GGH31..RHD202001

BLACK,TRIM0#,2#

main73900-58040-C0iAYH36,GGH31..LHD202001

BLACK,TRIM0#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-58030iAYH36,GGH31202001

8202WIRING & CLAMP

→ Go to FIG 82-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9010508460

main90105-08460

9011906951

main90119-06951

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D10

main90119-08D10

9011908D11

main90119-08D11

9015950327

main90159-50327

9017906278

main90179-06278

9090119031

main90901-19031

9167380616

main91673-80616

9167380816

main91673-80816

9415180600

main94151-80600

9415180800

main94151-80800

32 parts on this diagram · 8 diagrams in section
