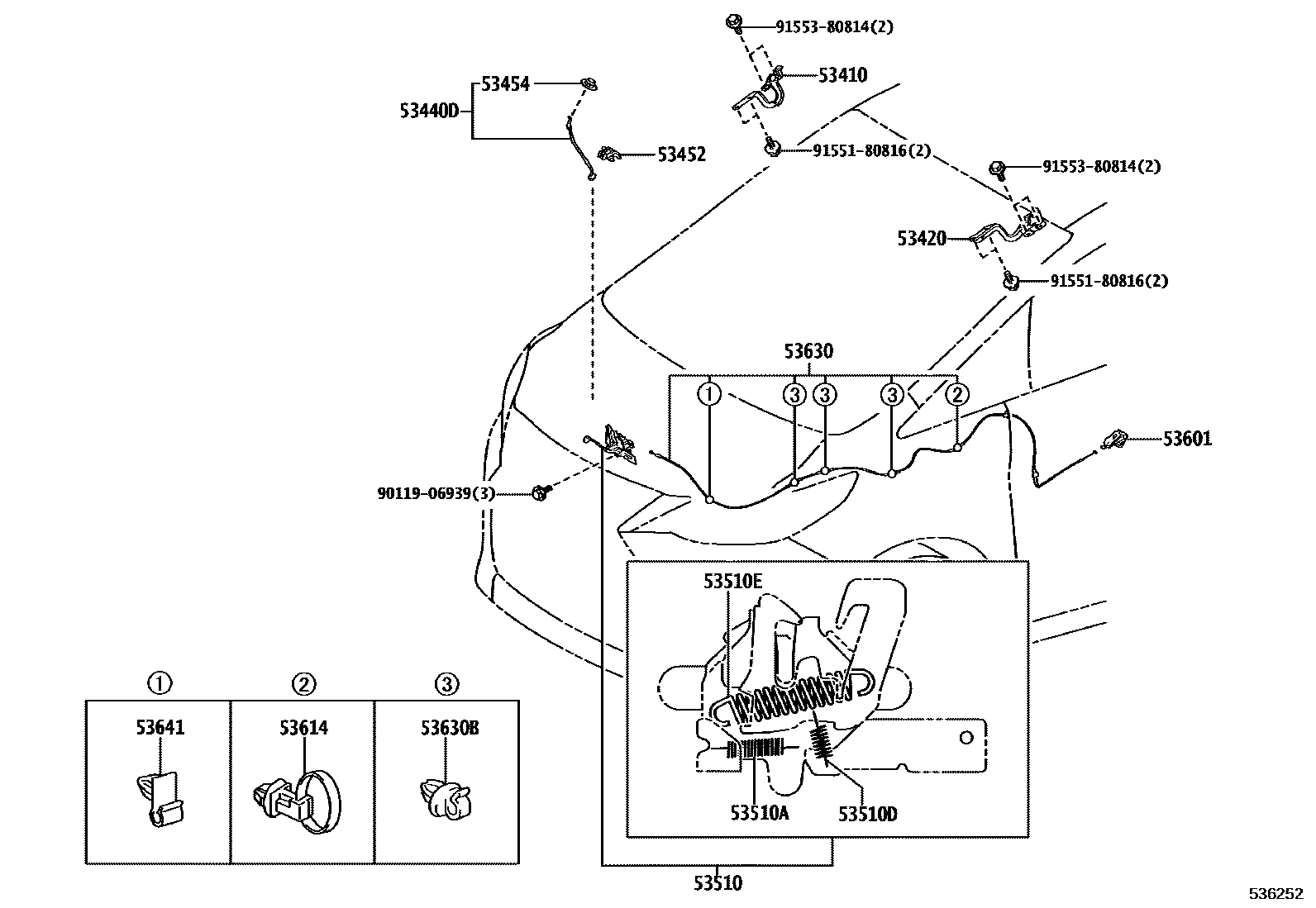

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-58060iAYH36,GGH31202001

53420HINGE ASSY, HOOD, LH

main53420-58080iAYH36,GGH31202001

53440DSUPPORT ASSY, HOOD

main53440-58050iAYH36,GGH31202001

53452HOLDER, HOOD STAY

main53452-58010iAYH36,GGH31202001

53454CLIP, HOOD SUPPORT ROD

main53454-52020iAYH36,GGH31202001

53510LOCK ASSY, HOOD

main53510-58070iAYH36,GGH31..RHD202001

main53510-58100iAYH36,GGH31..LHD202001

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAYH36,GGH31202001

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAYH36,GGH31202001

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAYH36,GGH31202001

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C1iAYH36,GGH31202001

BLACK,TRIM0#,2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-3F440iAYH36,GGH31202001

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-58050iAYH36,GGH31..RHD202001

main53630-58060iAYH36,GGH31..LHD202001

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iAYH36,GGH31202001

53641CLAMP, HOOD LOCK CONTROL WIRE

main82711-16820iAYH36,GGH31..RHD202001

main90467-09031iAYH36,GGH31..LHD202001

9011906939

main90119-06939

9155180816

main91551-80816

9155380814

main91553-80814

17 parts on this diagram · 2 diagrams in section
