43211KNUCKLE, STEERING, RH

main43211-78010i202001

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012×2i202001

OD=17,TYPE A:REFER ILLUST.

main90105-17013i202001

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i202001

OD=15,TYPE C:REFER ILLUST.

main90105-17015i202001

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2i202001

43212KNUCKLE, STEERING, LH

main43212-78010i202001

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012×2i202001

OD=17,TYPE A:REFER ILLUST.

main90105-17013i202001

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014i202001

OD=15,TYPE C:REFER ILLUST.

main90105-17015i202001

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2i202001

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-59155i202001

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011i202001

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12346i202001

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2i202001

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-59155i202001

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011i202001

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12346i202001

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2i202001

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28140i202001

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16090i202001

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006i202001

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16090i202001

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28140i202001

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16090i202001

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006i202001

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16090i202001

9046816029

main90468-16029

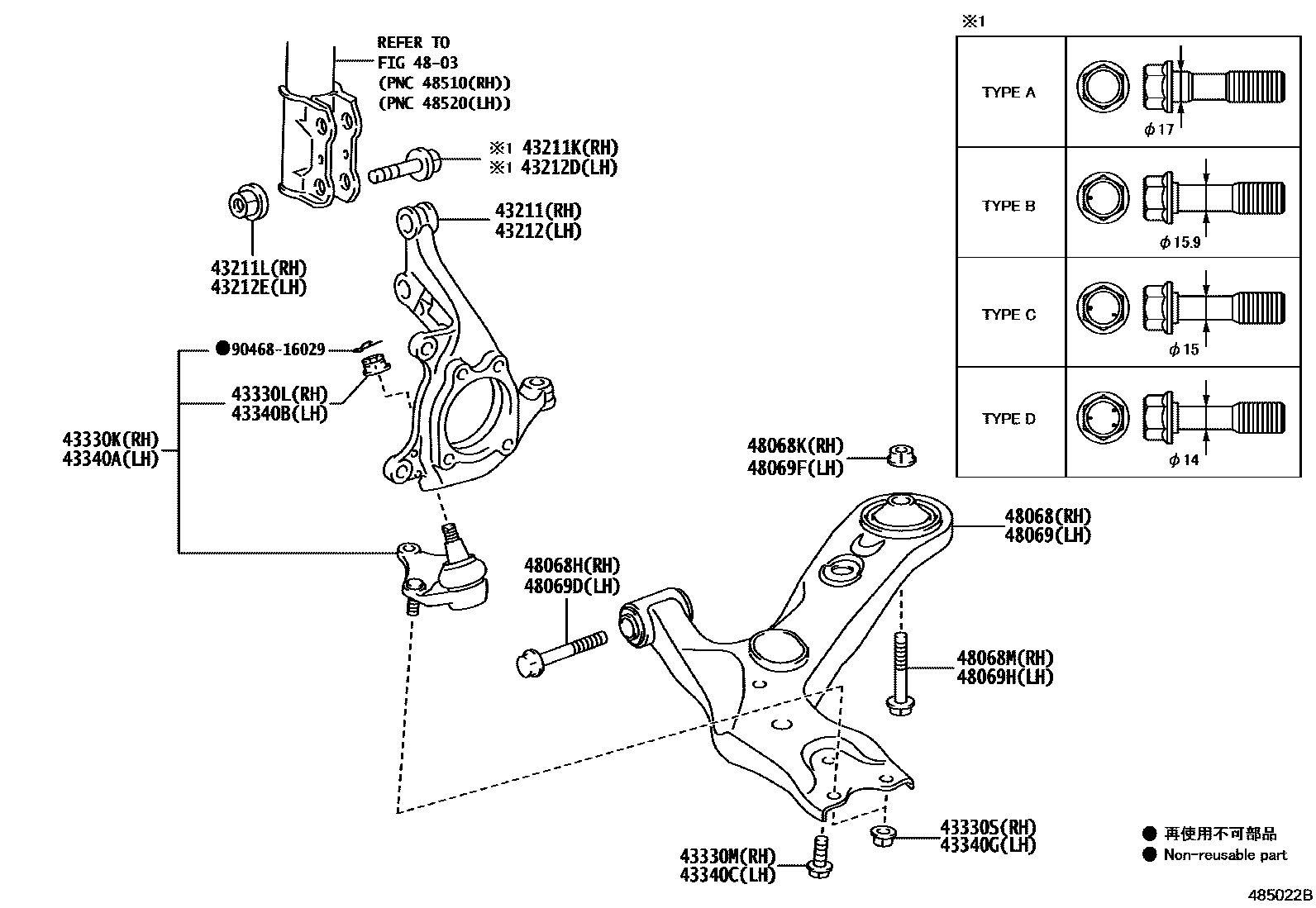

FRONT AXLE ARM & STEERING KNUCKLE
