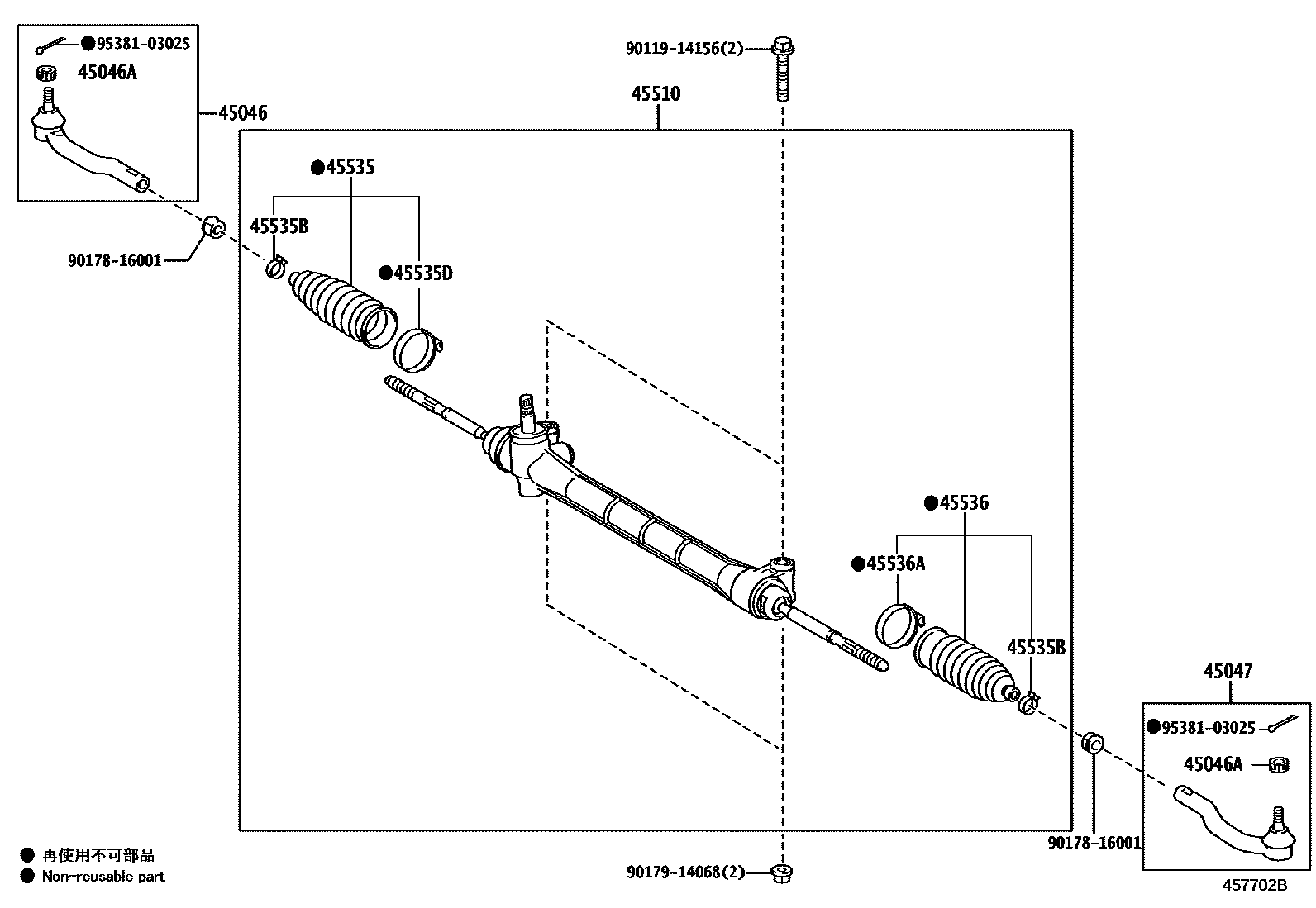

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29515iAYH36,GGH31202001

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAYH36,GGH31202001

45047END SUB-ASSY, TIE ROD, LH

main45047-29195iAYH36,GGH31202001

45510GEAR ASSY, STEERING

main45510-58050iAYH36..RHD202001

main45510-58060iGGH31..RHD202001

main45510-58070iAYH36..LHD202001

main45510-58080iGGH31..LHD202001

45535BOOT, STEERING RACK, NO.1

main45535-59075iAYH36,GGH31202001

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iAYH36,GGH31202001

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-48020iAYH36,GGH31202001

45536BOOT, STEERING RACK, NO.2

main45535-59075iAYH36,GGH31202001

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-48020iAYH36,GGH31202001

9011914156

main90119-14156

9017816001

main90178-16001

9017914068

main90179-14068

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
