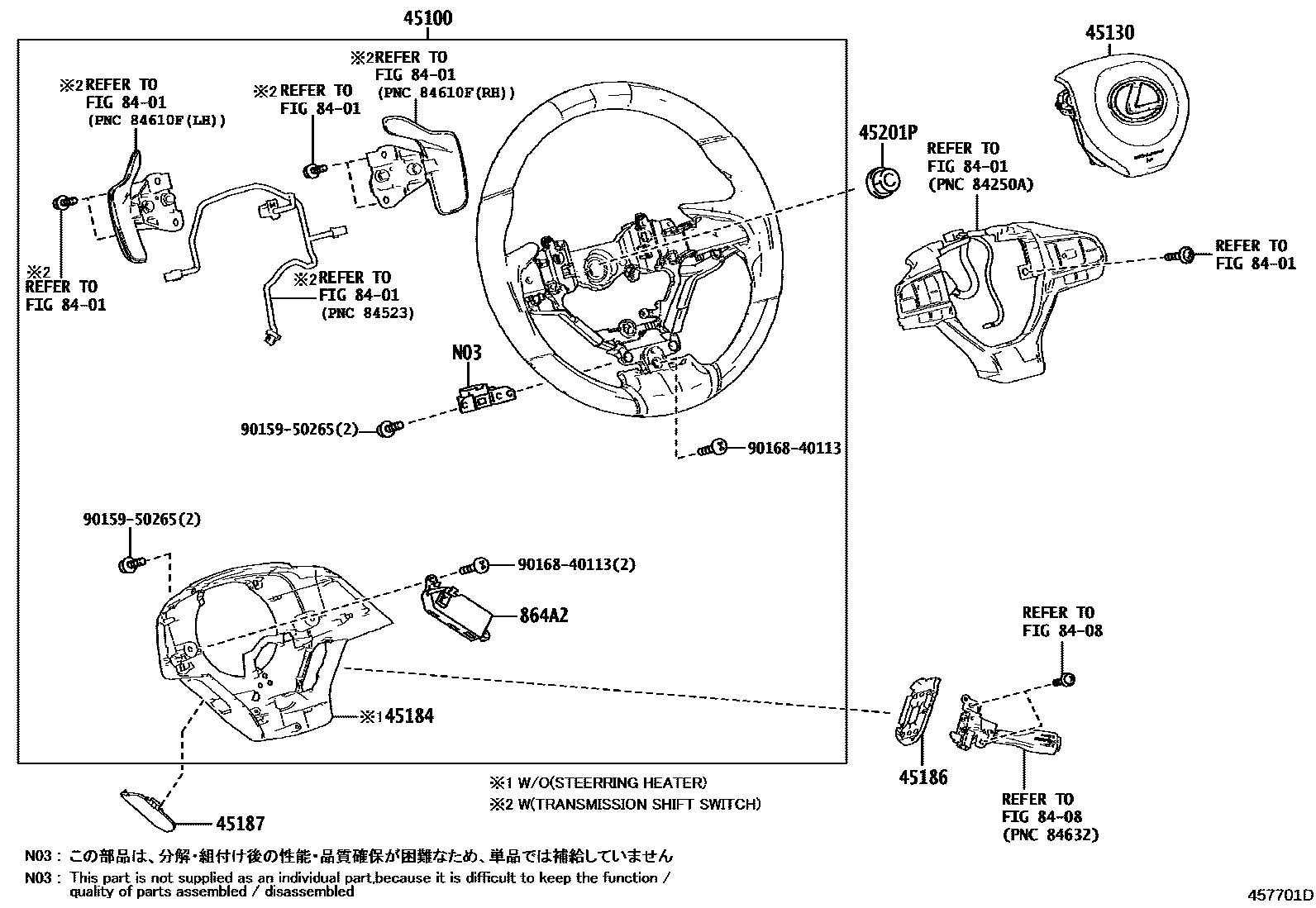

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-30E71-22iAYH36..LHD202111

3-SPOKE,WOOD&LEATHER,BLACK/DK.GRAY/BLACK,TRIM0#,2#

main45100-48581-46iGGH31..V;AYH36..RHD..V202001

3-SPOKE,WOOD&LEATHER,BLACK,TRIM0#,2#

main45100-48621-43iGGH31..X;AYH36..RHD..X202002

3-SPOKE,WOOD&LEATHER,BLACK,TRIM0#,2#

45130BUTTON ASSY, HORN

main45130-58050-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-48100-C0iGGH31..X;AYH36..RHD..X202002

BLACK,TRIM0#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-48060-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-48050-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

45201PNUT, STEERING WHEEL SET

main90179-12071iAYH36,GGH31202001

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

864A2COMPUTER, STEERING VIBRATION

main864A1-48011iAYH36,GGH31..V202001

main864A2-48011iGGH31..X;AYH36..RHD..X202002

9015950265

main90159-50265

9016840113

main90168-40113

11 parts on this diagram · 1 diagram in section
