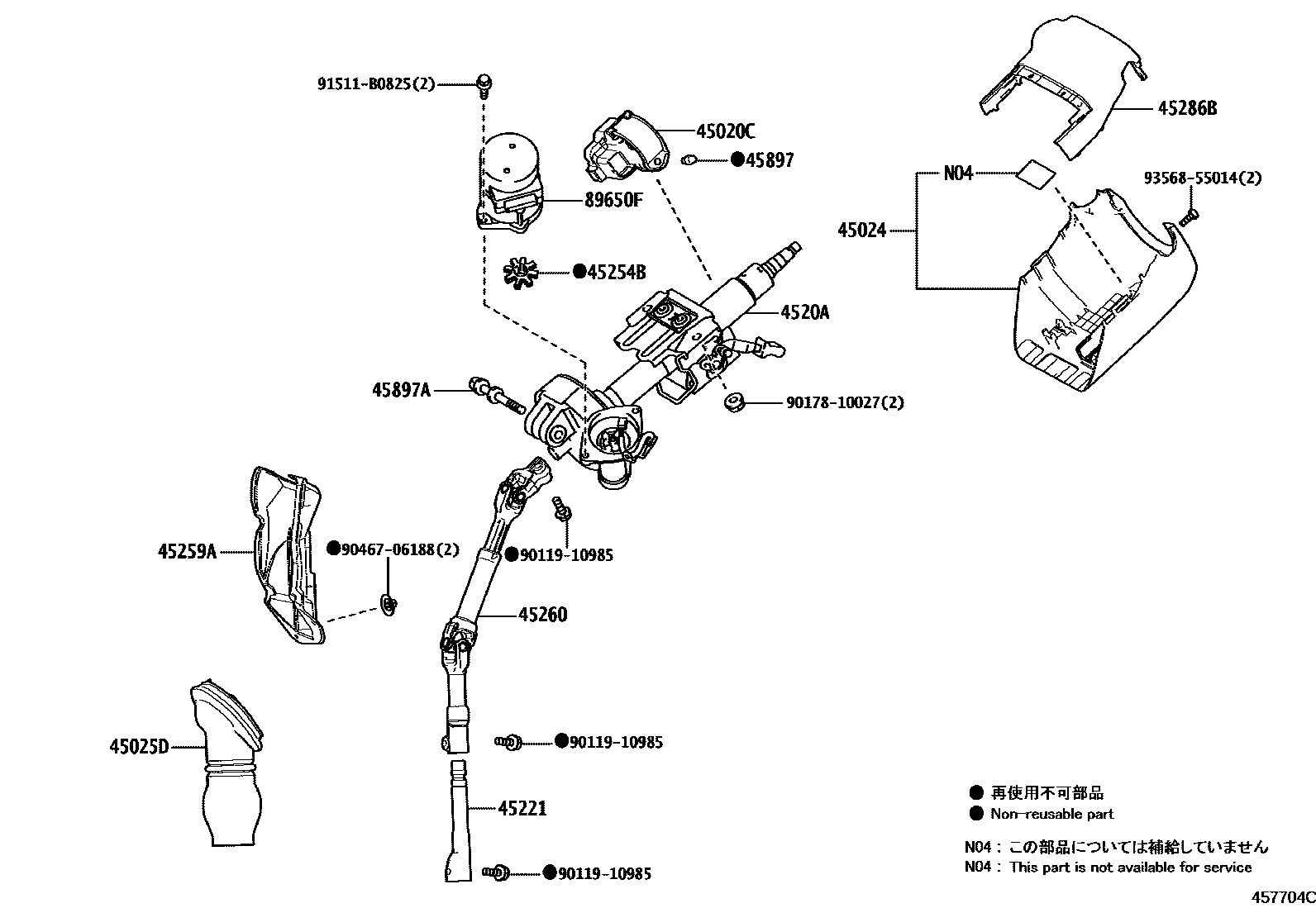

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iAYH36,GGH31202001

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-58010-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-58030iGGH31..RHD202001

main45025-58040iGGH31..LHD202001

main45025-58050iAYH36..RHD202001

main45025-58060iAYH36..LHD202001

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-58030iAYH36,GGH31..RHD202001

main4520A-58040iAYH36,GGH31..LHD202001

45221SHAFT, STEERING INTERMEDIATE

main45221-58040iGGH31202001

main45221-58050iAYH36202001

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iAYH36,GGH31202001

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-58040iGGH31..RHD202001

main45259-58060iAYH36..RHD202001

main45259-58070iAYH36,GGH31..LHD202001

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-58070iAYH36,GGH31..RHD202001

main45260-58080iAYH36,GGH31..LHD202001

45286BCOVER, STEERING COLUMN, UPR

main45286-58020-C0iAYH36,GGH31202001

BLACK,TRIM0#,2#

45897BOLT, STEERING LOCK SET

main45897-12020iAYH36,GGH31202001

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iAYH36,GGH31202001

89650FCOMPUTER ASSY, POWER STEERING W/MOTOR

main89650-58220iAYH36,GGH31..RHD202001

main89650-58230iAYH36,GGH31..LHD202001

9011910985

main90119-10985

9017810027

main90178-10027

9046706188

main90467-06188

91511B0825

main91511-B0825

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
