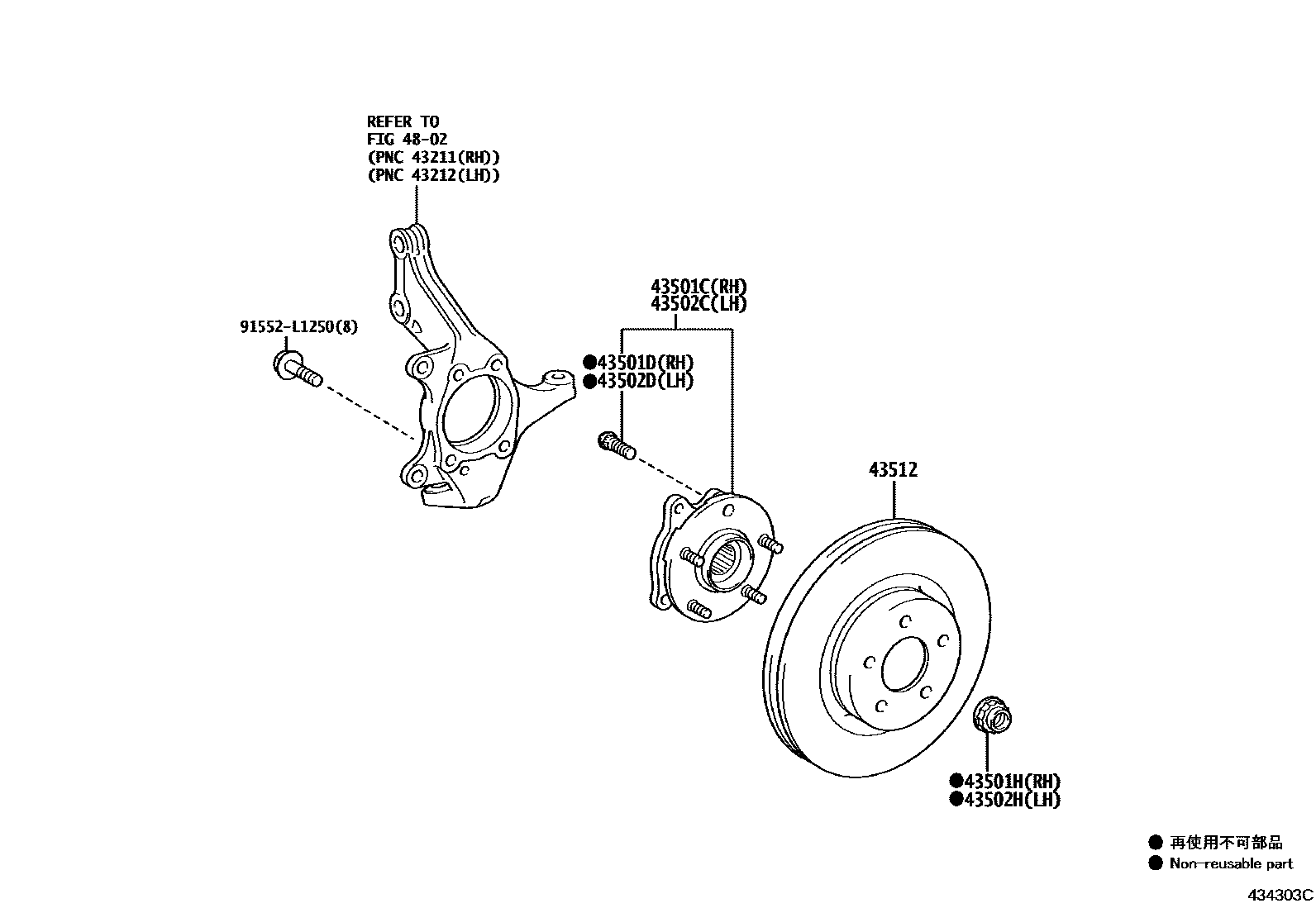

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-28030iAYH36,GGH31202001

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAYH36,GGH31202001

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAYH36,GGH31202001

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-28030iAYH36,GGH31202001

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAYH36,GGH31202001

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAYH36,GGH31202001

43512DISC, FRONT

main43512-28190×2iAYH36..RHD;GGH31..6FC202001

main43512-48110×2iAYH36..LHD;GGH31..8FC202001

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

9 parts on this diagram · 1 diagram in section
