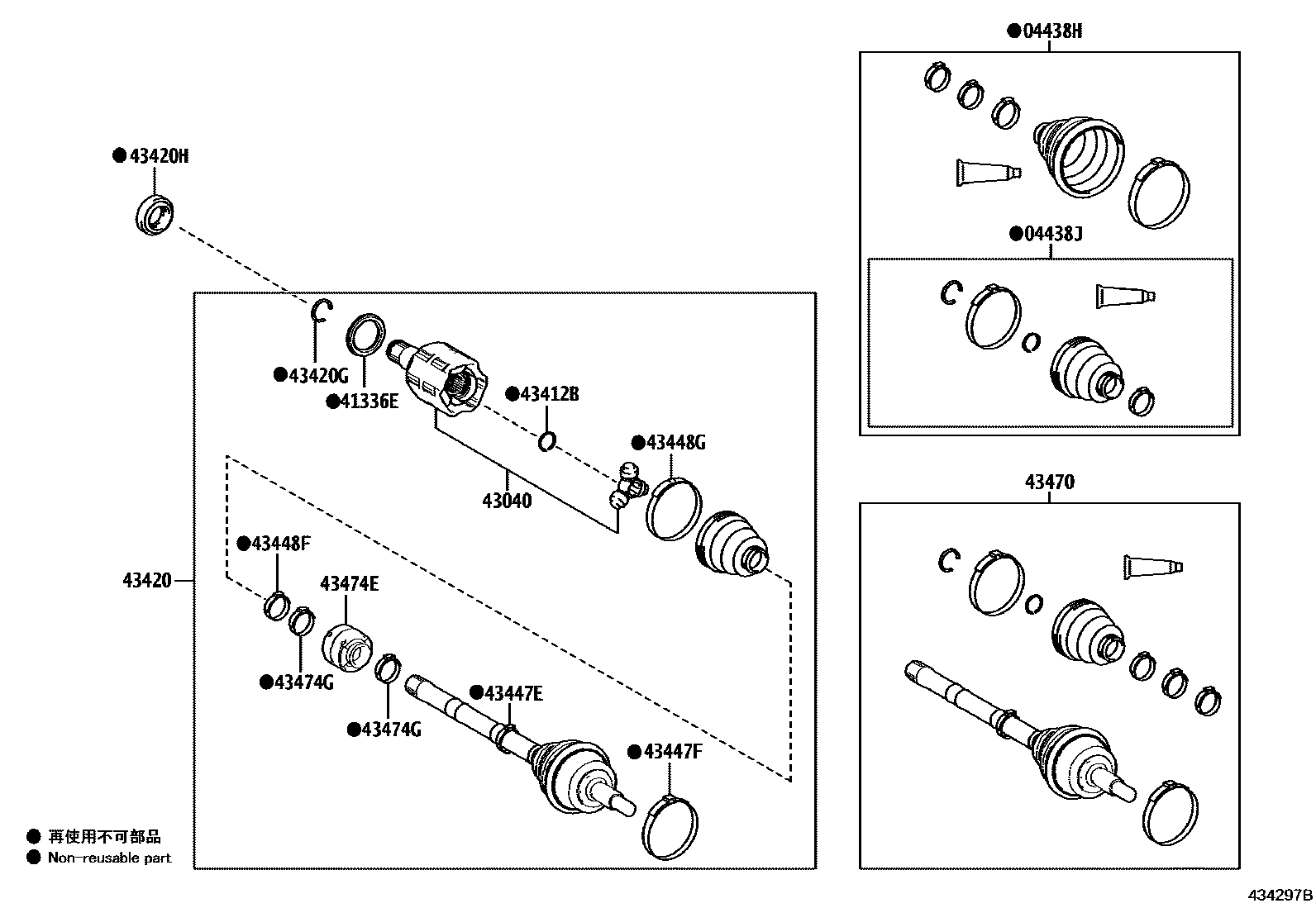

FRONT DRIVE SHAFT

0001 1LH 0002 1LH 0003 1LH 0004 1RH 0005 1RH 0006 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-58085iAYH36202001

main04428-58093iGGH31..6FC202001

main04428-58110iGGH31..8FC202001

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-58061iGGH31..6FC202001

main04438-58070iGGH31..8FC202001

main04438-78011iAYH36202001

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-78030iGGH31..6FC202001

main41336-78040iAYH36202001

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-58020iGGH31..6FC202001

main43040-58030iAYH36202001

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-58030iGGH31202001

main43425-78020iAYH36202001

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-58041iGGH31..6FC202001

main43420-58051iAYH36202001

main43420-58061iGGH31..8FC202001

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-78050iAYH36,GGH31202001

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50059iGGH31..8FC202006

AISIN AW:REFER 35-01

main90311-50063iAYH36202001

main90311-50064iGGH31..6FC202001

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42346-24020iAYH36,GGH31202001

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-58140iAYH36,GGH31202001

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-58030iGGH31202001

main42345-78010iAYH36202001

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-58040iGGH31202001

main42345-78020iAYH36202001

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-59858iGGH31..6FC202001

main43470-59867iAYH36202001

main43470-59886iGGH31..8FC202001

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42050iGGH31202001

main43474-58030iAYH36202001

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-58060×2iAYH36;GGH31..8FC202001

main42345-78060×2iGGH31..6FC202001

15 parts on this diagram · 6 diagrams in section
