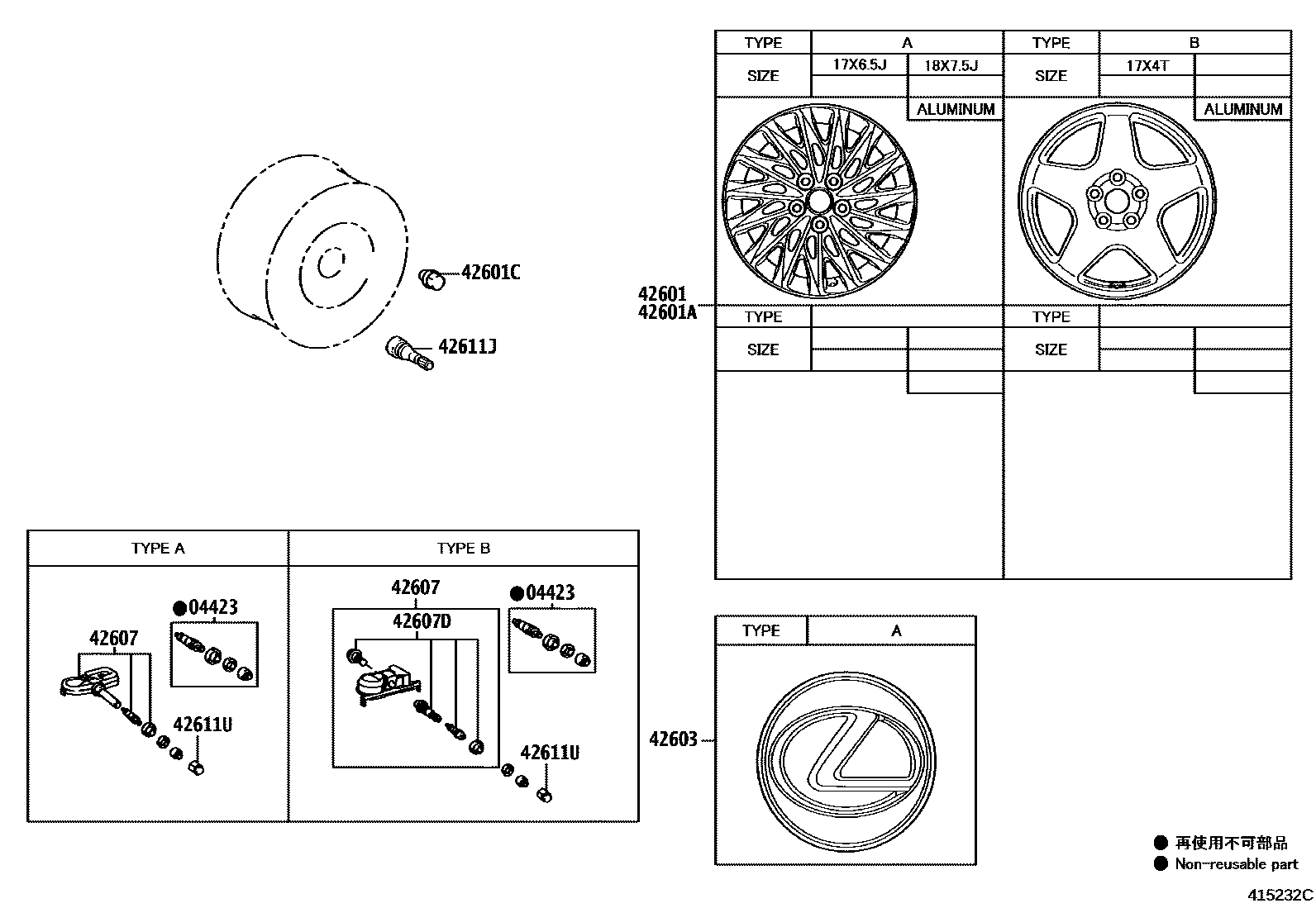

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iAYH36,GGH31202001

42601WHEEL, DISC

main42611-58370×4iGGH31..RHD202001

17X6.5J,#,TYPE A:REFER ILLUST.

main42611-58380×4iGGH31202001

18X7.5J,#,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-58320supersedes 42611-58300iGGH31..RHD..8FC202001

17X4T,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iAYH36,GGH31202001

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50381×4iAYH36,GGH31202001

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48010×4iAYH36..LHD;GGH31..6FC202001-202105

TYPE A:REFER ILLUST.

main42607-48020×4iAYH36..RHD;GGH31..8FC202001-202105

TYPE A:REFER ILLUST.

main42607-53020×4iAYH36..LHD;GGH31..6FC202105

TYPE B:REFER ILLUST.

main42607-53040×4iAYH36..RHD;GGH31..8FC202105

TYPE B:REFER ILLUST.

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044×4iAYH36,GGH31202105

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAYH36,GGH31202001

42611UCAP, TIRE VALVE

main90942-05042×4iAYH36,GGH31202001

9 parts on this diagram · 2 diagrams in section
